9HPZ | pdb_00009hpz

Cryo-EM structure of the wild-type flagellar filament from Roseburia hominis

PDB DOI: https://doi.org/10.2210/pdb9HPZ/pdb
EM Map EMD-52337: EMDB EMDataResource

Classification: STRUCTURAL PROTEIN
Organism(s): Roseburia hominis A2-183
Mutation(s): No

Deposited: 2024-12-16 Released: 2025-12-10
Deposition Author(s): Bell, M.E.W., Koch, I., Hipp, K., Hartmann, M.D., Merino, F., Ley, R.E.
Funding Organization(s): Max Planck Society

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.17 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9HPZ

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of the wild-type flagellar filament from Roseburia hominis

Bell, M.E.W., Ley, R.E.

To be published.

Macromolecule Content

Total Structure Weight: 629.66 kDa
Atom Count: 43,846
Modeled Residue Count: 5,940
Deposited Residue Count: 5,940
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

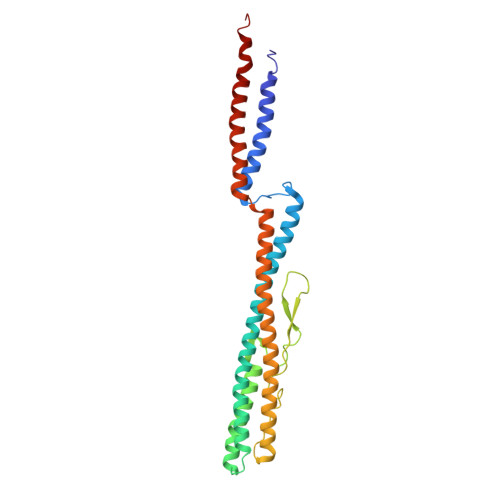

Flagellin	A, B, C, D, E A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V	270	Roseburia hominis A2-183	Mutation(s): 0
UniProt
Find proteins for G2SZK6 (Roseburia hominis (strain DSM 16839 / JCM 17582 / NCIMB 14029 / A2-183)) Explore G2SZK6 Go to UniProtKB: G2SZK6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	G2SZK6
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.17 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	ISOLDE	1.6
RECONSTRUCTION	RELION	4.0

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-10

Deposition Author(s):

Funding Organization	Location	Grant Number
Max Planck Society	Germany	--

Revision History (Full details and data files)

Version 1.0: 2025-12-10
Type: Initial release
