9GHK | pdb_00009ghk

Crystal structure of Fyn SH3 domain/tau 214-220 peptide complex

• PDB DOI: https://doi.org/10.2210/pdb9GHK/pdb

• Classification: SIGNALING PROTEIN
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-08-15 Released: 2025-08-27
• Deposition Author(s): Becker, S.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.42 Å
• R-Value Free:
  0.218 (Depositor), 0.217 (DCC)
• R-Value Work:
  0.178 (Depositor), 0.182 (DCC)
• R-Value Observed:
  0.180 (Depositor)

Starting Model: experimental

Literature

Crystal structure of Fyn SH3 domain/tau 214-220 peptide complex

Becker, S.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A2B1 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - A2

Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 15.29 kDa
• Atom Count: 1,170
• Modeled Residue Count: 126
• Deposited Residue Count: 138
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

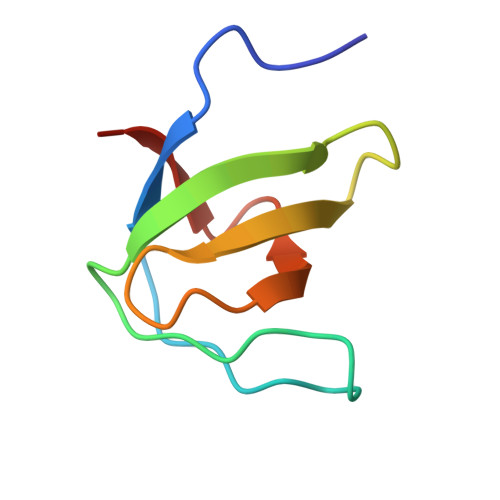

Isoform 2 of Tyrosine-protein kinase Fyn	A, B	64	Homo sapiens	Mutation(s): 0  Gene Names: FYN EC: 2.7.10.2
UniProt & NIH Common Fund Data Resources
Find proteins for P06241 (Homo sapiens) Explore P06241  Go to UniProtKB:  P06241
PHAROS:  P06241 GTEx:  ENSG00000010810

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

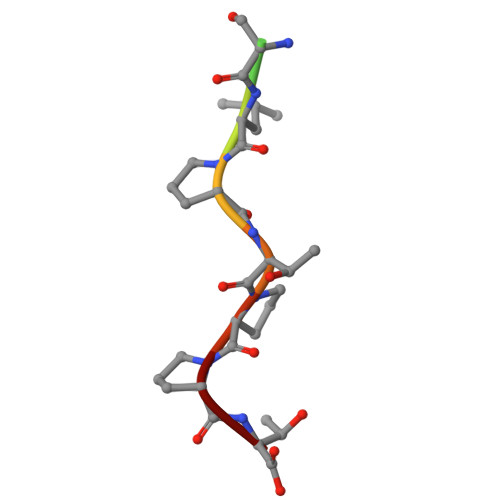

Tau peptide ARG-THR-PRO-SER-LEU-PRO-THR-PRO-PRO-THR	C [auth Q]	10	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P10636 (Homo sapiens) Explore P10636  Go to UniProtKB:  P10636
PHAROS:  P10636 GTEx:  ENSG00000186868

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NA	D [auth B]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.42 Å
• R-Value Free:  0.218 (Depositor), 0.217 (DCC)
• R-Value Work:  0.178 (Depositor), 0.182 (DCC)
• R-Value Observed: 0.180 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 35.631	α = 90
b = 54.163	β = 90
c = 66.868	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
pointless	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-27
Deposition Author(s): Becker, S.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-08-27
  Type: Initial release
