9GBJ | pdb_00009gbj

KRAS G12D in complex with covalent inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.71 Å
  • R-Value Free:
    0.223 (Depositor), 0.210 (DCC)
  • R-Value Work:
    0.180 (Depositor), 0.174 (DCC)
  • R-Value Observed:
    0.182 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Discovery of Carbodiimide Warheads to Selectively and Covalently Target Aspartic Acid in KRAS G12D .

Sirocchi, L.S.Scharnweber, M.Oberndorfer, S.Siszler, G.Zak, K.M.Rumpel, K.Neumuller, R.A.Wilding, B.

(2025) J Am Chem Soc 147: 15787-15795

  • DOI: https://doi.org/10.1021/jacs.5c03562
  • Primary Citation of Related Structures:
    9GBJ

  • PubMed Abstract:

    Targeted covalent inhibitors are known to be successful therapeutics used in various indications. Covalent drugs typically target cysteine, as cysteine is well suited due to its high nucleophilicity. However, its low abundance in protein binding sites represents a major limitation. As a result, there is a need to covalently target additional nucleophilic amino acids. Recent literature has reported covalent inhibitors labeling aspartic acid in KRAS G12D . However, these compounds also covalently bind to KRAS G12C , indicating their cross-reactivity to cysteine along with aspartic acid. We report here carbodiimides as a novel reactive group to selectively target aspartic acid. Covalent inhibitors bearing a carbodiimide moiety are shown to covalently label KRAS G12D in biochemical and cellular assays. A high-resolution X-ray crystal structure was obtained, which illustrates the mechanism of the covalent bond formation with KRAS G12D . Carbodiimide warheads show selectivity toward KRAS G12D over other KRAS alleles and represent a new covalent warhead suitable for covalently binding to aspartic acid in a biochemical and cellular context.


  • Organizational Affiliation
    • Boehringer Ingelheim RCV GmbH & Co KG, Dr.-Boehringer-Gasse 5-11, Vienna A-1121, Austria.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

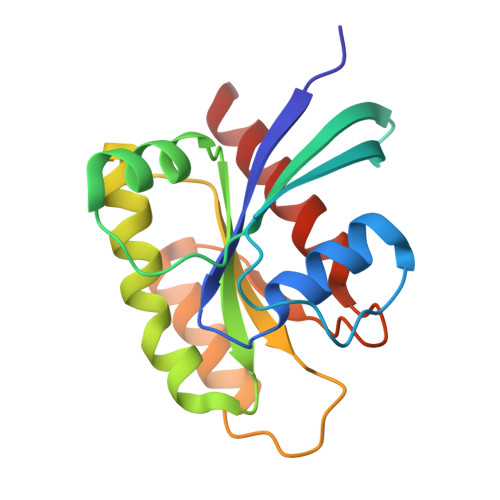

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
GTPase KRas170Homo sapiensMutation(s): 2
Gene Names: KRASKRAS2RASK2
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens)
Explore P01116
Go to UniProtKB:  P01116
PHAROS:  P01116
GTEx:  ENSG00000133703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01116
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1IJ7 (Subject of Investigation/LOI)
Query on A1IJ7

Download Ideal Coordinates CCD File
C [auth A]1-[(3S)-1-[2-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]-6-[(1S)-1-[(2S)-1-methylpyrrolidin-2-yl]ethoxy]pyrimidin-4-yl]pyrrolidin-3-yl]-3-[1-(methoxymethyl)cyclopropyl]urea
C33 H44 N10 O4 S
CVHDURWUDYTXDR-ZRXVAINVSA-N
GDP
Query on GDP

Download Ideal Coordinates CCD File
B [auth A]GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
D [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.71 Å
  • R-Value Free:  0.223 (Depositor), 0.210 (DCC)
  • R-Value Work:  0.180 (Depositor), 0.174 (DCC)
  • R-Value Observed: 0.182 (Depositor)
Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 87.185α = 90
b = 40.452β = 90
c = 55.746γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
XDSdata reduction
Aimlessdata scaling
DIMPLEphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-30
    Type: Initial release
  • Version 1.1: 2025-05-21
    Changes: Database references
