9ETZ | pdb_00009etz

III2IV respiratory supercomplex from Saccharomyces cerevisiae


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Electron transfer in the respiratory chain at low salinity.

Lobez, A.P.Wu, F.Di Trani, J.M.Rubinstein, J.L.Oliveberg, M.Brzezinski, P.Moe, A.

(2024) Nat Commun 15: 8241-8241

  • DOI: https://doi.org/10.1038/s41467-024-52475-3
  • Primary Citation of Related Structures:
    9ETZ

  • PubMed Abstract:

    Recent studies have established that cellular electrostatic interactions are more influential than assumed previously. Here, we use cryo-EM and perform steady-state kinetic studies to investigate electrostatic interactions between cytochrome (cyt.) c and the complex (C) III 2 -IV supercomplex from Saccharomyces cerevisiae at low salinity. The kinetic studies show a sharp transition with a Hill coefficient ≥2, which together with the cryo-EM data at 2.4 Å resolution indicate multiple cyt. c molecules bound along the supercomplex surface. Negatively charged loops of CIII 2 subunits Qcr6 and Qcr9 become structured to interact with cyt. c. In addition, the higher resolution allows us to identify water molecules in proton pathways of CIV and, to the best of our knowledge, previously unresolved cardiolipin molecules. In conclusion, the lowered electrostatic screening renders engagement of multiple cyt. c molecules that are directed by electrostatically structured CIII 2 loops to conduct electron transfer between CIII 2 and CIV.


  • Organizational Affiliation
    • Department of Biochemistry and Biophysics, The Arrhenius Laboratories for Natural Sciences, Stockholm University, Stockholm, Sweden.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

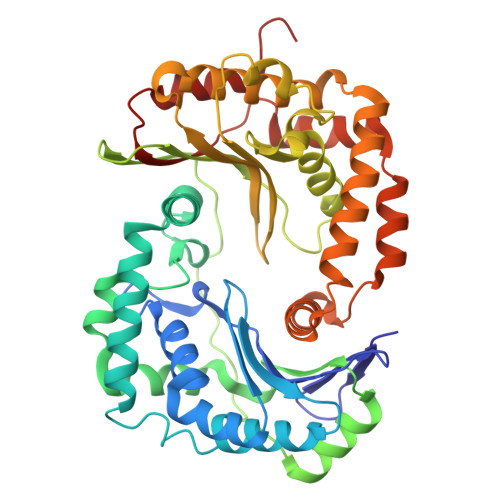

Cytochrome b-c1 complex subunit 1, mitochondrialA,
K [auth L]
431Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P07256 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P07256
Go to UniProtKB:  P07256
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07256
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

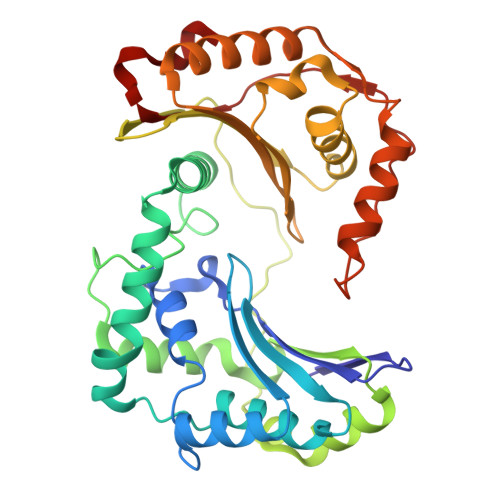

Cytochrome b-c1 complex subunit 2, mitochondrialB,
L [auth M]
352Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P07257 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P07257
Go to UniProtKB:  P07257
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07257
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

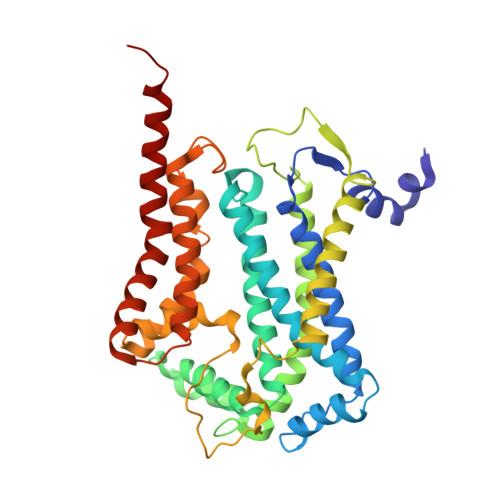

Cytochrome bC,
M [auth N]
385Saccharomyces cerevisiaeMutation(s): 0
EC: 7.1.1.8
Membrane Entity: Yes
UniProt
Find proteins for P00163 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00163
Go to UniProtKB:  P00163
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00163
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

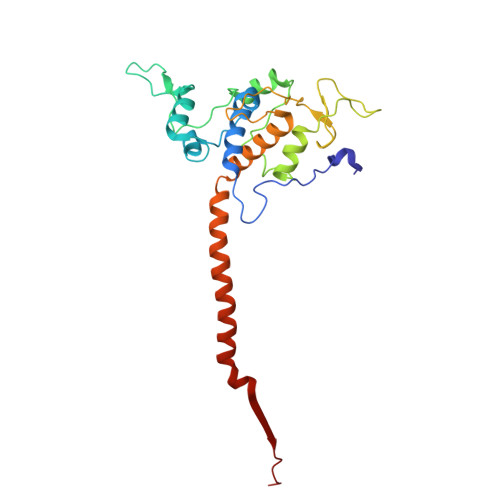

Cytochrome c1, heme protein, mitochondrialD,
N [auth O]
247Saccharomyces cerevisiaeMutation(s): 0
EC: 7.1.1.8
Membrane Entity: Yes
UniProt
Find proteins for P07143 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P07143
Go to UniProtKB:  P07143
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07143
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

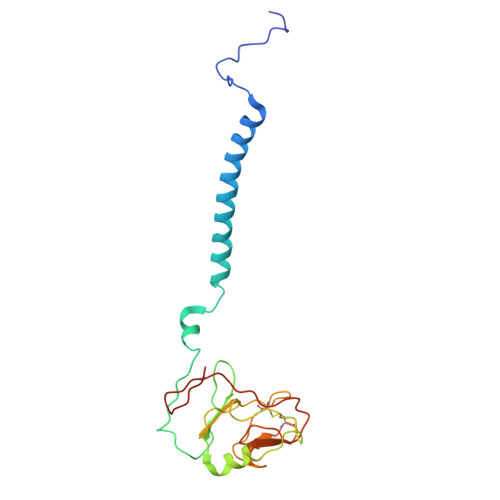

Cytochrome b-c1 complex subunit Rieske, mitochondrialE,
O [auth P]
185Saccharomyces cerevisiaeMutation(s): 0
EC: 7.1.1.8
Membrane Entity: Yes
UniProt
Find proteins for P08067 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P08067
Go to UniProtKB:  P08067
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08067
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

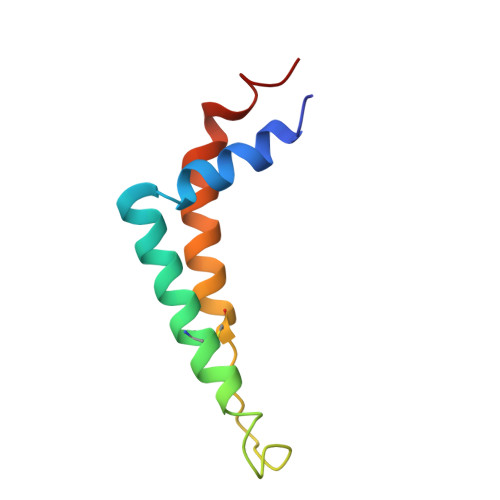

Cytochrome b-c1 complex subunit 6, mitochondrialF,
P [auth Q]
75Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P00127 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00127
Go to UniProtKB:  P00127
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00127
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

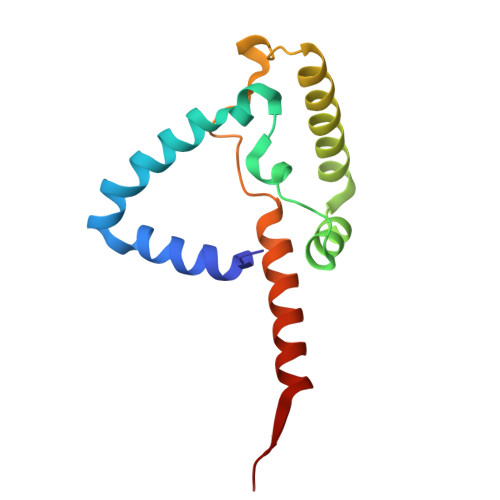

Cytochrome b-c1 complex subunit 7, mitochondrialG,
Q [auth R]
126Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P00128 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00128
Go to UniProtKB:  P00128
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00128
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit 8, mitochondrialH,
R [auth S]
93Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P08525 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P08525
Go to UniProtKB:  P08525
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08525
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

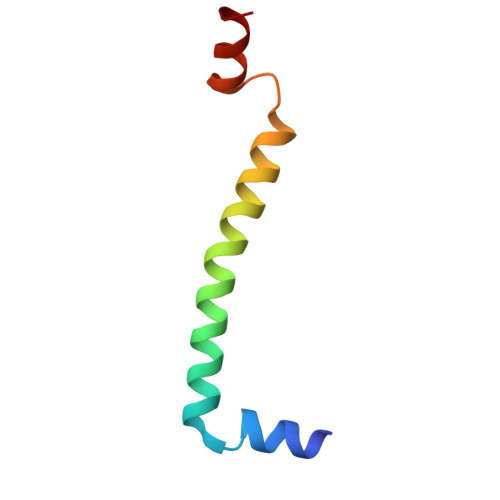

Cytochrome b-c1 complex subunit 9, mitochondrialI,
S [auth T]
57Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P22289 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22289
Go to UniProtKB:  P22289
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22289
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit 10, mitochondrialJ,
T [auth U]
76Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P37299 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P37299
Go to UniProtKB:  P37299
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP37299
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

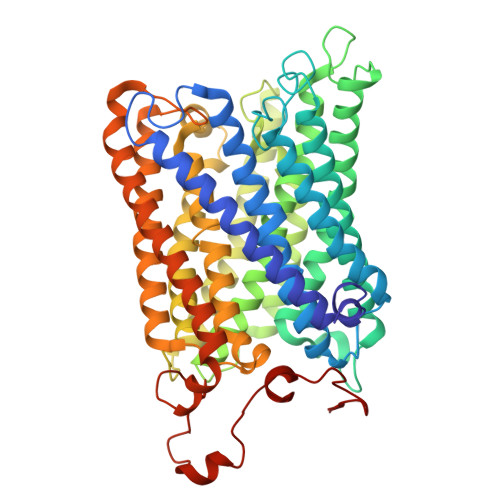

Cytochrome c oxidase subunit 1U [auth a]534Saccharomyces cerevisiaeMutation(s): 0
EC: 7.1.1.9
Membrane Entity: Yes
UniProt
Find proteins for P00401 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00401
Go to UniProtKB:  P00401
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00401
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

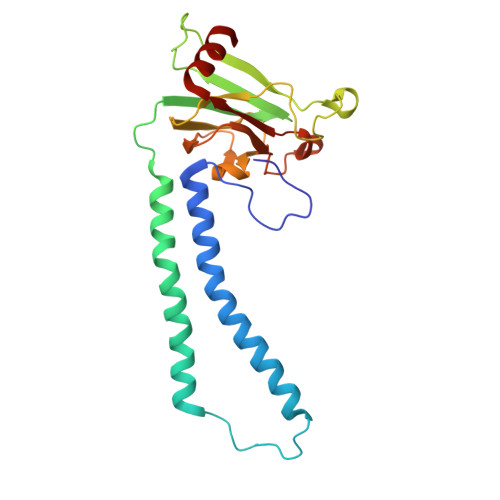

Cytochrome c oxidase subunit 2V [auth b]236Saccharomyces cerevisiaeMutation(s): 0
EC: 7.1.1.9
Membrane Entity: Yes
UniProt
Find proteins for P00410 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00410
Go to UniProtKB:  P00410
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00410
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

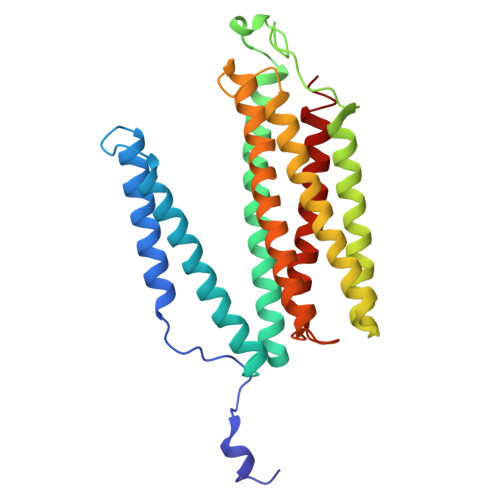

Cytochrome c oxidase subunit 3W [auth c]269Saccharomyces cerevisiaeMutation(s): 0
EC: 7.1.1.9
Membrane Entity: Yes
UniProt
Find proteins for P00420 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00420
Go to UniProtKB:  P00420
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00420
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage

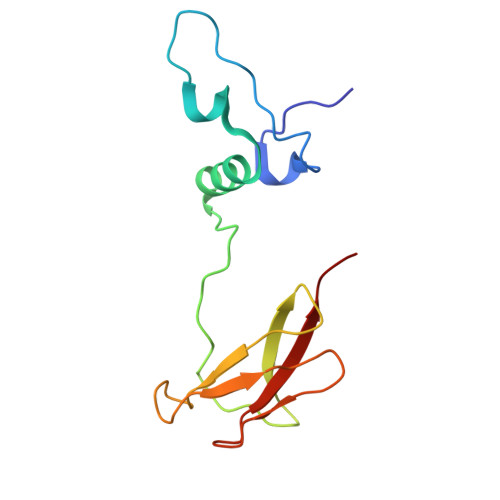

Cytochrome c oxidase subunit 4, mitochondrialX [auth d]120Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P04037 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P04037
Go to UniProtKB:  P04037
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04037
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage

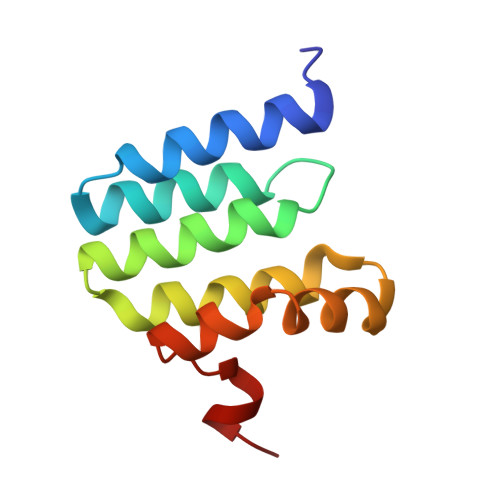

Cytochrome c oxidase subunit 6, mitochondrialY [auth f]102Saccharomyces cerevisiaeMutation(s): 0
Gene Names: COX6YHR051W
Membrane Entity: Yes
UniProt
Find proteins for P00427 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00427
Go to UniProtKB:  P00427
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00427
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage

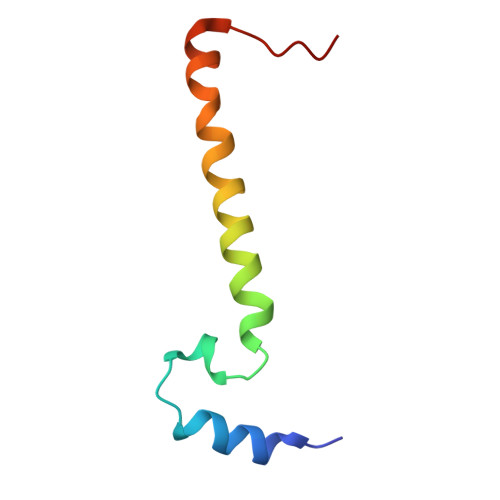

Cytochrome c oxidase subunit 7, mitochondrialZ [auth g]59Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P10174 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P10174
Go to UniProtKB:  P10174
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP10174
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChains Sequence LengthOrganismDetailsImage

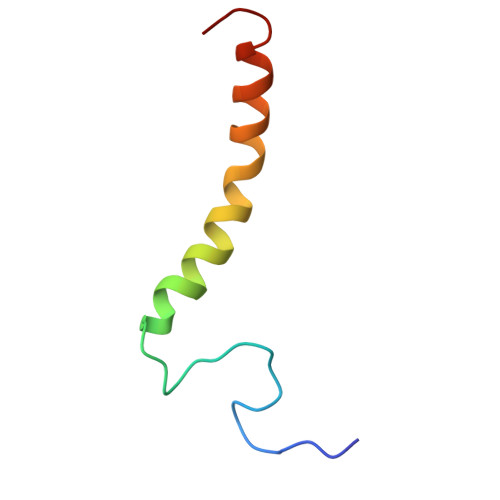

Cytochrome c oxidase subunit 8, mitochondrialAA [auth h]51Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P04039 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P04039
Go to UniProtKB:  P04039
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04039
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 18
MoleculeChains Sequence LengthOrganismDetailsImage

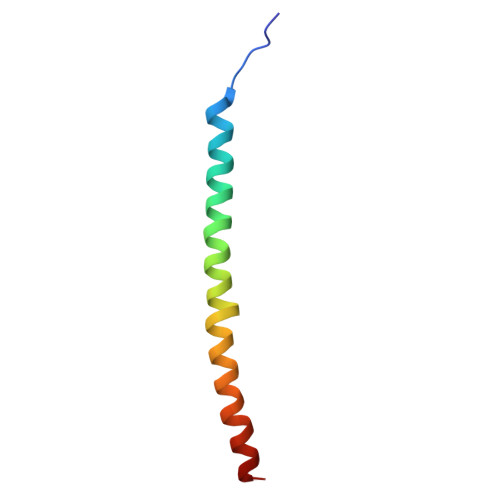

Cytochrome c oxidase subunit 9, mitochondrialBA [auth i]55Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P07255 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P07255
Go to UniProtKB:  P07255
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07255
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 19
MoleculeChains Sequence LengthOrganismDetailsImage

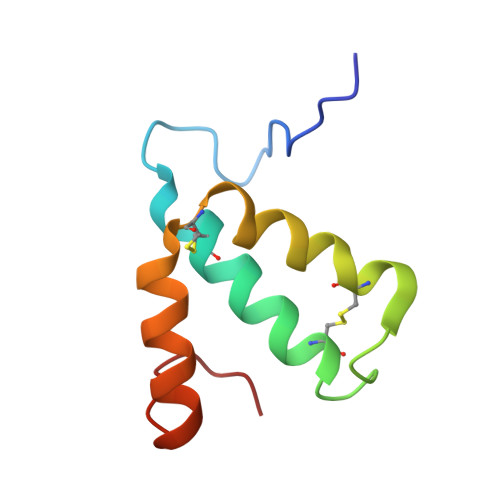

Cytochrome c oxidase subunit 12, mitochondrialCA [auth j]75Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for Q01519 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q01519
Go to UniProtKB:  Q01519
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ01519
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 20
MoleculeChains Sequence LengthOrganismDetailsImage

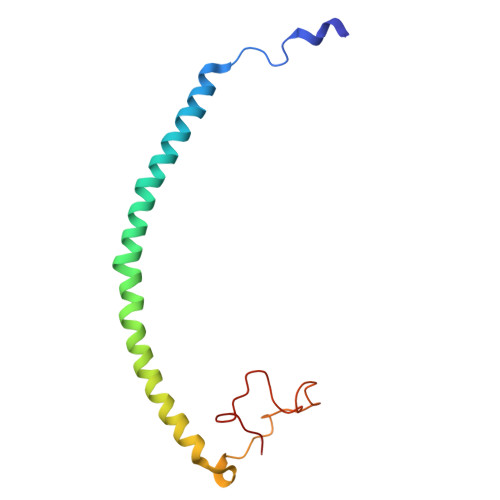

Cytochrome c oxidase subunit 13, mitochondrialDA [auth k]113Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P32799 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32799
Go to UniProtKB:  P32799
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32799
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 21
MoleculeChains Sequence LengthOrganismDetailsImage

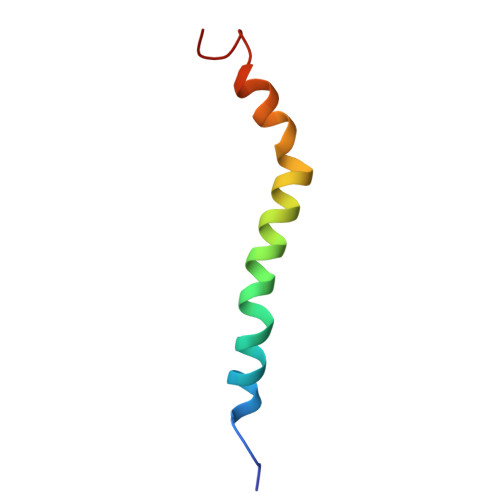

Cytochrome c oxidase subunit 26, mitochondrialEA [auth l]45Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for Q2V2P9 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q2V2P9
Go to UniProtKB:  Q2V2P9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ2V2P9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 22
MoleculeChains Sequence LengthOrganismDetailsImage

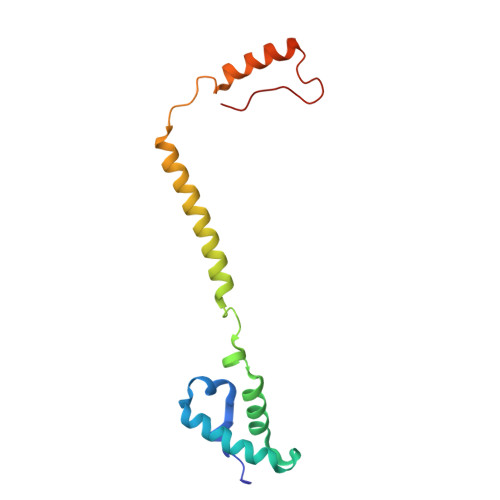

Cytochrome c oxidase subunit 5A, mitochondrialFA [auth e]133Saccharomyces cerevisiaeMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for P00424 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00424
Go to UniProtKB:  P00424
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00424
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 13 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CDL
Query on CDL

Download Ideal Coordinates CCD File
BB [auth L]
CB [auth L]
FB [auth N]
GA [auth A]
HA [auth A]
BB [auth L],
CB [auth L],
FB [auth N],
GA [auth A],
HA [auth A],
IC [auth c],
PB [auth P],
QB [auth S],
SA [auth E],
UA [auth H],
VA [auth H]
CARDIOLIPIN
C81 H156 O17 P2
XVTUQDWPJJBEHJ-KZCWQMDCSA-L
HEA
Query on HEA

Download Ideal Coordinates CCD File
WB [auth a],
XB [auth a]
HEME-A
C49 H56 Fe N4 O6
ZGGYGTCPXNDTRV-PRYGPKJJSA-L
PCF
Query on PCF

Download Ideal Coordinates CCD File
IB [auth N]
MA [auth C]
NC [auth e]
SB [auth T]
XA [auth H]
IB [auth N],
MA [auth C],
NC [auth e],
SB [auth T],
XA [auth H],
YA [auth I]
1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE
C40 H80 N O8 P
KILNVBDSWZSGLL-KXQOOQHDSA-N
PEF
Query on PEF

Download Ideal Coordinates CCD File
AB [auth J]
AC [auth a]
BC [auth a]
CC [auth a]
EC [auth b]
AB [auth J],
AC [auth a],
BC [auth a],
CC [auth a],
EC [auth b],
FC [auth b],
GB [auth N],
GC [auth c],
HB [auth N],
HC [auth c],
KA [auth C],
KB [auth N],
KC [auth h],
LA [auth C],
LC [auth l],
MB [auth P],
MC [auth e],
OA [auth C],
OB [auth P],
RA [auth E],
RB [auth S],
TA [auth G],
TB [auth U],
UB [auth a],
WA [auth H],
ZA [auth J]
DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE
C37 H74 N O8 P
SLKDGVPOSSLUAI-PGUFJCEWSA-N
HEC
Query on HEC

Download Ideal Coordinates CCD File
LB [auth O],
PA [auth D]
HEME C
C34 H34 Fe N4 O4
HXQIYSLZKNYNMH-LJNAALQVSA-N
HEM
Query on HEM

Download Ideal Coordinates CCD File
DB [auth N],
EB [auth N],
IA [auth C],
JA [auth C]
PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
UQ6
Query on UQ6

Download Ideal Coordinates CCD File
JB [auth N],
NA [auth C]
5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL
C39 H60 O4
DYOSCPIQEYRQEO-XQCASOQKSA-N
FES
Query on FES

Download Ideal Coordinates CCD File
NB [auth P],
QA [auth E]
FE2/S2 (INORGANIC) CLUSTER
Fe2 S2
NIXDOXVAJZFRNF-UHFFFAOYSA-N
CUA
Query on CUA

Download Ideal Coordinates CCD File
DC [auth b]DINUCLEAR COPPER ION
Cu2
ALKZAGKDWUSJED-UHFFFAOYSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
JC [auth d]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
CU
Query on CU

Download Ideal Coordinates CCD File
VB [auth a]COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
YB [auth a]CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
ZB [auth a]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Knut and Alice Wallenberg FoundationSweden--
Swedish Research CouncilSweden--
Canadian Institutes of Health Research (CIHR)CanadaPJT191893

Revision History  (Full details and data files)

  • Version 1.0: 2024-10-02
    Type: Initial release
  • Version 1.1: 2024-11-13
    Changes: Data collection, Structure summary
  • Version 1.2: 2025-07-09
    Changes: Data collection
