9E7G | pdb_00009e7g

Crystal structure of HIV-1 RRE SLII G34C mutant in complex with Fab BL3-6

PDB DOI: https://doi.org/10.2210/pdb9E7G/pdb
NAKB: 9E7G

Classification: RNA
Organism(s): Homo sapiens, Human immunodeficiency virus 1
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2024-11-01 Released: 2025-05-28
Deposition Author(s): Ojha, M., Koirala, D.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.00 Å
R-Value Free:
0.234 (Depositor), 0.237 (DCC)
R-Value Work:
0.190 (Depositor), 0.193 (DCC)
R-Value Observed:
0.194 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of HIV-1 RRE SLII G34C mutant in complex with Fab BL3-6

Ojha, M., Koirala, D.

To be published.

Macromolecule Content

Total Structure Weight: 71.38 kDa
Atom Count: 4,867
Modeled Residue Count: 513
Deposited Residue Count: 520
Unique protein chains: 2
Unique nucleic acid chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

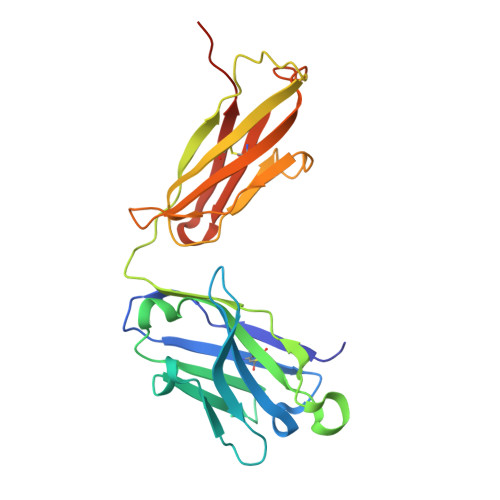

BL3-6 Fab heavy chain	A [auth H]	233	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

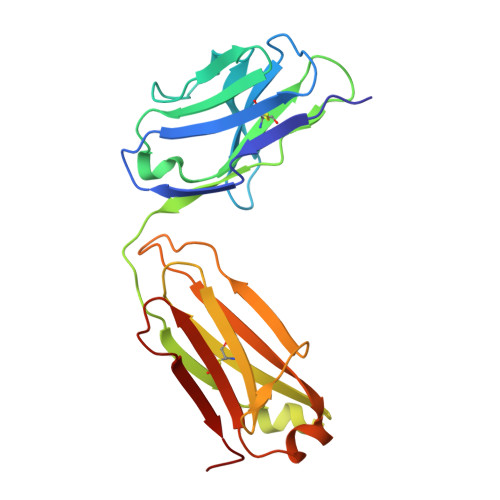

BL3-6 Fab light chain	B [auth L]	215	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Length	Organism	Image

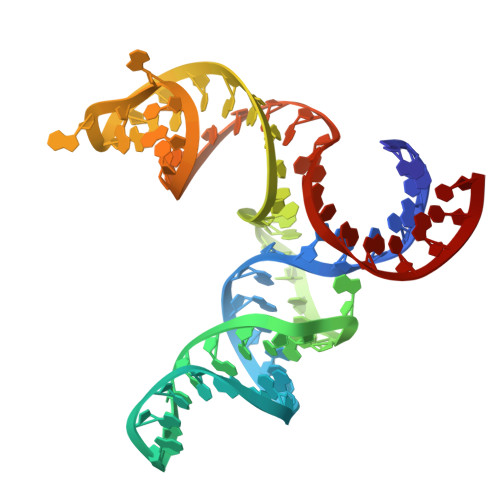

Rev Response Element SLII	C [auth R]	72	Human immunodeficiency virus 1
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 3.00 Å
R-Value Free: 0.234 (Depositor), 0.237 (DCC)
R-Value Work: 0.190 (Depositor), 0.193 (DCC)
R-Value Observed: 0.194 (Depositor)

Space Group: I 2 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 90.785	α = 90
b = 106.63	β = 90
c = 187.331	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-05-28

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	U54AI170660-01/SUBK00019302

Revision History (Full details and data files)

Version 1.0: 2025-05-28
Type: Initial release
