9E03 | pdb_00009e03

Cryo-EM structure of a TatBC complex from Myxococcus xanthus

• PDB DOI: https://doi.org/10.2210/pdb9E03/pdb
• EM Map EMD-47347: EMDB EMDataResource

• Classification: TRANSLOCASE
• Organism(s): Myxococcus xanthus
• Expression System: Escherichia coli
• Mutation(s): No
• Membrane Protein: Yes  MemProtMD


• Deposited: 2024-10-17 Released: 2025-08-27
• Deposition Author(s): Deme, J.C., Bryant, O.J., Berks, B.C., Lea, S.M.
• Funding Organization(s): Medical Research Council (MRC, United Kingdom), Wellcome Trust, National Institutes of Health/National Cancer Institute (NIH/NCI)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.20 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structure of the twin-arginine protein translocation pathway core complex and the molecular basis for substrate recognition

Deme, J.C., Bryant, O.J., Berks, B.C., Lea, S.M.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C3  (Explore in 3D)
Global Stoichiometry: Hetero 6-mer - A3B3

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 193.03 kDa
• Atom Count: 9,072
• Modeled Residue Count: 1,185
• Deposited Residue Count: 1,797
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

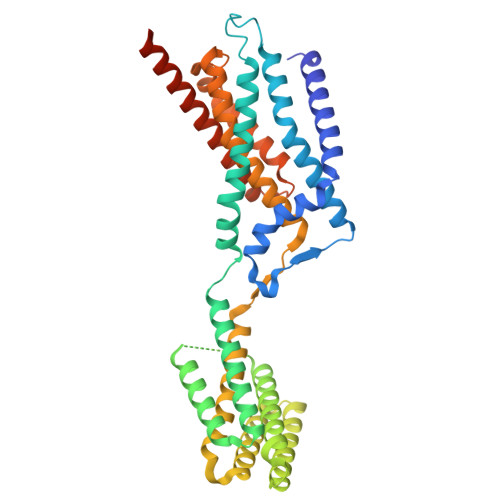

Sec-independent protein translocase protein TatC	A, E, F [auth C]	409	Myxococcus xanthus	Mutation(s): 0  Gene Names: tatC, N3T43_29770 Membrane Entity: Yes
UniProt
Find proteins for Q2PHA2 (Myxococcus xanthus) Explore Q2PHA2  Go to UniProtKB:  Q2PHA2

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

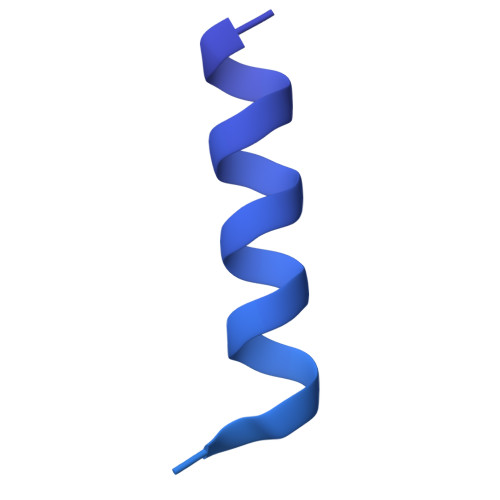

Twin-arginine translocase B	B, C [auth F], D	190	Myxococcus xanthus	Mutation(s): 0  Gene Names: tatB, N3T43_29775 Membrane Entity: Yes
UniProt
Find proteins for Q2PHA3 (Myxococcus xanthus) Explore Q2PHA3  Go to UniProtKB:  Q2PHA3

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.20 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-08-27
Deposition Author(s): Deme, J.C., Bryant, O.J., Berks, B.C., Lea, S.M.

---

Funding Organization	Location	Grant Number
Medical Research Council (MRC, United Kingdom)	United Kingdom	MR/L000776/1
Wellcome Trust	United Kingdom	107929/Z/15/Z
National Institutes of Health/National Cancer Institute (NIH/NCI)	United States	Intramural Research Program

Revision History

• Version 1.0: 2025-08-27
  Type: Initial release
