9DZZ | pdb_00009dzz

Cryo-EM structure of a TatBC complex from Escherichia coli

• PDB DOI: https://doi.org/10.2210/pdb9DZZ/pdb
• EM Map EMD-47343: EMDB EMDataResource

• Classification: TRANSLOCASE
• Organism(s): Escherichia coli
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-10-17 Released: 2025-08-27
• Deposition Author(s): Deme, J.C., Bryant, O.J., Berks, B.C., Lea, S.M.
• Funding Organization(s): Medical Research Council (MRC, United Kingdom), Wellcome Trust, National Institutes of Health/National Cancer Institute (NIH/NCI)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.10 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structure of the twin-arginine protein translocation pathway core complex and the molecular basis for substrate recognition

Deme, J.C., Bryant, O.J., Berks, B.C., Lea, S.M.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C3  (Explore in 3D)
Global Stoichiometry: Hetero 6-mer - A3B3

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 145.23 kDa
• Atom Count: 6,957
• Modeled Residue Count: 882
• Deposited Residue Count: 1,311
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Sec-independent protein translocase protein TatC	A, C [auth E], D [auth C]	266	Escherichia coli	Mutation(s): 0  Gene Names: tatC
UniProt
Find proteins for P69423 (Escherichia coli (strain K12)) Explore P69423  Go to UniProtKB:  P69423

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

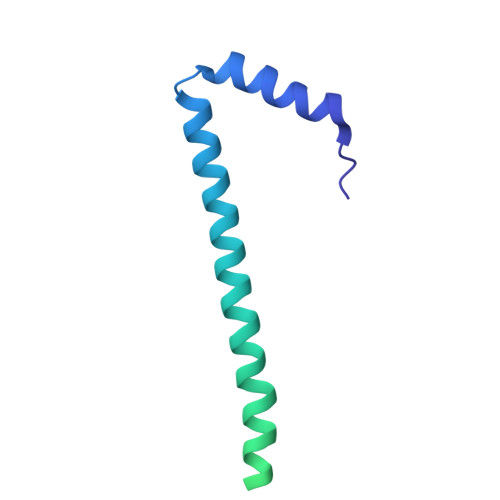

Sec-independent protein translocase protein TatB	B, E [auth F], F [auth D]	171	Escherichia coli	Mutation(s): 0  Gene Names: tatB
UniProt
Find proteins for P69425 (Escherichia coli (strain K12)) Explore P69425  Go to UniProtKB:  P69425

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.10 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-27
Deposition Author(s): Deme, J.C., Bryant, O.J., Berks, B.C., Lea, S.M.

---

Funding Organization	Location	Grant Number
Medical Research Council (MRC, United Kingdom)	United Kingdom	MR/L000776/1
Wellcome Trust	United Kingdom	107929/Z/15/Z
National Institutes of Health/National Cancer Institute (NIH/NCI)	United States	Intramural Research Program

Revision History

• Version 1.0: 2025-08-27
  Type: Initial release
