9DWI | pdb_00009dwi

DNA Polymerase Beta bound to a nucleosome containing a 1-nt gap at SHL-4.5 (State 3, composite)

PDB DOI: https://doi.org/10.2210/pdb9DWI/pdb
EM Map EMD-47249: EMDB EMDataResource
NAKB: 9DWI

Classification: DNA BINDING PROTEIN/DNA
Organism(s): Homo sapiens, synthetic construct
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2024-10-09 Released: 2025-01-15
Deposition Author(s): Weaver, T.M., Ryan, B.J., Freudenthal, B.D.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

DNA Polymerase Beta bound to a nucleosome containing a 1-nt gap at SHL-4.5 (State 4, composite)

Ryan, B.J., Weaver, T.M., Freudenthal, B.D.

To be published.

Macromolecule Content

Total Structure Weight: 237.29 kDa
Atom Count: 14,661
Modeled Residue Count: 1,378
Deposited Residue Count: 1,610
Unique protein chains: 5
Unique nucleic acid chains: 3

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Histone H3.2	A, E	135	Homo sapiens	Mutation(s): 1 Gene Names: H3C15, HIST2H3A, H3C14, H3F2, H3FM, HIST2H3C, H3C13, HIST2H3D
UniProt & NIH Common Fund Data Resources
Find proteins for Q71DI3 (Homo sapiens) Explore Q71DI3 Go to UniProtKB: Q71DI3
PHAROS: Q71DI3 GTEx: ENSG00000183598 ENSG00000203811 ENSG00000203852
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q71DI3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Histone H4	B, F	102	Homo sapiens	Mutation(s): 0 Gene Names: H4C1, H4/A, H4FA, HIST1H4A, H4C2, H4/I, H4FI, HIST1H4B, H4C3, H4/G... H4C1, H4/A, H4FA, HIST1H4A, H4C2, H4/I, H4FI, HIST1H4B, H4C3, H4/G, H4FG, HIST1H4C, H4C4, H4/B, H4FB, HIST1H4D, H4C5, H4/J, H4FJ, HIST1H4E, H4C6, H4/C, H4FC, HIST1H4F, H4C8, H4/H, H4FH, HIST1H4H, H4C9, H4/M, H4FM, HIST1H4I, H4C11, H4/E, H4FE, HIST1H4J, H4C12, H4/D, H4FD, HIST1H4K, H4C13, H4/K, H4FK, HIST1H4L, H4C14, H4/N, H4F2, H4FN, HIST2H4, HIST2H4A, H4C15, H4/O, H4FO, HIST2H4B, H4-16, HIST4H4
UniProt & NIH Common Fund Data Resources
Find proteins for P62805 (Homo sapiens) Explore P62805 Go to UniProtKB: P62805
PHAROS: P62805 GTEx: ENSG00000274618 ENSG00000197238 ENSG00000197837 ENSG00000158406 ENSG00000278705 ENSG00000197061 ENSG00000270882 ENSG00000270276 ENSG00000273542 ENSG00000277157 ENSG00000276966 ENSG00000276180 ENSG00000278637 ENSG00000275126
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P62805
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Histone H2A type 1	C, G	129	Homo sapiens	Mutation(s): 0 Gene Names: H2AC11, H2AFP, HIST1H2AG, H2AC13, H2AFC, HIST1H2AI, H2AC15, H2AFD, HIST1H2AK, H2AC16... H2AC11, H2AFP, HIST1H2AG, H2AC13, H2AFC, HIST1H2AI, H2AC15, H2AFD, HIST1H2AK, H2AC16, H2AFI, HIST1H2AL, H2AC17, H2AFN, HIST1H2AM
UniProt & NIH Common Fund Data Resources
Find proteins for P0C0S8 (Homo sapiens) Explore P0C0S8 Go to UniProtKB: P0C0S8
PHAROS: P0C0S8 GTEx: ENSG00000196747 ENSG00000196787 ENSG00000278677 ENSG00000276903
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0C0S8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
Histone H2B type 1-C/E/F/G/I	D, H	125	Homo sapiens	Mutation(s): 0 Gene Names: H2BC4, H2BFL, HIST1H2BC, H2BC6, H2BFH, HIST1H2BE, H2BC7, H2BFG, HIST1H2BF, H2BC8... H2BC4, H2BFL, HIST1H2BC, H2BC6, H2BFH, HIST1H2BE, H2BC7, H2BFG, HIST1H2BF, H2BC8, H2BFA, HIST1H2BG, H2BC10, H2BFK, HIST1H2BI
UniProt & NIH Common Fund Data Resources
Find proteins for P62807 (Homo sapiens) Explore P62807 Go to UniProtKB: P62807
PHAROS: P62807 GTEx: ENSG00000180596 ENSG00000277224 ENSG00000278588 ENSG00000273802 ENSG00000274290
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P62807
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA polymerase beta	L	335	Homo sapiens	Mutation(s): 0 Gene Names: POLB EC: 2.7.7.7 (PDB Primary Data), 4.2.99 (PDB Primary Data), 4.2.99.18 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P06746 (Homo sapiens) Explore P06746 Go to UniProtKB: P06746
PHAROS: P06746 GTEx: ENSG00000070501
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P06746
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 5

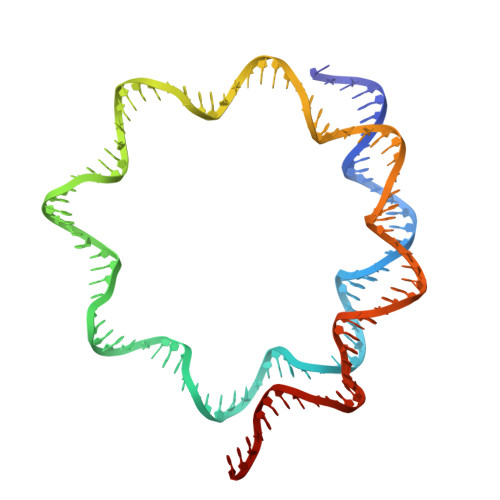

601 I strand (damaged strand 1)	I	117	synthetic construct
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 6
601 J strand (non-damaged strand)	J	147	synthetic construct
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 7
601 K strand (damaged strand 2)	K	29	synthetic construct
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	cryoSPARC	v4.3

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-01-15

Deposition Author(s):

Weaver, T.M.

Ryan, B.J.

Freudenthal, B.D.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM128562
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	F32GM140718
