9DVB | pdb_00009dvb

Thermus thermophilus MreC-MreD complex with an internal MreD BRIL fusion and an anti-BRIL Fab

• PDB DOI: https://doi.org/10.2210/pdb9DVB/pdb
• EM Map EMD-47199: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Escherichia coli, Thermus thermophilus, synthetic construct
• Expression System: Escherichia coli, Homo sapiens
• Mutation(s): No


• Deposited: 2024-10-07 Released: 2025-10-15
• Deposition Author(s): Gilman, M.S.A., Kruse, A.C.
• Funding Organization(s): Howard Hughes Medical Institute (HHMI), National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Science Foundation (NSF, United States), Other private

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.60 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

MreC-MreD structure reveals a multifaceted interface that controls MreC conformation

Gilman, M.S.A., Shlosman, I., Same Guerra, D.D., Domecillo, M., Fivenson, E.M., Bourett, C., Bernhardt, T.G., Polizzi, N.F., Loparo, J.J., Kruse, A.C.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Hetero 10-mer - A2B2C2D2E2 Pseudo Symmetry: Cyclic - C2  (Explore in 3D)
Pseudo Stoichiometry: Hetero 10-mer - A4B2C2D2

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 210.1 kDa
• Atom Count: 10,802
• Modeled Residue Count: 1,410
• Deposited Residue Count: 1,946
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

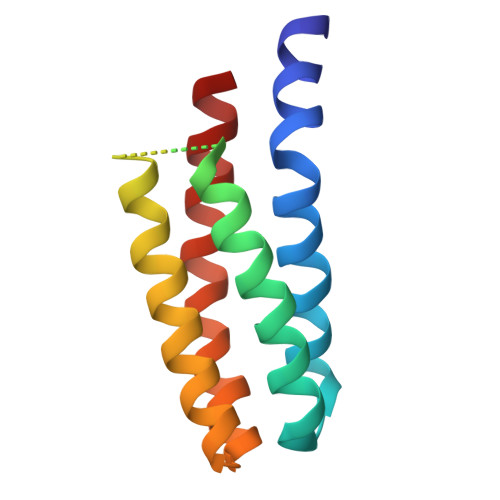

Soluble cytochrome b562	A [auth B], F [auth N]	117	Escherichia coli	Mutation(s): 0  Gene Names: cybC
UniProt
Find proteins for P0ABE7 (Escherichia coli) Explore P0ABE7  Go to UniProtKB:  P0ABE7

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

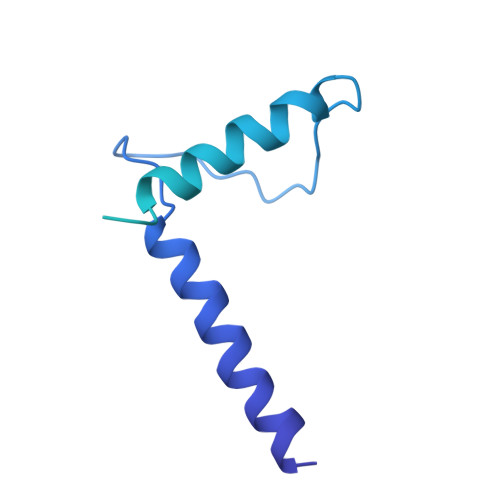

Cell shape-determining protein MreC	B [auth C], G [auth O]	262	Thermus thermophilus	Mutation(s): 0  Gene Names: TthHB5018_12720
UniProt
Find proteins for Q72JE6 (Thermus thermophilus (strain ATCC BAA-163 / DSM 7039 / HB27)) Explore Q72JE6  Go to UniProtKB:  Q72JE6

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

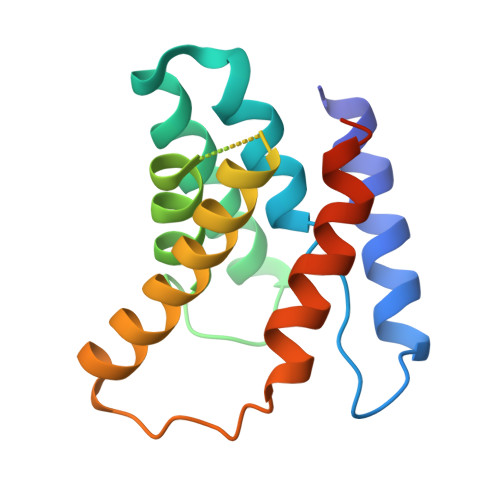

Rod shape-determining protein MreD	C [auth D], H [auth P]	152	Thermus thermophilus	Mutation(s): 0  Gene Names: TTHA1190
UniProt
Find proteins for Q5SJ24 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8)) Explore Q5SJ24  Go to UniProtKB:  Q5SJ24

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

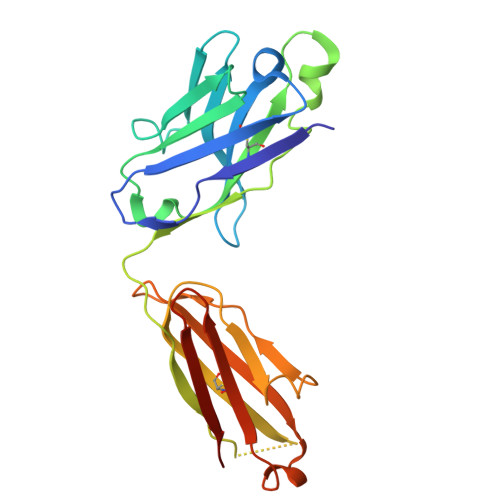

BAG2 anti-BRIL Fab heavy chain	D [auth H], I [auth W]	227	synthetic construct	Mutation(s): 0

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

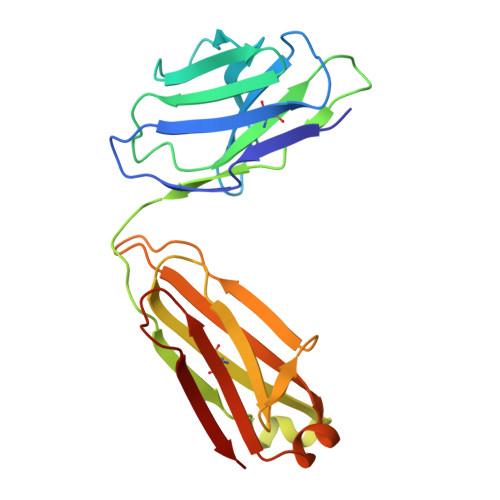

BAG2 anti-BRIL Fab light chain	E [auth L], J [auth X]	215	synthetic construct	Mutation(s): 0

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.60 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-10-15
Deposition Author(s): Gilman, M.S.A., Kruse, A.C.

---

Funding Organization	Location	Grant Number
Howard Hughes Medical Institute (HHMI)	United States	Investigator Funds
Howard Hughes Medical Institute (HHMI)	United States	Hanna H. Gray Fellows program
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	U19 AI158028
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01 GM114065
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	R01 AI083365
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R00 GM135519
National Science Foundation (NSF, United States)	United States	Graduate Research Fellowship Award
Other private	United States	Van Maanen Fellowship from the Department of Biological Chemistry and Molecular Pharmacology at Harvard Medical School
Other private	United States	Innovation Research Fund of the Dana-Farber Cancer Institute

Revision History

• Version 1.0: 2025-10-15
  Type: Initial release
