9DNS | pdb_00009dns

Cryo-EM structure of Tom1-UBE2D2-ubiquitin complex


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: in silico, experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structural ubiquitin contributes to K48 linkage specificity of the HECT ligase Tom1.

Warner, K.Hunkeler, M.Baek, K.Schmoker, A.Roy Burman, S.S.Overwijn, D.Jin, C.Donovan, K.A.Fischer, E.S.

(2025) Cell Rep 44: 115688-115688

  • DOI: https://doi.org/10.1016/j.celrep.2025.115688
  • Primary Citation of Related Structures:
    9DNS, 9DNT

  • PubMed Abstract:

    Homologous to E6AP C terminus (HECT) ubiquitin ligases play key roles in essential pathways such as DNA repair, cell cycle control, or protein quality control. Tom1 is one of five HECT ubiquitin E3 ligases in budding yeast S. cerevisiae and is prototypical for a ligase with pleiotropic functions such as ubiquitin chain amplification, orphan quality control, and DNA damage response. Structures of full-length HECT ligases, including the Tom1 ortholog HUWE1, have been reported, but how domains beyond the conserved catalytic module contribute to catalysis remains largely elusive. Here, through cryoelectron microscopy (cryo-EM) snapshots of Tom1 during an active ubiquitination cycle, we demonstrate that the extended domain architecture directly contributes to activity. We identify a Tom1-ubiquitin architecture during ubiquitination involving a non-canonical ubiquitin-binding site in the solenoid shape of Tom1. We demonstrate that this ubiquitin-binding site coordinates a structural ubiquitin contributing to the fidelity of K48 poly-ubiquitin chain assembly.


  • Organizational Affiliation
    • Department of Cancer Biology, Dana-Farber Cancer Institute, Boston, MA 02215, USA; Department of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, Boston, MA 02215, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

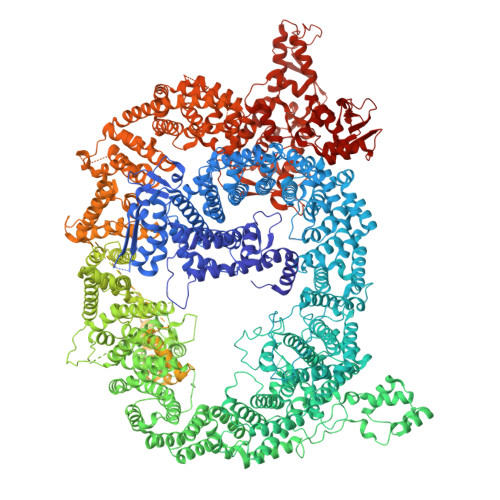

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
E3 ubiquitin-protein ligase TOM13,292Saccharomyces cerevisiaeMutation(s): 0
Gene Names: TOM1SSR2YDR457WD8035.1
EC: 2.3.2.26
UniProt
Find proteins for Q03280 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q03280
Go to UniProtKB:  Q03280
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ03280
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

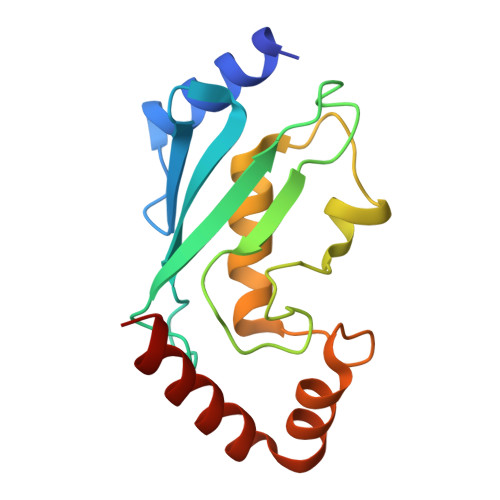

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Ubiquitin-conjugating enzyme E2 D2B [auth D],
C [auth E]
149Homo sapiensMutation(s): 0
Gene Names: UBE2D2PUBC1UBC4UBC5BUBCH4UBCH5B
EC: 2.3.2.23 (PDB Primary Data), 2.3.2.24 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P62837 (Homo sapiens)
Explore P62837
Go to UniProtKB:  P62837
PHAROS:  P62837
GTEx:  ENSG00000131508
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62837
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

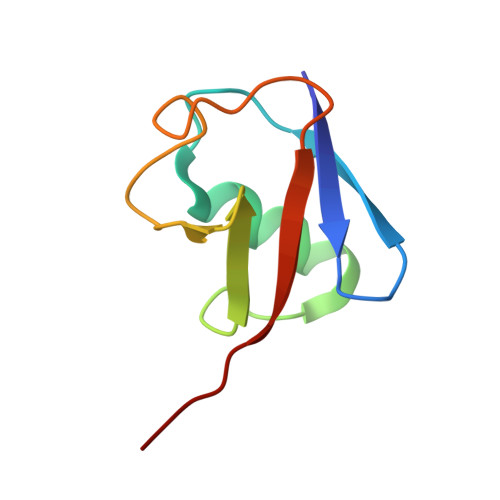

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
UbiquitinD [auth U],
E [auth V],
F [auth W],
G [auth X]
76Homo sapiensMutation(s): 0
Gene Names: UBC
UniProt & NIH Common Fund Data Resources
Find proteins for P0CG48 (Homo sapiens)
Explore P0CG48
Go to UniProtKB:  P0CG48
PHAROS:  P0CG48
GTEx:  ENSG00000150991
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0CG48
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC4.4.1
MODEL REFINEMENTPHENIX1.19.2-4158

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
The G. Harold and Leila Y. Mathers FoundationUnited States64395403
Damon Runyon Cancer Research FoundationUnited StatesDRG-2514-24

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-28
    Type: Initial release
