9DEW | pdb_00009dew

Crystal structure of NDM-1 complexed with compound 2

• PDB DOI: https://doi.org/10.2210/pdb9DEW/pdb

• Classification: HYDROLASE
• Organism(s): Klebsiella pneumoniae
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-08-29 Released: 2025-09-03
• Deposition Author(s): Jacobs, L.M.C., Chen, Y.
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.65 Å
• R-Value Free:
  0.188 (Depositor), 0.193 (DCC)
• R-Value Work:
  0.154 (Depositor), 0.167 (DCC)
• R-Value Observed:
  0.156 (Depositor)

Starting Model: experimental

Literature

Hit to Lead Optimization of Heteroaryl Phosphonates Reversible, Broad-Spectrum Inhibitors of Serine and Metallo Carbapenemases.

Jacobs, L.M.C., Renslo, A.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 25.32 kDa
• Atom Count: 2,035
• Modeled Residue Count: 229
• Deposited Residue Count: 233
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

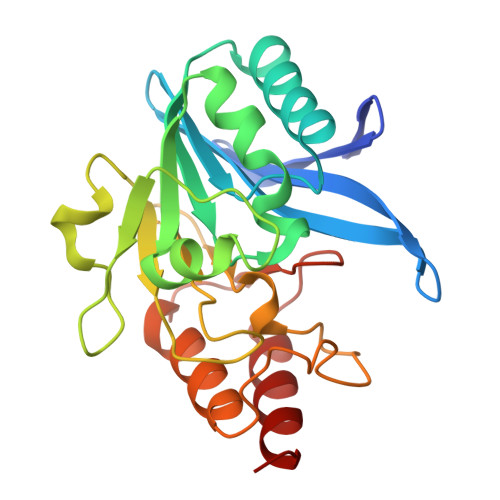

Metallo-beta-lactamase type 2	A	233	Klebsiella pneumoniae	Mutation(s): 0  Gene Names: blaNDM-1 EC: 3.5.2.6
UniProt
Find proteins for C7C422 (Klebsiella pneumoniae) Explore C7C422  Go to UniProtKB:  C7C422

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1A4D (Subject of Investigation/LOI)	B [auth A], C [auth A]	[(7-cyclopropyl-1-methyl-2-oxo-1,2-dihydroquinolin-4-yl)methyl]phosphonic acid C14 H16 N O4 P KKZDZTLAWBKPDI-UHFFFAOYSA-N
ZN	D [auth A], E [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.65 Å
• R-Value Free:  0.188 (Depositor), 0.193 (DCC)
• R-Value Work:  0.154 (Depositor), 0.167 (DCC)
• R-Value Observed: 0.156 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 40.98	α = 90
b = 59.698	β = 93.38
c = 42.4	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
HKL-3000	data reduction
HKL-3000	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-09-03
Deposition Author(s): Jacobs, L.M.C., Chen, Y.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	1R01AI103158-01A1

Revision History

• Version 1.0: 2025-09-03
  Type: Initial release
