9D4B | pdb_00009d4b

Discovery of SMD-3236, a Potent, Highly Selective and Efficacious SMARCA2 Degrader for the Treatment of SMARC4-Deficient Human Cancers

• PDB DOI: https://doi.org/10.2210/pdb9D4B/pdb

• Classification: TRANSCRIPTION
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-08-12 Released: 2025-08-20
• Deposition Author(s): Strickland, C.
• Funding Organization(s): Other private

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 3.30 Å
• R-Value Free:
  0.286 (Depositor), 0.290 (DCC)
• R-Value Work:
  0.207 (Depositor), 0.210 (DCC)
• R-Value Observed:
  0.211 (Depositor)

Starting Model: experimental

Literature

Discovery of SMD-3236, a Potent, Highly Selective and Efficacious SMARCA2 Degrader for the Treatment of SMARC4-Deficient Human Cancers

Strickland, C.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: fluorescence resonance energy transfer

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1

Biological assembly 2 assigned by authors.

Biological Assembly Evidence: fluorescence resonance energy transfer

Macromolecule Content

• Total Structure Weight: 113.37 kDa
• Atom Count: 7,428
• Modeled Residue Count: 900
• Deposited Residue Count: 968
• Unique protein chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

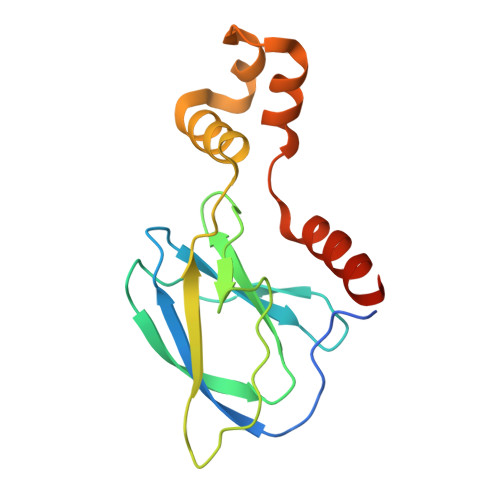

von Hippel-Lindau disease tumor suppressor	A, D	161	Homo sapiens	Mutation(s): 0  Gene Names: VHL
UniProt & NIH Common Fund Data Resources
Find proteins for P40337 (Homo sapiens) Explore P40337  Go to UniProtKB:  P40337
PHAROS:  P40337 GTEx:  ENSG00000134086

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Elongin-B	B, E	104	Homo sapiens	Mutation(s): 0  Gene Names: ELOB, TCEB2
UniProt & NIH Common Fund Data Resources
Find proteins for Q15370 (Homo sapiens) Explore Q15370  Go to UniProtKB:  Q15370
PHAROS:  Q15370 GTEx:  ENSG00000103363

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

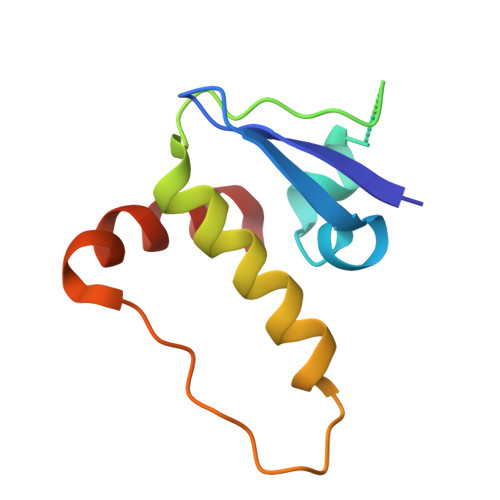

Elongin-C	C, F	96	Homo sapiens	Mutation(s): 0  Gene Names: ELOC, TCEB1
UniProt & NIH Common Fund Data Resources
Find proteins for Q15369 (Homo sapiens) Explore Q15369  Go to UniProtKB:  Q15369
PHAROS:  Q15369 GTEx:  ENSG00000154582

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

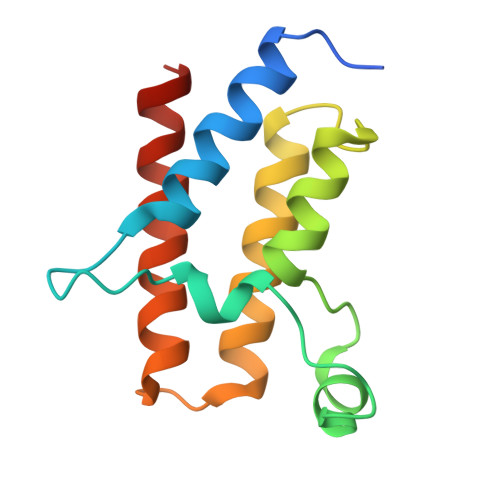

Probable global transcription activator SNF2L2	G, H	123	Homo sapiens	Mutation(s): 0  Gene Names: SMARCA2
UniProt & NIH Common Fund Data Resources
Find proteins for B4DNT1 (Homo sapiens) Explore B4DNT1  Go to UniProtKB:  B4DNT1
GTEx:  ENSG00000080503

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1A1U (Subject of Investigation/LOI)	I [auth A], J [auth D]	(4R)-1-[(2S)-2-{4-[(1S,4S)-4-({4-[(12'S)-4'-chloro-5'-oxo-5'H-spiro[cyclohexane-1,7'-indolo[1,2-a]quinazolin]-10'-yl]piperidin-1-yl}methyl)cyclohexyl]-1H-1,2,3-triazol-1-yl}-3,3-dimethylbutanoyl]-4-hydroxy-N-[(1R)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-2-(morpholin-4-yl)ethyl]-L-prolinamide C61 H75 Cl N10 O5 S BVUYRGJLEBFFDR-ORLXDOOTSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 3.30 Å
• R-Value Free:  0.286 (Depositor), 0.290 (DCC)
• R-Value Work:  0.207 (Depositor), 0.210 (DCC)
• R-Value Observed: 0.211 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 93.13	α = 90
b = 132.01	β = 90
c = 210.7	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
XDS	data reduction
MOLREP	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-08-20
Deposition Author(s): Strickland, C.

---

Funding Organization	Location	Grant Number
Other private	United States	--

Revision History

• Version 1.0: 2025-08-20
  Type: Initial release
