9C1S | pdb_00009c1s

Fab F946 in complex with OspC type A

• PDB DOI: https://doi.org/10.2210/pdb9C1S/pdb

• Classification: IMMUNE SYSTEM/ANTIGEN
• Organism(s): Homo sapiens, Borreliella burgdorferi B31
• Expression System: Cricetulus griseus, Escherichia coli B
• Mutation(s): No


• Deposited: 2024-05-29 Released: 2025-08-27
• Deposition Author(s): Rudolph, M.J., Mantis, N.
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.60 Å
• R-Value Free:
  0.251 (Depositor), 0.251 (DCC)
• R-Value Work:
  0.196 (Depositor), 0.196 (DCC)
• R-Value Observed:
  0.199 (Depositor)

Starting Models: experimental

Literature

Fab F946 in complex with OspC type A

Rudolph, M.J., Mantis, N.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Hetero 6-mer - A2B2C2

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 131.1 kDa
• Atom Count: 9,193
• Modeled Residue Count: 1,180
• Deposited Residue Count: 1,216
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
F946 Fab Heavy Chain	A [auth H], C [auth A]	230	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

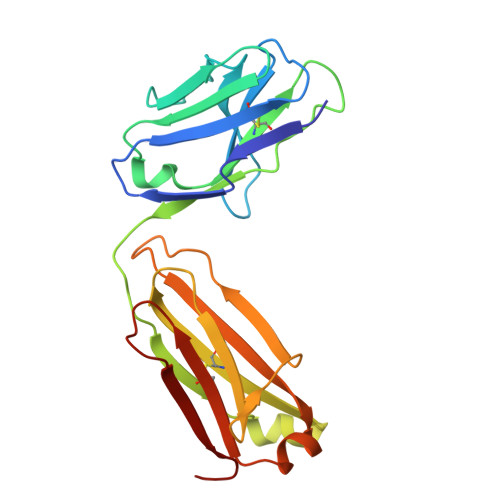

F946 Fab Light Chain	B [auth L], D [auth B]	214	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Outer surface protein C	E [auth C], F [auth D]	164	Borreliella burgdorferi B31	Mutation(s): 0  Gene Names: ospC, BB_B19
UniProt
Find proteins for Q07337 (Borreliella burgdorferi (strain ATCC 35210 / DSM 4680 / CIP 102532 / B31)) Explore Q07337  Go to UniProtKB:  Q07337

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.60 Å
• R-Value Free:  0.251 (Depositor), 0.251 (DCC)
• R-Value Work:  0.196 (Depositor), 0.196 (DCC)
• R-Value Observed: 0.199 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 79.815	α = 90
b = 95.141	β = 90
c = 182.968	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data reduction
HKL-2000	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-08-27
Deposition Author(s): Rudolph, M.J., Mantis, N.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	75N93019C00040

Revision History

• Version 1.0: 2025-08-27
  Type: Initial release
