9BRP | pdb_00009brp

Crystal Structure of Human G Protein-Coupled Receptor Kinase 5 in Complex with GRL047-22

• PDB DOI: https://doi.org/10.2210/pdb9BRP/pdb

• Classification: SIGNALING PROTEIN/INHIBITOR
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2024-05-11 Released: 2025-11-12
• Deposition Author(s): Chen, Y., Tesmer, J.J.G.
• Funding Organization(s): National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI), National Institutes of Health/National Center for Research Resources (NIH/NCRR)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.80 Å
• R-Value Free:
  0.283 (Depositor), 0.282 (DCC)
• R-Value Work:
  0.241 (Depositor), 0.240 (DCC)
• R-Value Observed:
  0.245 (Depositor)

Starting Model: in silico

Literature

G protein-coupled receptor kinase 5

Chen, Y., Tesmer, J.J.G.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 69.43 kDa
• Atom Count: 4,180
• Modeled Residue Count: 502
• Deposited Residue Count: 598
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

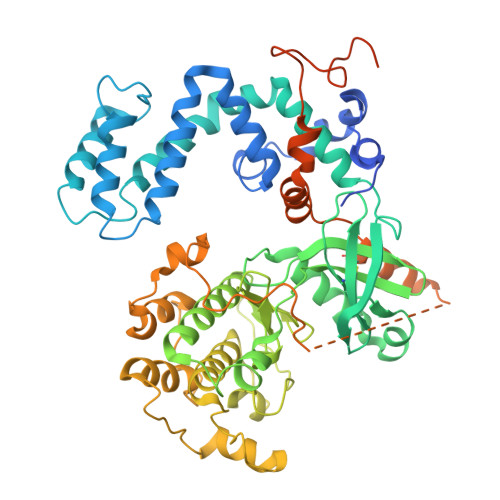

G protein-coupled receptor kinase 5	A	598	Homo sapiens	Mutation(s): 1  Gene Names: GRK5 EC: 2.7.11.16
UniProt & NIH Common Fund Data Resources
Find proteins for P34947 (Homo sapiens) Explore P34947  Go to UniProtKB:  P34947
PHAROS:  P34947 GTEx:  ENSG00000198873

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1ARF (Subject of Investigation/LOI)	B [auth A]	(3Z)-3-[(4-{[(2R)-2-methoxypropyl]carbamoyl}-3,5-dimethyl-1H-pyrrol-2-yl)methylidene]-2-oxo-N-[(1R)-1-phenylethyl]-3,7-dihydro-2H-indole-5-carboxamide C29 H32 N4 O4 KCTMKOYMOWPPFA-ZNAXHXMPSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.80 Å
• R-Value Free:  0.283 (Depositor), 0.282 (DCC)
• R-Value Work:  0.241 (Depositor), 0.240 (DCC)
• R-Value Observed: 0.245 (Depositor)

Space Group: P 4₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 139.883	α = 90
b = 139.883	β = 90
c = 72.312	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
DIALS	data reduction
xia2	data scaling
MOLREP	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-11-12
Deposition Author(s): Chen, Y., Tesmer, J.J.G.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Heart, Lung, and Blood Institute (NIH/NHLBI)	United States	HL071818
National Institutes of Health/National Center for Research Resources (NIH/NCRR)	United States	CA023168

Revision History

• Version 1.0: 2025-11-12
  Type: Initial release
