9B6U | pdb_00009b6u

Envelope protein ASU of YFV-17D in complex with 2C9 Fab


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

A single residue in the yellow fever virus envelope protein modulates virion architecture and antigenicity.

Bibby, S.Jung, J.Low, Y.S.Amarilla, A.A.Newton, N.D.Scott, C.A.P.Balk, J.Ting, Y.T.Freney, M.E.Liang, B.Grant, T.Coulibaly, F.Young, P.Hall, R.A.Hobson-Peters, J.Modhiran, N.Watterson, D.

(2025) Nat Commun 16: 8449-8449

  • DOI: https://doi.org/10.1038/s41467-025-63038-5
  • Primary Citation of Related Structures:
    9B6U, 9B6V, 9B6W, 9B6X, 9B6Y, 9B8G

  • PubMed Abstract:

    Yellow fever virus (YFV) is a re-emerging flavivirus that causes severe hepatic disease and mortality in humans. Despite being researched for over a century, the structure of YFV has remained elusive. Here we use a chimeric virus platform to resolve the first high resolution cryo-EM structures of YFV. Stark differences in particle morphology and homogeneity are observed between vaccine and virulent strains of YFV, and these are found to have significant implications on antibody recognition and neutralisation. We identify a single residue (R380) in the YFV 17D envelope protein that stabilises the virion surface, and leads to reduced exposure of the cross-reactive fusion loop epitope. The differences in virion morphology between YFV strains also contribute to the reduced sensitivity of the virulent YFV virions to vaccine-induced antibodies. These findings have significant implications for YFV biology, vaccinology and structure-based flavivirus antigen design.


  • Organizational Affiliation
    • School of Chemistry & Molecular Biosciences, The University of Queensland, St Lucia, QLD, Australia.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

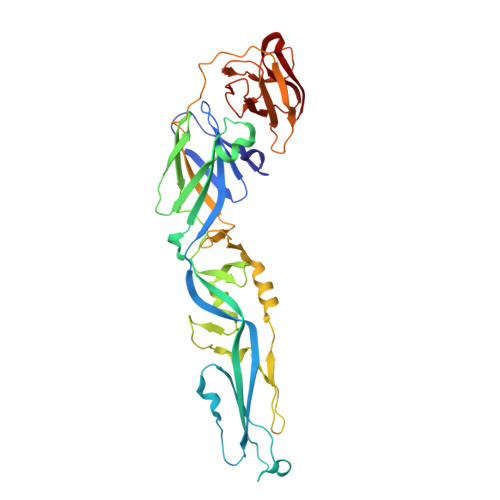

Envelope protein E
A, B, C
391Yellow fever virus 17DMutation(s): 1
UniProt
Find proteins for P03314 (Yellow fever virus (strain 17D vaccine))
Explore P03314
Go to UniProtKB:  P03314
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03314
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

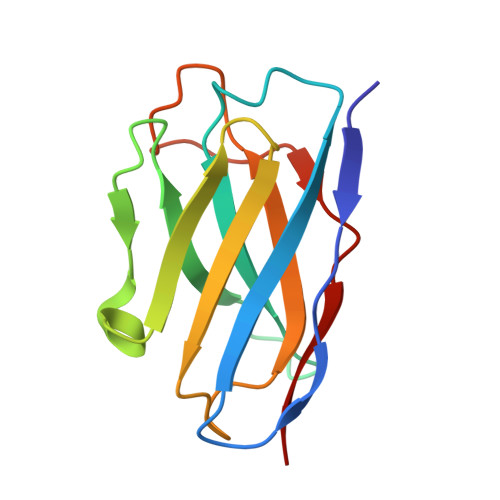

2C9 Fab heavy chain
D, F, H
120Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
2C9 Fab light chain
E, G, I
107Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.19.2
RECONSTRUCTIONcisTEM2.0.0

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Health and Medical Research Council (NHMRC, Australia)AustraliaAPP1164216
National Health and Medical Research Council (NHMRC, Australia)AustraliaAPP2004582

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-03
    Type: Initial release
  • Version 1.1: 2025-10-08
    Changes: Data collection, Database references
  • Version 1.2: 2025-10-15
    Changes: Data collection, Structure summary
