8ZM0 | pdb_00008zm0

A self-assembled nanofiber


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: 3D ARRAY
  • Reconstruction Method: HELICAL

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Water-regulated viscosity-plasticity phase transitions in a peptide self-assembled muscle-like hydrogel.

Fang, Y.Shi, J.Liang, J.Ma, D.Wang, H.

(2025) Nat Commun 16: 1058-1058

  • DOI: https://doi.org/10.1038/s41467-025-56415-7
  • Primary Citation of Related Structures:
    8ZM0

  • PubMed Abstract:

    The self-assembly of small molecules through non-covalent interactions is an emerging and promising strategy for building dynamic, stable, and large-scale structures. One remaining challenge is making the non-covalent interactions occur in the ideal positions to generate strength comparable to that of covalent bonds. This work shows that small molecule YAWF can self-assemble into a liquid-crystal hydrogel (LCH), the mechanical properties of which could be controlled by water. LCH can be used to construct stable solid threads with a length of over 1 meter by applying an external force on 2 µL of gel solution followed by water-regulated crystallization. These solid threads can support 250 times their weight. Cryogenic electron microscopy (Cryo-EM) analysis unravels the three-dimensional structure of the liquid-crystal fiber (elongated helix with C2 symmetry) at an atomic resolution. The multiscale mechanics of this material depend on the specificity of the molecular structure, and the water-controlled hierarchical and sophisticated self-assembly.


  • Organizational Affiliation
    • Department of Chemistry, Zhejiang University, Hangzhou, Zhejiang Province, China.

Macromolecules

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

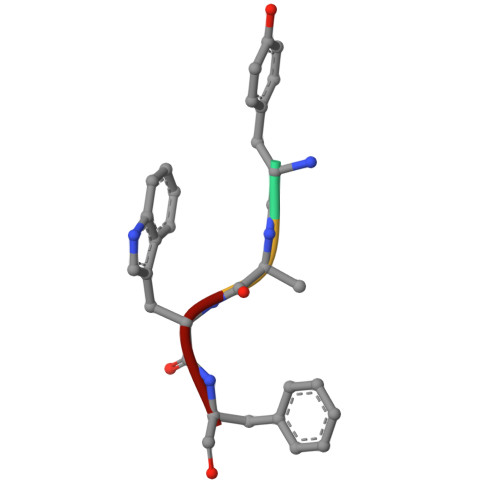

TYR-ALA-TRP-PHE4synthetic constructMutation(s): 0
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: 3D ARRAY
  • Reconstruction Method: HELICAL

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentChina2022YFB3808300

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-21
    Type: Initial release
  • Version 1.1: 2025-12-24
    Changes: Data collection, Database references
