8VS8 | pdb_00008vs8

Crystal structure of ADI-19425 Fab in complex with anti-idiotypic 1D3 Fab

• PDB DOI: https://doi.org/10.2210/pdb8VS8/pdb

• Classification: IMMUNE SYSTEM
• Organism(s): Homo sapiens
• Expression System: Homo sapiens
• Mutation(s): No


• Deposited: 2024-01-23 Released: 2024-09-18
• Deposition Author(s): Kher, G., Homad, L.J., McGuire, A.T., Pancera, M.
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.67 Å
• R-Value Free:
  0.273 (Depositor), 0.274 (DCC)
• R-Value Work:
  0.231 (Depositor), 0.232 (DCC)
• R-Value Observed:
  0.233 (Depositor)

Starting Models: experimental

Literature

A novel RSV vaccine candidate derived from anti-idiotypic antibodies targets putative neutralizing B-cells in bulk PBMCs

Scharffenberger, S., McGuire, A.T.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 4-mer - A3B1

Biological assembly 1 assigned by authors.

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 4-mer - A3B1

Biological assembly 2 assigned by authors.

Biological Assembly 3

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 4-mer - A2B2

Biological assembly 3 assigned by authors.

Biological Assembly 4

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 4-mer - A3B1

Biological assembly 4 assigned by authors.

Biological Assembly 5

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 4-mer - A3B1

Biological assembly 5 assigned by authors.

Biological Assembly 6

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 4-mer - A3B1

Biological assembly 6 assigned by authors.

Biological Assembly 7

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 4-mer - A2B2

Biological assembly 7 assigned by authors.

Biological Assembly 8

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1

Biological assembly 8 assigned by authors.

Macromolecule Content

• Total Structure Weight: 757.47 kDa
• Atom Count: 45,030
• Modeled Residue Count: 5,948
• Deposited Residue Count: 7,080
• Unique protein chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
ADI-19425 Heavy Chain	A, CA [auth c], E, I, M, Q, U, Y	227	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

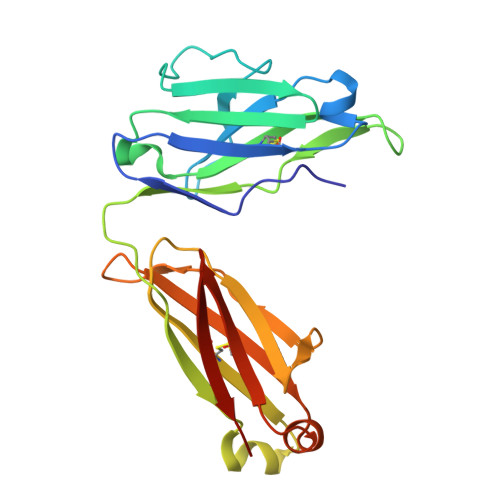

ADI-19425 Light Chain	B, DA [auth d], F, J, N, R, V, Z	218	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

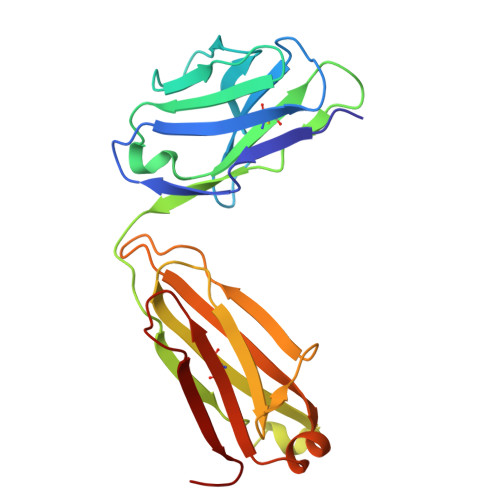

1D3 Light Chain	AA [auth a], C, EA [auth e], G, K, O, S, W	214	Homo sapiens	Mutation(s): 0

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

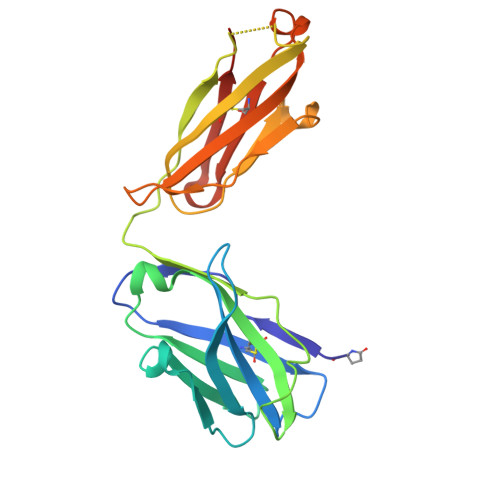

1D3 Heavy Chain	BA [auth b], D, FA [auth f], H, L, P, T, X	226	Homo sapiens	Mutation(s): 0

Small Molecules

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
PCA	B, DA [auth d], F, J, N, R, V, Z	L-PEPTIDE LINKING	C5 H7 N O3		GLN

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.67 Å
• R-Value Free:  0.273 (Depositor), 0.274 (DCC)
• R-Value Work:  0.231 (Depositor), 0.232 (DCC)
• R-Value Observed: 0.233 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 95.069	α = 83.98
b = 149.981	β = 89.9
c = 164.43	γ = 74.61

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHENIX	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2024-09-18
Deposition Author(s): Kher, G., Homad, L.J., McGuire, A.T., Pancera, M.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	R21AI156063

Revision History

• Version 1.0: 2024-09-18
  Type: Initial release

• Version 1.1: 2024-11-13
  Changes: Structure summary
