8VAZ | pdb_00008vaz

Structure of human Slo1 and human LRRC26 in EDTA - LRRD masked

PDB DOI: https://doi.org/10.2210/pdb8VAZ/pdb
EM Map EMD-43107: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No
Membrane Protein: Yes PDBTM MemProtMD

Deposited: 2023-12-11 Released: 2024-12-25
Deposition Author(s): Pal, K., Kallure, G.S., Chowdhury, S.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.82 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8VAZ

This is version 1.1 of the entry. See complete history.

Literature

Structure of human Slo1 and human LRRC26 in EDTA - LRRD masked

Pal, K., Kallure, G.S., Chowdhury, S.

To be published.

Macromolecule Content

Total Structure Weight: 623.68 kDa
Atom Count: 29,404
Modeled Residue Count: 3,704
Deposited Residue Count: 5,636
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

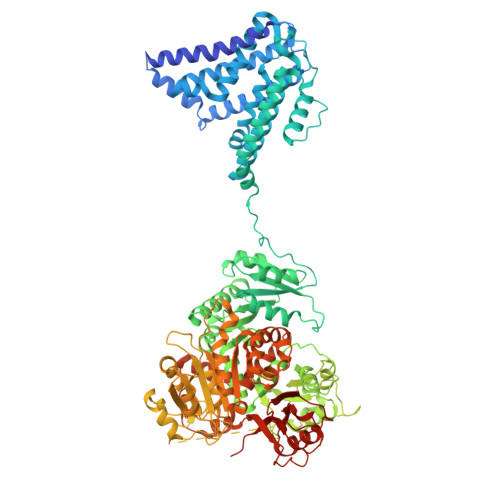

Calcium-activated potassium channel subunit alpha-1	A, B, C, D	1,065	Homo sapiens	Mutation(s): 0 Gene Names: KCNMA1, KCNMA, SLO Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for Q12791 (Homo sapiens) Explore Q12791 Go to UniProtKB: Q12791
PHAROS: Q12791 GTEx: ENSG00000156113
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q12791
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

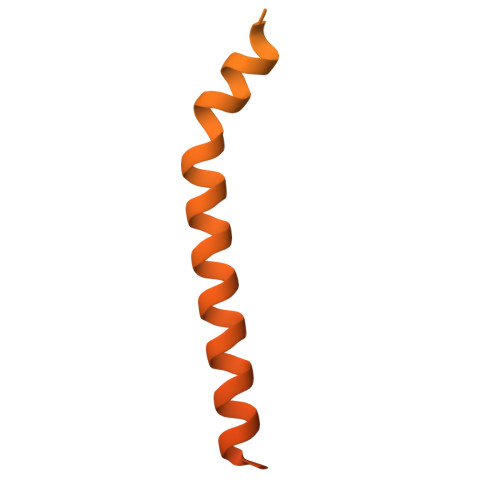

Leucine-rich repeat-containing protein 26	E, F, G, H	344	Homo sapiens	Mutation(s): 0 Gene Names: LRRC26 Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for Q2I0M4 (Homo sapiens) Explore Q2I0M4 Go to UniProtKB: Q2I0M4
PHAROS: Q2I0M4 GTEx: ENSG00000184709
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q2I0M4
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
K (Subject of Investigation/LOI) Query on K Download:Ideal Coordinates CCD File SDF format, chain L [auth D] SDF format, chain K [auth C] SDF format, chain J [auth B] SDF format, chain I [auth A] MOL2 format, chain L [auth D] MOL2 format, chain K [auth C] MOL2 format, chain J [auth B] MOL2 format, chain I [auth A] mmCIF format, chain L [auth D] mmCIF format, chain K [auth C] mmCIF format, chain J [auth B] mmCIF format, chain I [auth A]	I [auth A], J [auth B], K [auth C], L [auth D]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain J [auth B] Focus chain K [auth C] Focus chain L [auth D] Interactions & Density Focus chain I [auth A] Focus chain J [auth B] Focus chain K [auth C] Focus chain L [auth D]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.82 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2024-12-25

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	1R01GM145719

Revision History (Full details and data files)

Version 1.0: 2024-12-25
Type: Initial release
Version 1.1: 2025-05-14
Changes: Data collection
