8T3U | pdb_00008t3u

Cryo-EM Analysis of AE1 Structure in 100 mM NaCl Buffer: Form2

PDB DOI: https://doi.org/10.2210/pdb8T3U/pdb
EM Map EMD-41012: EMDB EMDataResource

Classification: TRANSLOCASE
Organism(s): Homo sapiens
Mutation(s): No
Membrane Protein: Yes PDBTM

Deposited: 2023-06-07 Released: 2024-05-22
Deposition Author(s): Su, C.C.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.97 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8T3U

This is version 1.2 of the entry. See complete history.

Literature

Cryo-EM structure of the band 3 anion transport protein

Su, C.-C.

To be published.

Macromolecule Content

Total Structure Weight: 206.95 kDa
Atom Count: 7,320
Modeled Residue Count: 906
Deposited Residue Count: 1,822
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

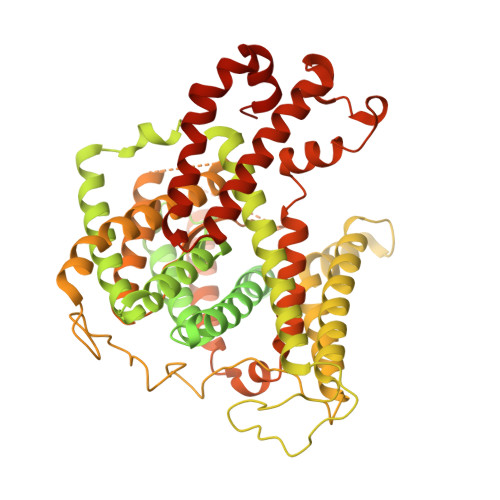

Band 3 anion transport protein	A, B	911	Homo sapiens	Mutation(s): 0 Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for P02730 (Homo sapiens) Explore P02730 Go to UniProtKB: P02730
PHAROS: P02730 GTEx: ENSG00000004939
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P02730
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain A Focus chain B	Go to GlyGen: P02730-1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PIO Query on PIO Download:Ideal Coordinates CCD File SDF format, chain F [auth B] SDF format, chain E [auth A] MOL2 format, chain F [auth B] MOL2 format, chain E [auth A] mmCIF format, chain F [auth B] mmCIF format, chain E [auth A]	E [auth A], F [auth B]	[(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate C₂₅ H₄₉ O₁₉ P₃ XLNCEHRXXWQMPK-MJUMVPIBSA-N		Interactions Focus chain E [auth A] Focus chain F [auth B] Interactions & Density Focus chain E [auth A] Focus chain F [auth B]
PLC Query on PLC Download:Ideal Coordinates CCD File SDF format, chain G [auth B] SDF format, chain D [auth A] MOL2 format, chain G [auth B] MOL2 format, chain D [auth A] mmCIF format, chain G [auth B] mmCIF format, chain D [auth A]	D [auth A], G [auth B]	DIUNDECYL PHOSPHATIDYL CHOLINE C₃₂ H₆₅ N O₈ P IJFVSSZAOYLHEE-SSEXGKCCSA-O		Interactions Focus chain D [auth A] Focus chain G [auth B] Interactions & Density Focus chain D [auth A] Focus chain G [auth B]
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain H [auth B] SDF format, chain C [auth A] MOL2 format, chain H [auth B] MOL2 format, chain C [auth A] mmCIF format, chain H [auth B] mmCIF format, chain C [auth A]	C [auth A], H [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain C [auth A] Focus chain H [auth B] Interactions & Density Focus chain C [auth A] Focus chain H [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.97 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2024-05-22

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	--

Revision History (Full details and data files)

Version 1.0: 2024-05-22
Type: Initial release
Version 1.1: 2024-11-13
Changes: Data collection, Structure summary
Version 1.2: 2025-05-14
Changes: Data collection
