8R16

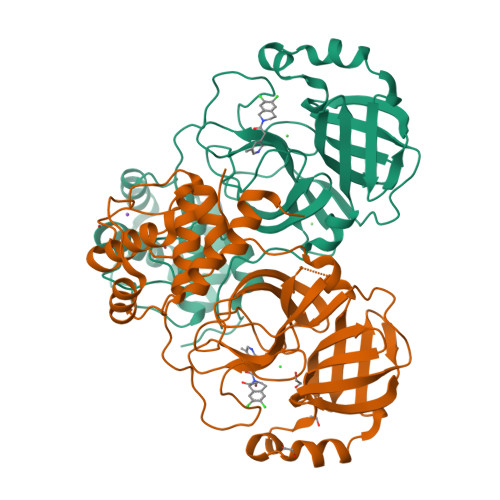

Structure of compound 12 bound to SARS-CoV-2 main protease

PDB DOI: https://doi.org/10.2210/pdb8R16/pdb

Classification: HYDROLASE
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2023-11-01 Released: 2024-02-07
Deposition Author(s): Mac Sweeney, A., Hazemann, J.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.30 Å
R-Value Free: 0.206
R-Value Work: 0.181
R-Value Observed: 0.182

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Identification of SARS-CoV-2 Mpro inhibitors through deep reinforcement learning for de novo drug design and computational chemistry approaches

Mac Sweeney, A., Hazemann, J.

To be published.

Macromolecule Content

Total Structure Weight: 68.89 kDa
Atom Count: 5,515
Modelled Residue Count: 608
Deposited Residue Count: 612
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
3C-like proteinase	A, B	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 EC: 3.4.22.69
UniProt
Find proteins for P0DTC1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC1 Go to UniProtKB: P0DTC1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTC1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
XJ9 (Subject of Investigation/LOI) Query on XJ9 Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain H [auth B] MOL2 format, chain C [auth A] MOL2 format, chain H [auth B]	C [auth A], H [auth B]	1-[6,7-bis(chloranyl)-3,4-dihydro-1H-isoquinolin-2-yl]-2-(5-methylpyridin-3-yl)ethanone C₁₇ H₁₆ Cl₂ N₂ O PTVWECVVWMUSOK-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain H [auth B] Interactions & Density Focus chain C [auth A] Focus chain H [auth B]
BR Query on BR Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain O [auth B] MOL2 format, chain G [auth A] MOL2 format, chain O [auth B]	G [auth A], O [auth B]	BROMIDE ION Br CPELXLSAUQHCOX-UHFFFAOYSA-M		Interactions Focus chain G [auth A] Focus chain O [auth B] Interactions & Density Focus chain G [auth A] Focus chain O [auth B]
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth B] SDF format, chain L [auth B] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B]	I [auth B], J [auth B], K [auth B], L [auth B]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Interactions & Density Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain N [auth B] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain N [auth B]	D [auth A], E [auth A], F [auth A], N [auth B]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain N [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain N [auth B]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain M [auth B] MOL2 format, chain M [auth B]	M [auth B]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain M [auth B] Interactions & Density Focus chain M [auth B]
