8GQG | pdb_00008gqg

Crystal structure of Thioloase from Pseudomonas aeruginosa PAO1

PDB DOI: https://doi.org/10.2210/pdb8GQG/pdb

Classification: TRANSFERASE
Organism(s): Pseudomonas aeruginosa PAO1
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2022-08-30 Released: 2024-03-13
Deposition Author(s): Hong, J., Son, H.F., Kim, K.J.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.80 Å
R-Value Free:
0.207 (Depositor), 0.214 (DCC)
R-Value Work:
0.172 (Depositor), 0.182 (DCC)
R-Value Observed:
0.173 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8GQG

This is version 1.1 of the entry. See complete history.

Literature

Structure of thiolase from Pseudomonas aeruginosa PAO1

Hong, J., Son, H.F., Kim, K.J.

To be published.

Macromolecule Content

Total Structure Weight: 258.99 kDa
Atom Count: 19,363
Modeled Residue Count: 2,345
Deposited Residue Count: 2,412
Unique protein chains: 1

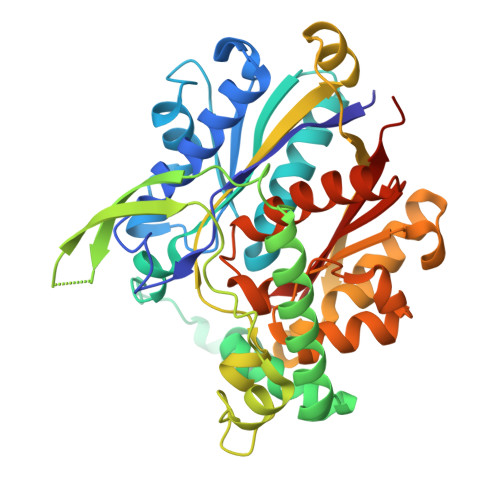

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Thiolase	A, B, C, D, E A, B, C, D, E, F	402	Pseudomonas aeruginosa PAO1	Mutation(s): 0 Gene Names: PA3454 EC: 2.3.1.16
UniProt
Find proteins for Q9HYF2 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HYF2 Go to UniProtKB: Q9HYF2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HYF2
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.80 Å
R-Value Free: 0.207 (Depositor), 0.214 (DCC)
R-Value Work: 0.172 (Depositor), 0.182 (DCC)
R-Value Observed: 0.173 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 118.223	α = 90
b = 204.782	β = 90
c = 262.127	γ = 90

Software Package:

Software Name	Purpose
HKL-2000	data scaling
REFMAC	refinement
PDB_EXTRACT	data extraction
HKL-2000	data reduction
MOLREP	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2024-03-13

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2024-03-13
Type: Initial release
Version 1.1: 2026-03-04
Changes: Refinement description, Structure summary
