8DN0

E.coli DsbA in complex with N-(2-fluorophenyl)-5-methylisoxazole-3-carboxamide

• PDB DOI: https://doi.org/10.2210/pdb8DN0/pdb

• Classification: OXIDOREDUCTASE/INHIBITOR
• Organism(s): Escherichia coli K-12
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2022-07-10 Released: 2023-06-21
• Deposition Author(s): Wang, G., Heras, B.
• Funding Organization(s): National Health and Medical Research Council (NHMRC, Australia)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.57 Å
• R-Value Free: 0.194
• R-Value Work: 0.171
• R-Value Observed: 0.172

Literature

E.coli DsbA in complex with N-(2-fluorophenyl)-5-methylisoxazole-3-carboxamide

Wang, G., Heras, B.

To be published.

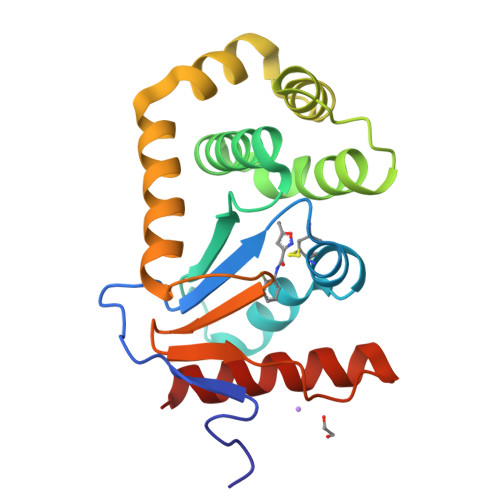

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

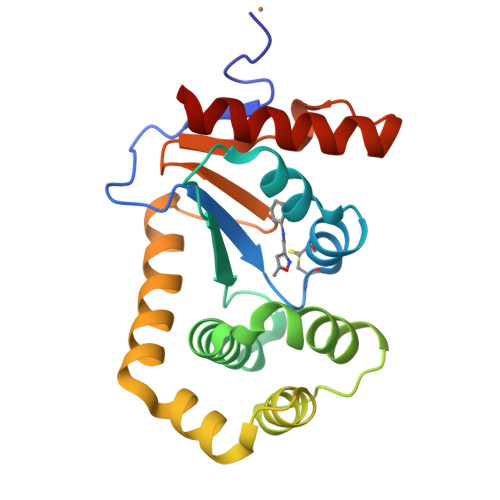

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 42.9 kDa
• Atom Count: 3,549
• Modelled Residue Count: 376
• Deposited Residue Count: 378
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Thiol:disulfide interchange protein DsbA	A, B	189	Escherichia coli K-12	Mutation(s): 0  Gene Names: dsbA, dsf, ppfA, b3860, JW3832
UniProt
Find proteins for P0AEG4 (Escherichia coli (strain K12)) Explore P0AEG4  Go to UniProtKB:  P0AEG4

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
SW0 (Subject of Investigation/LOI)	C [auth A], F [auth B]	N-(2-fluorophenyl)-5-methyl-1,2-oxazole-3-carboxamide C11 H9 F N2 O2 VZLZHRVTOSUIPW-UHFFFAOYSA-N
CU	G [auth B]	COPPER (II) ION Cu JPVYNHNXODAKFH-UHFFFAOYSA-N
EDO	D [auth A]	1,2-ETHANEDIOL C2 H6 O2 LYCAIKOWRPUZTN-UHFFFAOYSA-N
NA	E [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.57 Å
• R-Value Free: 0.194
• R-Value Work: 0.171
• R-Value Observed: 0.172
• Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 114.84	α = 90
b = 65.5	β = 125.98
c = 74.89	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
PDB_EXTRACT	data extraction
MOSFLM	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2023-06-21
Deposition Author(s): Wang, G., Heras, B.

---

Funding Organization	Location	Grant Number
National Health and Medical Research Council (NHMRC, Australia)	Australia	GNT1099151

Revision History

• Version 1.0: 2023-06-21
  Type: Initial release

• Version 1.1: 2023-10-25
  Changes: Data collection, Refinement description
