7WFF

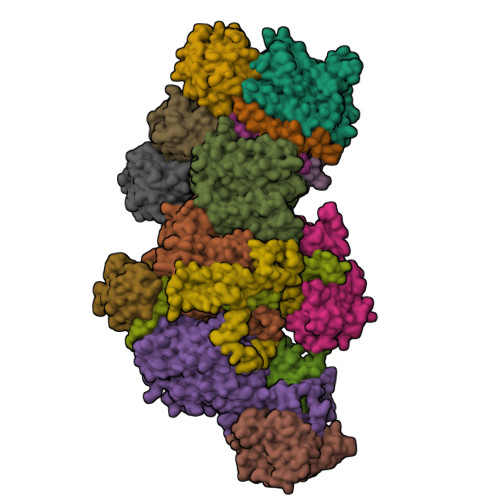

Subcomplexes B,M and L in the Cylic electron transfer supercomplex NDH-PSI from Arabidopsis


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.59 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Supramolecular assembly of chloroplast NADH dehydrogenase-like complex with photosystem I from Arabidopsis thaliana.

Su, X.Cao, D.Pan, X.Shi, L.Liu, Z.Dall'Osto, L.Bassi, R.Zhang, X.Li, M.

(2022) Mol Plant 15: 454-467

  • DOI: 10.1016/j.molp.2022.01.020
  • Primary Citation of Related Structures:
    7WFD, 7WFE, 7WFF, 7WFG, 7WG5

  • PubMed Abstract:
  • Cyclic electron transport/flow (CET/CEF) in chloroplasts is a regulatory process essential for the optimization of plant photosynthetic efficiency. A crucial CEF pathway is catalyzed by a membrane-embedded NADH dehydrogenase-like (NDH) complex that contains at least 29 protein subunits and associates with photosystem I (PSI) to form the NDH-PSI supercomplex ...

    Cyclic electron transport/flow (CET/CEF) in chloroplasts is a regulatory process essential for the optimization of plant photosynthetic efficiency. A crucial CEF pathway is catalyzed by a membrane-embedded NADH dehydrogenase-like (NDH) complex that contains at least 29 protein subunits and associates with photosystem I (PSI) to form the NDH-PSI supercomplex. Here, we report the 3.9 Å resolution structure of the Arabidopsis thaliana NDH-PSI (AtNDH-PSI) supercomplex. We constructed structural models for 26 AtNDH subunits, among which 11 are unique to chloroplasts and stabilize the core part of the NDH complex. In the supercomplex, one NDH can bind up to two PSI-light-harvesting complex I (PSI-LHCI) complexes at both sides of its membrane arm. Two minor LHCIs, Lhca5 and Lhca6, each present in one PSI-LHCI, interact with NDH and contribute to supercomplex formation and stabilization. Collectively, our study reveals the structural details of the AtNDH-PSI supercomplex assembly and provides a molecular basis for further investigation of the regulatory mechanism of CEF in plants.


    Organizational Affiliation

    National Laboratory of Biomacromolecules, CAS Center for Excellence in Biomacromolecules, Institute of Biophysics, Chinese Academy of Sciences, Beijing 100101, P.R. China. Electronic address: meili@ibp.ac.cn.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
NAD(P)H-quinone oxidoreductase subunit 1, chloroplasticA360Arabidopsis thalianaMutation(s): 0
Gene Names: ndhAAtCg01100
EC: 7.1.1
Membrane Entity: Yes
UniProt
Find proteins for Q37165 (Arabidopsis thaliana)
Explore Q37165
Go to UniProtKB:  Q37165
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ37165
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
NAD(P)H-quinone oxidoreductase subunit 2, chloroplasticB512Arabidopsis thalianaMutation(s): 0
Gene Names: ndhB
EC: 7.1.1
Membrane Entity: Yes
UniProt
Find proteins for A0A1B1W4Z4 (Arabidopsis thaliana)
Explore A0A1B1W4Z4
Go to UniProtKB:  A0A1B1W4Z4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A1B1W4Z4
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChainsSequence LengthOrganismDetailsImage
NAD(P)H-quinone oxidoreductase subunit 3, chloroplasticC120Arabidopsis thalianaMutation(s): 0
Gene Names: ndhCAtCg00440
EC: 7.1.1
Membrane Entity: Yes
UniProt
Find proteins for P56751 (Arabidopsis thaliana)
Explore P56751
Go to UniProtKB:  P56751
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP56751
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChainsSequence LengthOrganismDetailsImage
NAD(P)H-quinone oxidoreductase chain 4, chloroplasticD506Arabidopsis thalianaMutation(s): 0
Gene Names: ndhD
EC: 7.1.1
Membrane Entity: Yes
UniProt
Find proteins for A0A1B1W4Z0 (Arabidopsis thaliana)
Explore A0A1B1W4Z0
Go to UniProtKB:  A0A1B1W4Z0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A1B1W4Z0
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChainsSequence LengthOrganismDetailsImage
NAD(P)H-quinone oxidoreductase subunit 4L, chloroplasticE101Arabidopsis thalianaMutation(s): 0
Gene Names: ndhEAtCg01070
EC: 7.1.1
Membrane Entity: Yes
UniProt
Find proteins for P26289 (Arabidopsis thaliana)
Explore P26289
Go to UniProtKB:  P26289
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP26289
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChainsSequence LengthOrganismDetailsImage
NAD(P)H-quinone oxidoreductase subunit 5, chloroplasticF746Arabidopsis thalianaMutation(s): 0
Gene Names: ndhFAtCg01010
EC: 7.1.1
Membrane Entity: Yes
UniProt
Find proteins for P56752 (Arabidopsis thaliana)
Explore P56752
Go to UniProtKB:  P56752
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP56752
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChainsSequence LengthOrganismDetailsImage
NAD(P)H-quinone oxidoreductase subunit 6, chloroplasticG176Arabidopsis thalianaMutation(s): 0
Gene Names: ndhGAtCg01080
EC: 7.1.1
Membrane Entity: Yes
UniProt
Find proteins for Q95695 (Arabidopsis thaliana)
Explore Q95695
Go to UniProtKB:  Q95695
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ95695
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChainsSequence LengthOrganismDetailsImage
Photosynthetic NDH subunit of subcomplex B 1, chloroplasticH [auth a]461Arabidopsis thalianaMutation(s): 0
Gene Names: PNSB1GT9NDF1NDH48At1g15980T24D18.8
Membrane Entity: Yes
UniProt
Find proteins for Q9S9N6 (Arabidopsis thaliana)
Explore Q9S9N6
Go to UniProtKB:  Q9S9N6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9S9N6
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChainsSequence LengthOrganismDetailsImage
Photosynthetic NDH subunit of subcomplex B 2, chloroplasticI [auth b]348Arabidopsis thalianaMutation(s): 0
Gene Names: PNSB2NDF2NDH45At1g64770F13O11.8
Membrane Entity: Yes
UniProt
Find proteins for Q94AQ8 (Arabidopsis thaliana)
Explore Q94AQ8
Go to UniProtKB:  Q94AQ8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ94AQ8
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChainsSequence LengthOrganismDetailsImage
Photosynthetic NDH subunit of subcomplex B 3, chloroplasticJ [auth c]204Arabidopsis thalianaMutation(s): 0
Gene Names: PNSB3NDF4At3g16250MYA6.6
Membrane Entity: Yes
UniProt
Find proteins for Q9LU21 (Arabidopsis thaliana)
Explore Q9LU21
Go to UniProtKB:  Q9LU21
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9LU21
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChainsSequence LengthOrganismDetailsImage
NDH dependent flow 6K [auth d]161Arabidopsis thalianaMutation(s): 0
Gene Names: PnsB4NDF6NDH dependent flow 6At1g18730F6A14.16F6A14_16
Membrane Entity: Yes
UniProt
Find proteins for B3H6Z4 (Arabidopsis thaliana)
Explore B3H6Z4
Go to UniProtKB:  B3H6Z4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupB3H6Z4
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChainsSequence LengthOrganismDetailsImage
Photosynthetic NDH subunit of subcomplex B 5, chloroplasticL [auth e]212Arabidopsis thalianaMutation(s): 0
Gene Names: PNSB5NDH18At5g43750MQD19.9
Membrane Entity: Yes
UniProt
Find proteins for Q9FG89 (Arabidopsis thaliana)
Explore Q9FG89
Go to UniProtKB:  Q9FG89
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9FG89
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChainsSequence LengthOrganismDetailsImage
Photosynthetic NDH subunit of lumenal location 1, chloroplasticM [auth f]238Arabidopsis thalianaMutation(s): 0
Gene Names: PNSL1PPL2At2g39470F12L6.13
Membrane Entity: Yes
UniProt
Find proteins for O80634 (Arabidopsis thaliana)
Explore O80634
Go to UniProtKB:  O80634
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO80634
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChainsSequence LengthOrganismDetailsImage
Photosynthetic NDH subunit of lumenal location 2, chloroplasticN [auth g]190Arabidopsis thalianaMutation(s): 0
Gene Names: PNSL2PQL1PQL2At1g14150F7A19.23
Membrane Entity: Yes
UniProt
Find proteins for Q9XI73 (Arabidopsis thaliana)
Explore Q9XI73
Go to UniProtKB:  Q9XI73
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9XI73
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChainsSequence LengthOrganismDetailsImage
Photosynthetic NDH subunit of lumenal location 3, chloroplasticO [auth h]220Arabidopsis thalianaMutation(s): 0
Gene Names: PNSL3PQL1PQL2At3g01440T13O15.8
Membrane Entity: Yes
UniProt
Find proteins for Q9SGH4 (Arabidopsis thaliana)
Explore Q9SGH4
Go to UniProtKB:  Q9SGH4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9SGH4
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChainsSequence LengthOrganismDetailsImage
Photosynthetic NDH subunit of lumenal location 4, chloroplasticP [auth i]217Arabidopsis thalianaMutation(s): 0
Gene Names: PNSL4FKBP16-2FKBP22-2FKBP23IAt4g39710T19P19.100
EC: 5.2.1.8
Membrane Entity: Yes
UniProt
Find proteins for Q9SCY3 (Arabidopsis thaliana)
Explore Q9SCY3
Go to UniProtKB:  Q9SCY3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9SCY3
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChainsSequence LengthOrganismDetailsImage
Isoform 2 of Photosynthetic NDH subunit of lumenal location 5, chloroplasticQ [auth j]255Arabidopsis thalianaMutation(s): 0
Gene Names: PNSL5CYP20-2At5g13120T19L5_80
EC: 5.2.1.8
Membrane Entity: Yes
UniProt
Find proteins for Q9ASS6 (Arabidopsis thaliana)
Explore Q9ASS6
Go to UniProtKB:  Q9ASS6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9ASS6
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
SQD
Query on SQD

Download Ideal Coordinates CCD File
T [auth F]1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL
C41 H78 O12 S
RVUUQPKXGDTQPG-JUDHQOGESA-N
 Ligand Interaction
LHG
Query on LHG

Download Ideal Coordinates CCD File
R [auth D],
S [auth F]
1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE
C38 H75 O10 P
BIABMEZBCHDPBV-MPQUPPDSSA-N
 Ligand Interaction
FES (Subject of Investigation/LOI)
Query on FES

Download Ideal Coordinates CCD File
U [auth c]FE2/S2 (INORGANIC) CLUSTER
Fe2 S2
NIXDOXVAJZFRNF-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.59 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China2017YFA0503702
Chinese Academy of SciencesChinaXDB27020106
National Natural Science Foundation of China (NSFC)China31770778
National Natural Science Foundation of China (NSFC)China31930064
National Natural Science Foundation of China (NSFC)China31970264

Revision History  (Full details and data files)

  • Version 1.0: 2022-03-16
    Type: Initial release
