7G2M | pdb_00007g2m

Crystal Structure of rat Autotaxin in complex with 5-fluoro-6-[2-[3-[2-[(5-methyltetrazol-2-yl)methyl]-4-(trifluoromethyl)phenyl]propanoyl]-1,3,4,6-tetrahydropyrrolo[3,4-c]pyrrole-5-carbonyl]pyridine-3-sulfonamide, i.e. SMILES C12=C(CN(C1)C(=O)CCc1ccc(cc1CN1N=NC(=N1)C)C(F)(F)F)CN(C2)C(=O)c1ncc(cc1F)S(=O)(=O)N with IC50=0.0018642 microM

• PDB DOI: https://doi.org/10.2210/pdb7G2M/pdb
• Deposition Group: G_1002267 | Explore  G_1002267

• Classification: HYDROLASE
• Organism(s): Rattus norvegicus
• Expression System: Homo sapiens
• Mutation(s): Yes


• Deposited: 2023-06-05 Released: 2024-12-18
• Deposition Author(s): Stihle, M., Benz, J., Hunziker, D., Mattei, P., Rudolph, M.G.
• Funding Organization(s): F. Hoffmann-La Roche LTD

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.41 Å
• R-Value Free:
  0.245 (Depositor), 0.244 (DCC)
• R-Value Work:
  0.189 (Depositor), 0.193 (DCC)
• R-Value Observed:
  0.192 (Depositor)

Starting Model: experimental

Literature

Crystal Structure of a rat Autotaxin complex

Hunziker, D., Joachim, S.C., Ullmer, C., Rudolph, M.G.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 99.6 kDa
• Atom Count: 6,861
• Modeled Residue Count: 804
• Deposited Residue Count: 846
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

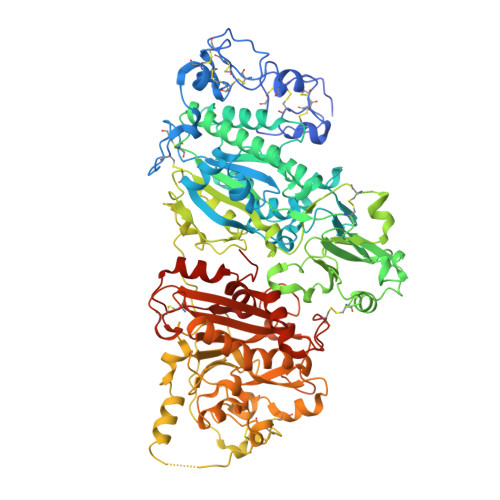

Isoform 2 of Ectonucleotide pyrophosphatase/phosphodiesterase family member 2	A	846	Rattus norvegicus	Mutation(s): 3  Gene Names: Enpp2, Atx, Npps2 EC: 3.1.4.39 (PDB Primary Data), 3.1.4.4 (UniProt)
UniProt
Find proteins for Q64610 (Rattus norvegicus) Explore Q64610  Go to UniProtKB:  Q64610
Glycosylation
Glycosylation Sites: 1		Go to GlyGen: Q64610-1

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	B	8		N-Glycosylation
Glycosylation Resources
GlyTouCan: G33303XH GlyCosmos: G33303XH GlyGen: G33303XH

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
YQ5 (Subject of Investigation/LOI)	C [auth A]	5-fluoro-6-[5-(3-{2-[(5-methyl-2H-tetrazol-2-yl)methyl]-4-(trifluoromethyl)phenyl}propanoyl)-3,4,5,6-tetrahydropyrrolo[3,4-c]pyrrole-2(1H)-carbonyl]pyridine-3-sulfonamide C25 H24 F4 N8 O4 S KZWCVIBEUNXBPZ-UHFFFAOYSA-N
ZN	E [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N
ACT	D [auth A]	ACETATE ION C2 H3 O2 QTBSBXVTEAMEQO-UHFFFAOYSA-M
CA	G [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N
CL	I [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M
NA	F [auth A], H [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.41 Å
• R-Value Free:  0.245 (Depositor), 0.244 (DCC)
• R-Value Work:  0.189 (Depositor), 0.193 (DCC)
• R-Value Observed: 0.192 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 83.891	α = 90
b = 91.227	β = 90
c = 119.009	γ = 90

Software Package:

Software Name	Purpose
XSCALE	data scaling
REFMAC	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2024-12-18
Deposition Author(s): Stihle, M., Benz, J., Hunziker, D., Mattei, P., Rudolph, M.G.

---

Funding Organization	Location	Grant Number
F. Hoffmann-La Roche LTD	Switzerland	--

Revision History

• Version 1.0: 2024-12-18
  Type: Initial release
