7DJC

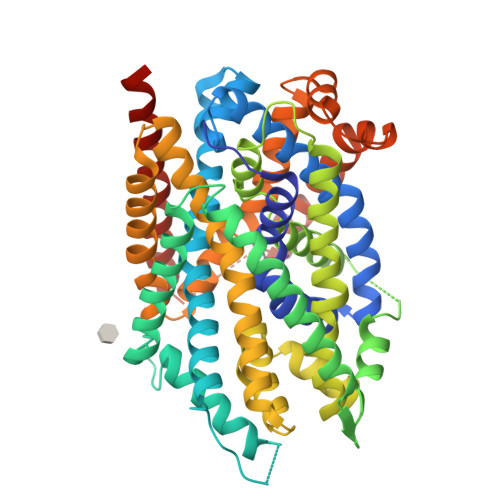

Crystal structure of the G26C/Q250A mutant of LeuT


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.242
  • R-Value Work: 0.206
  • R-Value Observed: 0.208

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Crystal structures of LeuT reveal conformational dynamics in the outward-facing states.

Fan, J.Xiao, Y.Quick, M.Yang, Y.Sun, Z.Javitch, J.A.Zhou, X.

(2021) J Biol Chem 296: 100609-100609

  • DOI: 10.1016/j.jbc.2021.100609
  • Primary Citation of Related Structures:
    7DII, 7DIX, 7DJ1, 7DJ2, 7DJC

  • PubMed Abstract:
  • The neurotransmitter:sodium symporter (NSS) homolog LeuT from Aquifex aeolicus has proven to be a valuable model for studying the transport mechanism of the NSS family. Crystal structures have captured LeuT in key conformations visited during the transport cycle, allowing for the construction of a nearly complete model of transport, with much of the conformational dynamics studied by computational simulations ...

    The neurotransmitter:sodium symporter (NSS) homolog LeuT from Aquifex aeolicus has proven to be a valuable model for studying the transport mechanism of the NSS family. Crystal structures have captured LeuT in key conformations visited during the transport cycle, allowing for the construction of a nearly complete model of transport, with much of the conformational dynamics studied by computational simulations. Here, we report crystal structures of LeuT representing new intermediate conformations between the outward-facing open and occluded states. These structures, combined with binding and accessibility studies, reveal details of conformational dynamics that can follow substrate binding at the central substrate binding site (S1) of LeuT in outward-facing states, suggesting a potential competition for direction between the outward-open and outward-occluded states at this stage during substrate transport. Our structures further support an intimate interplay between the protonation state of Glu290 and binding of Na1 that may ultimately regulate the outward-open-to-occluded transition.


    Organizational Affiliation

    Department of Integrated Traditional Chinese and Western Medicine, Rare Diseases Center, State Key Laboratory of Biotherapy, West China Hospital, Sichuan University, Chengdu, Sichuan, China. Electronic address: x.zhou@scu.edu.cn.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Na(+):neurotransmitter symporter (Snf family)A513Aquifex aeolicusMutation(s): 2
Membrane Entity: Yes
UniProt
Find proteins for O67854 (Aquifex aeolicus (strain VF5))
Explore O67854
Go to UniProtKB:  O67854
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO67854
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
BOG
Query on BOG

Download Ideal Coordinates CCD File
E [auth A]octyl beta-D-glucopyranoside
C14 H28 O6
HEGSGKPQLMEBJL-RKQHYHRCSA-N
 Ligand Interaction
LEU (Subject of Investigation/LOI)
Query on LEU

Download Ideal Coordinates CCD File
B [auth A]LEUCINE
C6 H13 N O2
ROHFNLRQFUQHCH-YFKPBYRVSA-N
 Ligand Interaction
NA (Subject of Investigation/LOI)
Query on NA

Download Ideal Coordinates CCD File
C [auth A],
D [auth A]
SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.242
  • R-Value Work: 0.206
  • R-Value Observed: 0.208
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 90.758α = 90
b = 87.606β = 94.35
c = 81.813γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China31770783

Revision History  (Full details and data files)

  • Version 1.0: 2021-04-07
    Type: Initial release
  • Version 1.1: 2021-04-21
    Changes: Database references
  • Version 1.2: 2021-07-21
    Changes: Database references
