6SP8 | pdb_00006sp8

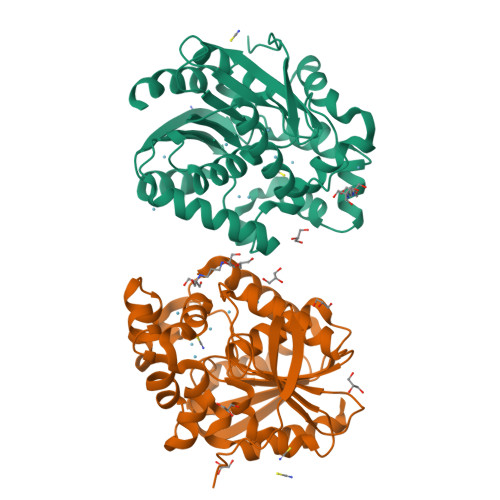

Structure of hyperstable haloalkane dehalogenase variant DhaA115 prepared by the 'soak-and-freeze' method under 150 bar of krypton pressure


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.55 Å
  • R-Value Free:
    0.181 (Depositor), 0.167 (DCC)
  • R-Value Work:
    0.160 (Depositor), 0.165 (DCC)
  • R-Value Observed:
    0.161 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 6SP8

Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history

Literature

Decoding the intricate network of molecular interactions of a hyperstable engineered biocatalyst.

Markova, K.Chmelova, K.Marques, S.M.Carpentier, P.Bednar, D.Damborsky, J.Marek, M.

(2020) Chem Sci 11: 11162-11178

  • DOI: https://doi.org/10.1039/d0sc03367g
  • Primary Citation Related Structures:
    6SP5, 6SP8

  • PubMed Abstract:

    Computational design of protein catalysts with enhanced stabilities for use in research and enzyme technologies is a challenging task. Using force-field calculations and phylogenetic analysis, we previously designed the haloalkane dehalogenase DhaA115 which contains 11 mutations that confer upon it outstanding thermostability ( T m = 73.5 °C; Δ T m > 23 °C). An understanding of the structural basis of this hyperstabilization is required in order to develop computer algorithms and predictive tools. Here, we report X-ray structures of DhaA115 at 1.55 Å and 1.6 Å resolutions and their molecular dynamics trajectories, which unravel the intricate network of interactions that reinforce the αβα-sandwich architecture. Unexpectedly, mutations toward bulky aromatic amino acids at the protein surface triggered long-distance (∼27 Å) backbone changes due to cooperative effects. These cooperative interactions produced an unprecedented double-lock system that: (i) induced backbone changes, (ii) closed the molecular gates to the active site, (iii) reduced the volumes of the main and slot access tunnels, and (iv) occluded the active site. Despite these spatial restrictions, experimental tracing of the access tunnels using krypton derivative crystals demonstrates that transport of ligands is still effective. Our findings highlight key thermostabilization effects and provide a structural basis for designing new thermostable protein catalysts.


  • Organizational Affiliation
    • Loschmidt Laboratories, Department of Experimental Biology and RECETOX, Faculty of Science, Masaryk University Kamenice 5 625 00 Brno Czech Republic jiri@chemi.muni.cz martin.marek@recetox.muni.cz.

Macromolecule Content

  • Total Structure Weight: 70.21 kDa
  • Atom Count: 5,574
  • Modeled Residue Count: 582
  • Deposited Residue Count: 582
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Haloalkane dehalogenase
A, B
291Rhodococcus rhodochrousMutation(s): 11
Gene Names: dhaA
EC: 3.8.1.5
UniProt
Find proteins for P0A3G2 (Rhodococcus rhodochrous)
Explore P0A3G2
Go to UniProtKB:  P0A3G2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A3G2
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
B3P
(Subject of Investigation/LOI)

Query on B3P



Download:Ideal Coordinates CCD File
GA [auth B],
R [auth A]
2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
C11 H26 N2 O6
HHKZCCWKTZRCCL-UHFFFAOYSA-N
GOL
(Subject of Investigation/LOI)

Query on GOL



Download:Ideal Coordinates CCD File
HA [auth B]
IA [auth B]
JA [auth B]
KA [auth B]
LA [auth B]
HA [auth B],
IA [auth B],
JA [auth B],
KA [auth B],
LA [auth B],
MA [auth B],
S [auth A],
T [auth A]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
KR
(Subject of Investigation/LOI)

Query on KR



Download:Ideal Coordinates CCD File
AA [auth B]
BA [auth B]
C [auth A]
CA [auth B]
D [auth A]
AA [auth B],
BA [auth B],
C [auth A],
CA [auth B],
D [auth A],
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A],
J [auth A],
K [auth A],
L [auth A],
M [auth A],
N [auth A],
U [auth B],
V [auth B],
W [auth B],
X [auth B],
Y [auth B],
Z [auth B]
KRYPTON
Kr
DNNSSWSSYDEUBZ-UHFFFAOYSA-N
SCN
(Subject of Investigation/LOI)

Query on SCN



Download:Ideal Coordinates CCD File
DA [auth B]
EA [auth B]
FA [auth B]
O [auth A]
P [auth A]
DA [auth B],
EA [auth B],
FA [auth B],
O [auth A],
P [auth A],
Q [auth A]
THIOCYANATE ION
C N S
ZMZDMBWJUHKJPS-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.55 Å
  • R-Value Free:  0.181 (Depositor), 0.167 (DCC)
  • R-Value Work:  0.160 (Depositor), 0.165 (DCC)
  • R-Value Observed: 0.161 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 67.978α = 90
b = 82.045β = 90
c = 144.176γ = 90
Software Package:
Software NamePurpose
XDSdata reduction
Aimlessdata scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European CommissionCzech RepublicMSCA-IF-2017 792772
Ministry of Education (Czech Republic)Czech RepublicLQ1605, CZ.02.1.01/0.0/0.0/16_013/0001761, LM2015051, LM2015047, LM2015055
European UnionCzech Republic20776, 722610, 814418

Revision History  (Full details and data files)

  • Version 1.0: 2020-11-18
    Type: Initial release
  • Version 1.1: 2021-06-23
    Changes: Database references
  • Version 1.2: 2024-01-24
    Changes: Data collection, Database references, Refinement description
