6H5N

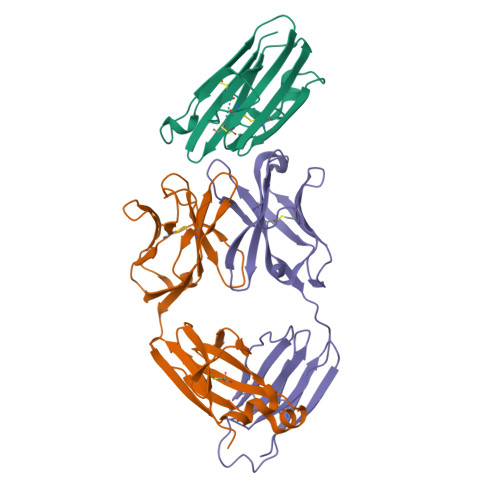

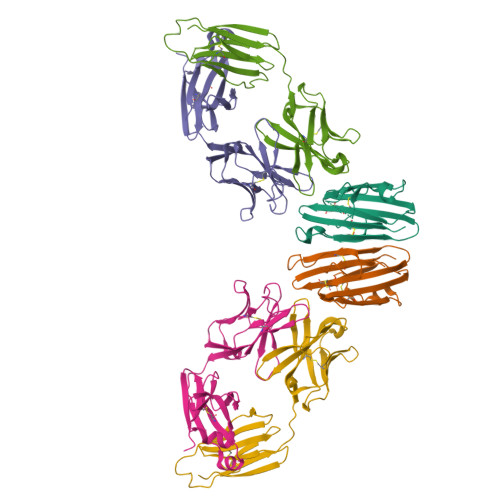

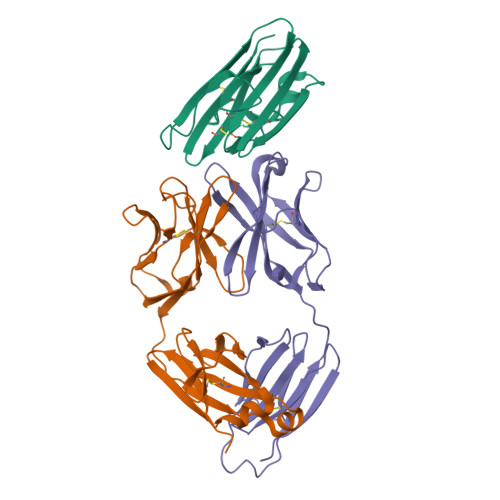

Plasmodium falciparum Pfs48/45 C-terminal domain bound to monoclonal antibody 85RF45.1


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.23 Å
  • R-Value Free: 0.282
  • R-Value Work: 0.261
  • R-Value Observed: 0.262

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structural basis for recognition of the malaria vaccine candidate Pfs48/45 by a transmission blocking antibody.

Lennartz, F.Brod, F.Dabbs, R.Miura, K.Mekhaiel, D.Marini, A.Jore, M.M.Sogaard, M.M.Jorgensen, T.de Jongh, W.A.Sauerwein, R.W.Long, C.A.Biswas, S.Higgins, M.K.

(2018) Nat Commun 9: 3822-3822

  • DOI: https://doi.org/10.1038/s41467-018-06340-9
  • Primary Citation of Related Structures:
    6H5N

  • PubMed Abstract:

    The quest to develop an effective malaria vaccine remains a major priority in the fight against global infectious disease. An approach with great potential is a transmission-blocking vaccine which induces antibodies that prevent establishment of a productive infection in mosquitos that feed on infected humans, thereby stopping the transmission cycle. One of the most promising targets for such a vaccine is the gamete surface protein, Pfs48/45. Here we establish a system for production of full-length Pfs48/45 and use this to raise a panel of monoclonal antibodies. We map the binding regions of these antibodies on Pfs48/45 and correlate the location of their epitopes with their transmission-blocking activity. Finally, we present the structure of the C-terminal domain of Pfs48/45 bound to the most potent transmission-blocking antibody, and provide key molecular information for future structure-guided immunogen design.


  • Organizational Affiliation

    Department of Biochemistry, University of Oxford, South Parks Road, Oxford, OX1 3QU, UK.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Gametocyte surface protein P45/48
A, D
136Plasmodium falciparum 3D7Mutation(s): 0
Gene Names: PF45/48PFS45-48PFS45/48PF13_0247
UniProt
Find proteins for Q8I6T1 (Plasmodium falciparum (isolate 3D7))
Explore Q8I6T1
Go to UniProtKB:  Q8I6T1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8I6T1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Antibody 85RF45.1 light chain
B, E
212Rattus norvegicusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Antibody 85RF45.1 heavy chain
C, F
220Rattus norvegicusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.23 Å
  • R-Value Free: 0.282
  • R-Value Work: 0.261
  • R-Value Observed: 0.262
  • Space Group: P 2 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 59.69α = 90
b = 165.39β = 90
c = 189.66γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
xia2data reduction
xia2data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Medical Research Council (United Kingdom)United KingdomMR/R001138/1
Wellcome TrustUnited Kingdom101020/Z/13/Z

Revision History  (Full details and data files)

  • Version 1.0: 2018-09-26
    Type: Initial release
  • Version 1.1: 2018-10-03
    Changes: Data collection, Database references
  • Version 1.2: 2024-01-17
    Changes: Data collection, Database references, Refinement description
