5WKL

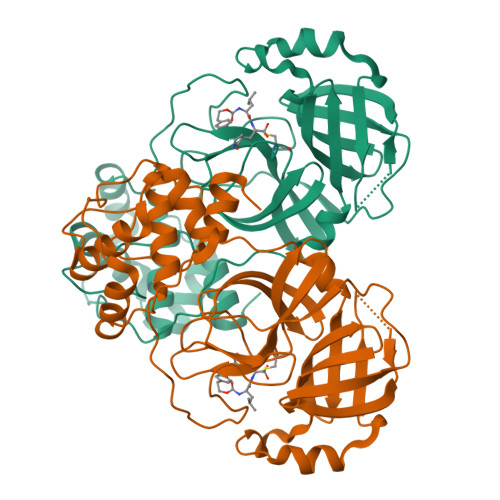

1.85 A resolution structure of MERS 3CL protease in complex with piperidine-based peptidomimetic inhibitor 17


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free: 0.212
  • R-Value Work: 0.163
  • R-Value Observed: 0.166

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structure-guided design of potent and permeable inhibitors of MERS coronavirus 3CL protease that utilize a piperidine moiety as a novel design element.

Galasiti Kankanamalage, A.C.Kim, Y.Damalanka, V.C.Rathnayake, A.D.Fehr, A.R.Mehzabeen, N.Battaile, K.P.Lovell, S.Lushington, G.H.Perlman, S.Chang, K.O.Groutas, W.C.

(2018) Eur J Med Chem 150: 334-346

  • DOI: 10.1016/j.ejmech.2018.03.004
  • Primary Citation of Related Structures:
    5WKJ, 5WKK, 5WKL, 5WKM

  • PubMed Abstract:
  • There are currently no approved vaccines or small molecule therapeutics available for the prophylaxis or treatment of Middle East Respiratory Syndrome coronavirus (MERS-CoV) infections. MERS-CoV 3CL protease is essential for viral replication; consequently, it is an attractive target that provides a potentially effective means of developing small molecule therapeutics for combatting MERS-CoV ...

    There are currently no approved vaccines or small molecule therapeutics available for the prophylaxis or treatment of Middle East Respiratory Syndrome coronavirus (MERS-CoV) infections. MERS-CoV 3CL protease is essential for viral replication; consequently, it is an attractive target that provides a potentially effective means of developing small molecule therapeutics for combatting MERS-CoV. We describe herein the structure-guided design and evaluation of a novel class of inhibitors of MERS-CoV 3CL protease that embody a piperidine moiety as a design element that is well-suited to exploiting favorable subsite binding interactions to attain optimal pharmacological activity and PK properties. The mechanism of action of the compounds and the structural determinants associated with binding were illuminated using X-ray crystallography.


    Organizational Affiliation

    Department of Chemistry, Wichita State University, Wichita, KS 67260, USA. Electronic address: bill.groutas@wichita.edu.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Orf1a proteinA313Middle East respiratory syndrome-related coronavirusMutation(s): 0
Gene Names: orf1a
EC: 3.4.19.12 (UniProt), 3.4.22.69 (UniProt), 3.4.22 (UniProt)
UniProt
Find proteins for K9N638 (Middle East respiratory syndrome-related coronavirus (isolate United Kingdom/H123990006/2012))
Explore K9N638
Go to UniProtKB:  K9N638
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
B3J (Subject of Investigation/LOI)
Query on B3J

Download Ideal Coordinates CCD File
C [auth A](1S,2S)-2-{[N-({[4-benzyl-1-(tert-butoxycarbonyl)piperidin-4-yl]oxy}carbonyl)-L-leucyl]amino}-1-hydroxy-3-[(3S)-2-oxopyrrolidin-3-yl]propane-1-sulfonic acid
C31 H48 N4 O10 S
PJEUBFINPIVQHS-TTZMFTMZSA-N
 Ligand Interaction
AVY (Subject of Investigation/LOI)
Query on AVY

Download Ideal Coordinates CCD File
B [auth A](1R,2S)-2-{[N-({[4-benzyl-1-(tert-butoxycarbonyl)piperidin-4-yl]oxy}carbonyl)-L-leucyl]amino}-1-hydroxy-3-[(3S)-2-oxopyrrolidin-3-yl]propane-1-sulfonic acid
C31 H48 N4 O10 S
PJEUBFINPIVQHS-IPVQETTRSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free: 0.212
  • R-Value Work: 0.163
  • R-Value Observed: 0.166
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 101.253α = 90
b = 58.099β = 112
c = 49.734γ = 90
Software Package:
Software NamePurpose
Aimlessdata scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction
XDSdata reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesP30GM110761

Revision History  (Full details and data files)

  • Version 1.0: 2018-04-04
    Type: Initial release
  • Version 1.1: 2020-01-01
    Changes: Author supporting evidence
