4UAE

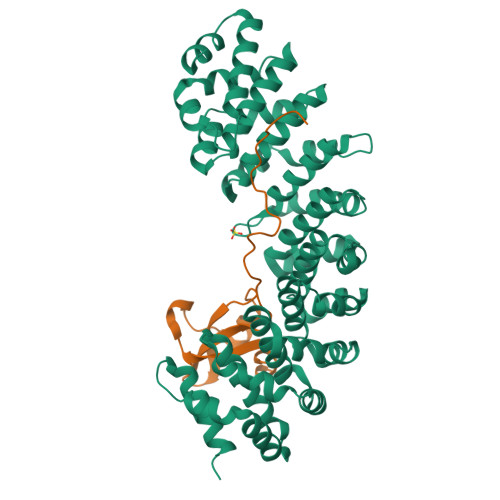

Importin alpha 3 delta IBB in complex with Influenza PB2 Nuclear Localization Domain

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.239
  • R-Value Work: 0.185
  • R-Value Observed: 0.188

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history.


Literature

Molecular Determinants for Nuclear Import of Influenza A PB2 by Importin alpha Isoforms 3 and 7.

Pumroy, R.A., Ke, S., Hart, D.J., Zachariae, U., Cingolani, G.

(2015) Structure 23: 374-384

  • DOI: https://doi.org/10.1016/j.str.2014.11.015
  • Primary Citation of Related Structures:
    4UAD, 4UAE, 4UAF

  • PubMed Abstract:

    • Influenza A virus polymerase subunit PB2 is a major virulence determinant implicated in pathogenicity and host adaptation. During cross-species virus transfer from avian to mammalian cells, PB2 switches specificity from importin α3 to α7. This specificity is not recapitulated in vitro, where PB2 binds all importin α isoforms with comparably high affinity ...

    Influenza A virus polymerase subunit PB2 is a major virulence determinant implicated in pathogenicity and host adaptation. During cross-species virus transfer from avian to mammalian cells, PB2 switches specificity from importin α3 to α7. This specificity is not recapitulated in vitro, where PB2 binds all importin α isoforms with comparably high affinity. In this study, we investigated the structure, conformational dynamics, and autoinhibition of importin α isoforms 1, 3, and 7 in complex with PB2. Our data suggest that association of PB2 with α3 and α7 is favored by reduced autoinhibition of these isoforms and by the unique structure of the nuclear localization signal (NLS) domain of PB2. We propose that by recruiting importin α3 or α7 in the absence of importin β, PB2 reduces the complexity of adaptor-mediated import to a pseudo-bimolecular reaction, thereby acquiring a kinetic advantage over classical NLS cargos, which form an import complex only when importin α and β are simultaneously available.

    Organizational Affiliation:

    Department of Biochemistry and Molecular Biology, Thomas Jefferson University, 233 South 10th Street, Philadelphia, PA 19107, USA. Electronic address: gino.cingolani@jefferson.edu.



Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Importin subunit alpha-3421Homo sapiensMutation(s): 0
Gene Names: KPNA4, QIP1
UniProt & NIH Common Fund Data Resources
Find proteins for O00629 (Homo sapiens)
Explore O00629
Go to UniProtKB:  O00629
PHAROS:  O00629
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00629
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
Polymerase basic protein 2B [auth F]87Influenza A virus (A/Victoria/3/1975(H3N2))Mutation(s): 0
Gene Names: PB2
UniProt
Find proteins for P31345 (Influenza A virus (strain A/Victoria/3/1975 H3N2))
Explore P31345
Go to UniProtKB:  P31345
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP31345
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
SO4
Query on SO4
Download Ideal Coordinates CCD File
C [auth A]SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L		 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.239
  • R-Value Work: 0.185
  • R-Value Observed: 0.188
  • Space Group: P 41
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 135.682α = 90
b = 135.682β = 90
c = 47.309γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM074846
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM100888

Revision History  (Full details and data files)

  • Version 1.0: 2015-02-04
    Type: Initial release
  • Version 1.1: 2015-02-11
    Changes: Database references
  • Version 1.2: 2017-09-20
    Changes: Author supporting evidence, Database references, Derived calculations, Other, Source and taxonomy, Structure summary
  • Version 1.3: 2019-12-25
    Changes: Author supporting evidence
