4L5S

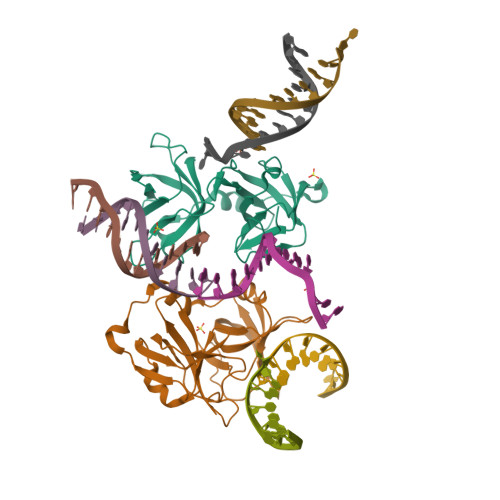

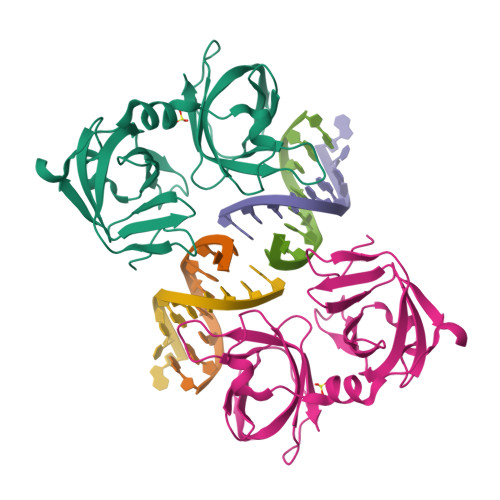

p202 HIN1 in complex with 12-mer dsDNA

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.94 Å
  • R-Value Free: 0.255
  • R-Value Work: 0.204
  • R-Value Observed: 0.207

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history.


Literature

Molecular Mechanism for p202-Mediated Specific Inhibition of AIM2 Inflammasome Activation.

Yin, Q., Sester, D.P., Tian, Y., Hsiao, Y.S., Lu, A., Cridland, J.A., Sagulenko, V., Thygesen, S.J., Choubey, D., Hornung, V., Walz, T., Stacey, K.J., Wu, H.

(2013) Cell Rep 4: 327-339

  • DOI: https://doi.org/10.1016/j.celrep.2013.06.024
  • Primary Citation of Related Structures:
    4L5Q, 4L5R, 4L5S, 4L5T

  • PubMed Abstract:

    • Mouse p202 containing two hemopoietic expression, interferon inducibility, nuclear localization (HIN) domains antagonizes AIM2 inflammasome signaling and potentially modifies lupus susceptibility. We found that only HIN1 of p202 binds double-stranded DNA (dsDNA), while HIN2 forms a homotetramer ...

    Mouse p202 containing two hemopoietic expression, interferon inducibility, nuclear localization (HIN) domains antagonizes AIM2 inflammasome signaling and potentially modifies lupus susceptibility. We found that only HIN1 of p202 binds double-stranded DNA (dsDNA), while HIN2 forms a homotetramer. Crystal structures of HIN1 revealed that dsDNA is bound on face opposite the site used in AIM2 and IFI16. The structure of HIN2 revealed a dimer of dimers, the face analogous to the HIN1 dsDNA binding site being a dimerization interface. Electron microscopy imaging showed that HIN1 is flexibly linked to HIN2 in p202, and tetramerization provided enhanced avidity for dsDNA. Surprisingly, HIN2 of p202 interacts with the AIM HIN domain. We propose that this results in a spatial separation of the AIM2 pyrin domains, and indeed p202 prevented the dsDNA-dependent clustering of apoptosis-associated speck-like protein containing caspase recruitment domain (ASC) and AIM2 inflammasome activation. We hypothesize that while p202 was evolutionarily selected to limit AIM2-mediated inflammation in some mouse strains, the same mechanism contributes to increased interferon production and lupus susceptibility.

    Organizational Affiliation:

    Program in Cellular and Molecular Medicine, Boston Children's Hospital, and Department of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, Boston, MA 02115, USA.



Macromolecules

Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Interferon-activable protein 202
A, B
199Mus musculusMutation(s): 5
Gene Names: Ifi202, Ifi202a, Ifi202b
UniProt
Find proteins for Q9R002 (Mus musculus)
Explore Q9R002
Go to UniProtKB:  Q9R002
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9R002
Protein Feature View
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChainsLengthOrganismImage

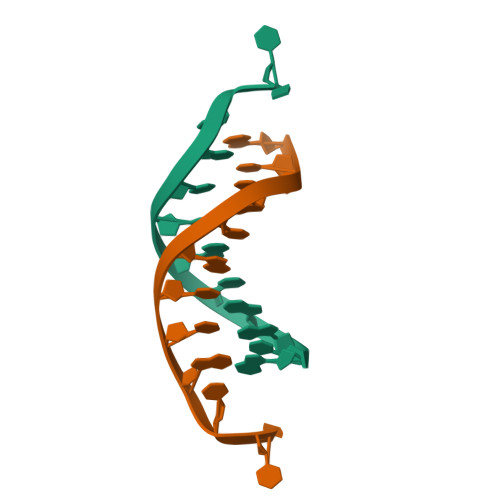

12-mer DNA
C, D, E, F, G
C, D, E, F, G, H, I
12N/A
Protein Feature View
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.94 Å
  • R-Value Free: 0.255
  • R-Value Work: 0.204
  • R-Value Observed: 0.207
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 111.309α = 90
b = 156.118β = 90
c = 117.614γ = 90
Software Package:
Software NamePurpose
CBASSdata collection
PHASESphasing
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2013-08-14
    Type: Initial release
  • Version 1.1: 2023-09-20
    Changes: Data collection, Database references, Derived calculations, Refinement description
