4GLX

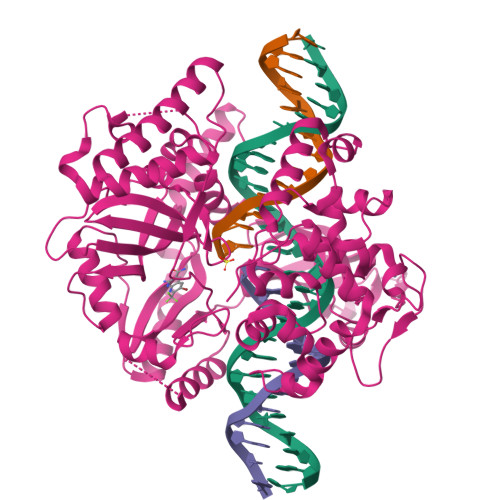

DNA ligase A in complex with inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free: 0.250
  • R-Value Work: 0.201
  • R-Value Observed: 0.203

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Structure-guided design, synthesis and biological evaluation of novel DNA ligase inhibitors with in vitro and in vivo anti-staphylococcal activity.

Surivet, J.P.Lange, R.Hubschwerlen, C.Keck, W.Specklin, J.L.Ritz, D.Bur, D.Locher, H.Seiler, P.Strasser, D.S.Prade, L.Kohl, C.Schmitt, C.Chapoux, G.Ilhan, E.Ekambaram, N.Athanasiou, A.Knezevic, A.Sabato, D.Chambovey, A.Gaertner, M.Enderlin, M.Boehme, M.Sippel, V.Wyss, P.

(2012) Bioorg Med Chem Lett 22: 6705-6711

  • DOI: 10.1016/j.bmcl.2012.08.094
  • Primary Citation of Related Structures:
    4GLW, 4GLX

  • PubMed Abstract:
  • A series of 2-amino-[1,8]-naphthyridine-3-carboxamides (ANCs) with potent inhibition of bacterial NAD(+)-dependent DNA ligases (LigAs) evolved from a 2,4-diaminopteridine derivative discovered by HTS. The design was guided by several highly resolved X-ray structures of our inhibitors in complex with either Streptococcus pneumoniae or Escherichia coli LigA ...

    A series of 2-amino-[1,8]-naphthyridine-3-carboxamides (ANCs) with potent inhibition of bacterial NAD(+)-dependent DNA ligases (LigAs) evolved from a 2,4-diaminopteridine derivative discovered by HTS. The design was guided by several highly resolved X-ray structures of our inhibitors in complex with either Streptococcus pneumoniae or Escherichia coli LigA. The structure-activity-relationship based on the ANC scaffold is discussed. The in-depth characterization of 2-amino-6-bromo-7-(trifluoromethyl)-[1,8]-naphthyridine-3-carboxamide, which displayed promising in vitro (MIC Staphylococcus aureus 1 mg/L) and in vivo anti-staphylococcal activity, is presented.


    Organizational Affiliation

    Actelion Pharmaceuticals Ltd, Gewerbestrasse 16, CH-4123 Allschwil, Switzerland. jean-philippe.surivet@actelion.com



Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChainsSequence LengthOrganismDetailsImage
DNA ligaseD [auth A]586Escherichia coli K-12Mutation(s): 0
Gene Names: b2411dnaLJW2403ligligAloppdeC
EC: 6.5.1.2
UniProt
Find proteins for P15042 (Escherichia coli (strain K12))
Explore P15042
Go to UniProtKB:  P15042
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP15042
Protein Feature View
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsLengthOrganismImage
DNA (26-MER)A [auth B]26synthetic construct
Protein Feature View
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChainsLengthOrganismImage
DNA (5'-D(*AP*CP*AP*AP*TP*TP*GP*CP*GP*AP*CP*CP*C)-3')B [auth C]13synthetic construct
Protein Feature View
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChainsLengthOrganismImage
DNA (5'-D(P*CP*AP*CP*TP*AP*TP*CP*GP*GP*AP*AP*TP*G)-3')C [auth D]13synthetic construct
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
0XS
Query on 0XS

Download Ideal Coordinates CCD File
G [auth A]2-amino-6-bromo-7-(trifluoromethyl)-1,8-naphthyridine-3-carboxamide
C10 H6 Br F3 N4 O
CENBBVPSOFGGNG-UHFFFAOYSA-N
 Ligand Interaction
SO4
Query on SO4

Download Ideal Coordinates CCD File
F [auth A]SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
 Ligand Interaction
ZN
Query on ZN

Download Ideal Coordinates CCD File
E [auth A]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
Binding Affinity Annotations
IDSourceBinding Affinity
0XS PDBBind:  4GLX Kd: 16 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free: 0.250
  • R-Value Work: 0.201
  • R-Value Observed: 0.203
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 110.99α = 90
b = 100.14β = 105.5
c = 86.57γ = 90
Software Package:
Software NamePurpose
XSCALEdata scaling
REFMACrefinement
PDB_EXTRACTdata extraction
RemDAqdata collection
INTEGRATEdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2012-10-10
    Type: Initial release
  • Version 1.1: 2012-10-31
    Changes: Database references
  • Version 1.2: 2017-11-15
    Changes: Refinement description
