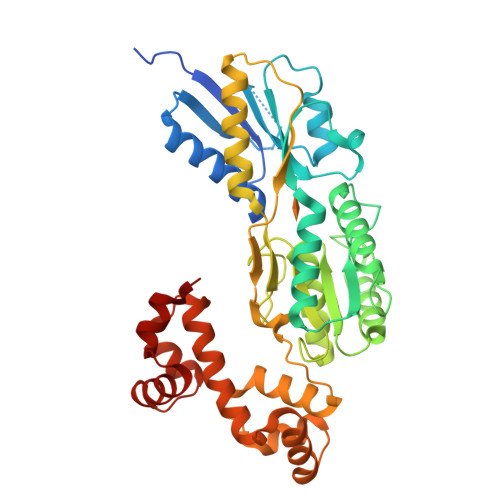

structure of xylose-binding transcription activator xylR

Experimental Data Snapshot

  • Resolution: 2.90 Å
  • R-Value Free: 0.279
  • R-Value Work: 0.219
  • R-Value Observed: 0.222

wwPDB Validation   3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.5 of the entry. See complete history


Structures of the Escherichia coli transcription activator and regulator of diauxie, XylR: an AraC DNA-binding family member with a LacI/GalR ligand-binding domain.

Ni, L.Tonthat, N.K.Chinnam, N.Schumacher, M.A.

(2013) Nucleic Acids Res 41: 1998-2008

  • DOI: https://doi.org/10.1093/nar/gks1207
  • Primary Citation of Related Structures:
    4FE4, 4FE7

  • PubMed Abstract:

    Escherichia coli can rapidly switch to the metabolism of l-arabinose and d-xylose in the absence of its preferred carbon source, glucose, in a process called carbon catabolite repression. Transcription of the genes required for l-arabinose and d-xylose consumption is regulated by the sugar-responsive transcription factors, AraC and XylR. E. coli represents a promising candidate for biofuel production through the metabolism of hemicellulose, which is composed of d-xylose and l-arabinose. Understanding the l-arabinose/d-xylose regulatory network is key for such biocatalyst development. Unlike AraC, which is a well-studied protein, little is known about XylR. To gain insight into XylR function, we performed biochemical and structural studies. XylR contains a C-terminal AraC-like domain. However, its N-terminal d-xylose-binding domain contains a periplasmic-binding protein (PBP) fold with structural homology to LacI/GalR transcription regulators. Like LacI/GalR proteins, the XylR PBP domain mediates dimerization. However, unlike LacI/GalR proteins, which dimerize in a parallel, side-to-side manner, XylR PBP dimers are antiparallel. Strikingly, d-xylose binding to this domain results in a helix to strand transition at the dimer interface that reorients both DNA-binding domains, allowing them to bind and loop distant operator sites. Thus, the combined data reveal the ligand-induced activation mechanism of a new family of DNA-binding proteins.

  • Organizational Affiliation

    Department of Biochemistry and Molecular Biology, University of Texas, M.D. Anderson Cancer Center, Houston, TX 77030, USA.

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Xylose operon regulatory protein412Escherichia coliMutation(s): 0
Gene Names: xylR
Find proteins for P0ACI3 (Escherichia coli (strain K12))
Explore P0ACI3
Go to UniProtKB:  P0ACI3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ACI3
Sequence Annotations
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
Query on XYS

Download Ideal Coordinates CCD File
B [auth A]alpha-D-xylopyranose
C5 H10 O5
Experimental Data & Validation

Experimental Data

  • Resolution: 2.90 Å
  • R-Value Free: 0.279
  • R-Value Work: 0.219
  • R-Value Observed: 0.222
  • Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 70.071α = 90
b = 70.071β = 90
c = 215.403γ = 90
Software Package:
Software NamePurpose
Blu-Icedata collection
MOSFLMdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2012-12-12
    Type: Initial release
  • Version 1.1: 2013-01-02
    Changes: Database references
  • Version 1.2: 2013-02-20
    Changes: Database references
  • Version 1.3: 2017-11-15
    Changes: Refinement description
  • Version 1.4: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Database references, Derived calculations, Structure summary
  • Version 1.5: 2024-02-28
    Changes: Data collection, Database references, Structure summary
