4E1U

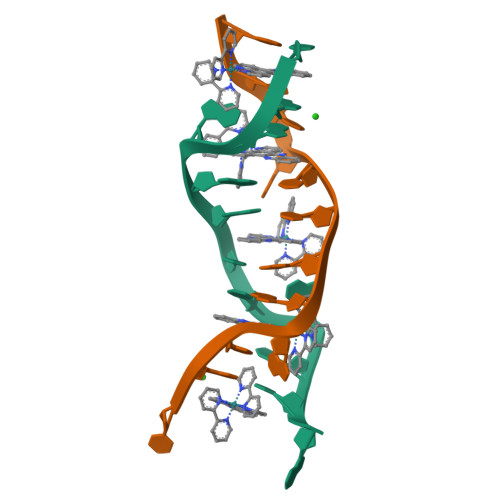

[Ru(bpy)2 dppz]2+ bound to DNA


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 0.92 Å
  • R-Value Free: 0.149
  • R-Value Work: 0.140

wwPDB Validation 3D Report Full Report


This is version 1.2 of the entry. See complete history

Literature

Crystal structure of delta-[Ru(bpy)2dppz]2+ bound to mismatched DNA reveals side-by-side metalloinsertion and intercalation.

Song, H.Kaiser, J.T.Barton, J.K.

(2012) Nat Chem 4: 615-620

  • DOI: 10.1038/nchem.1375

  • PubMed Abstract:
  • DNA mismatches represent a novel target in the development of diagnostics and therapeutics for cancer, because deficiencies in DNA mismatch repair are implicated in cancers, and cells that are repair-deficient show a high frequency of mismatches. Met ...

    DNA mismatches represent a novel target in the development of diagnostics and therapeutics for cancer, because deficiencies in DNA mismatch repair are implicated in cancers, and cells that are repair-deficient show a high frequency of mismatches. Metal complexes with bulky intercalating ligands serve as probes for DNA mismatches. Here, we report the high-resolution (0.92 Å) crystal structure of the ruthenium 'light switch' complex Δ-[Ru(bpy)(2)dppz](2+) (bpy = 2,2'-bipyridine and dppz = dipyridophenazine), which is known to show luminescence on binding to duplex DNA, bound to both mismatched and well-matched sites in the oligonucleotide 5'-(dCGGAAATTACCG)(2)-3' (underline denotes AA mismatches). Two crystallographically independent views reveal that the complex binds mismatches through metalloinsertion, ejecting both mispaired adenosines. Additional ruthenium complexes are intercalated at well-matched sites, creating an array of complexes in the minor groove stabilized by stacking interactions between bpy ligands and extruded adenosines. This structure attests to the generality of metalloinsertion and metallointercalation as DNA binding modes.


    Organizational Affiliation

    Division of Chemistry and Chemical Engineering, California Institute of Technology, Pasadena, California 91125, USA.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsLengthOrganism
5'-D(*CP*GP*GP*AP*AP*AP*TP*TP*AP*CP*CP*G)-3'A,B12N/A
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
R1Z
Query on R1Z

Download SDF File
Download CCD File
A
Delta-[Ru(bpy)2dppz]2+
C38 H26 N8 Ru
NGWQAIWPRVFOPE-UHFFFAOYSA-N
 Ligand Interaction
BA
Query on BA

Download SDF File
Download CCD File
A, B
BARIUM ION
Ba
XDFCIPNJCBUZJN-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 0.92 Å
  • R-Value Free: 0.149
  • R-Value Work: 0.140
  • Space Group: P 1
Unit Cell:
Length (Å)Angle (°)
a = 24.039α = 74.67
b = 24.797β = 84.42
c = 37.521γ = 76.21
Software Package:
Software NamePurpose
SHELXDphasing
Blu-Icedata collection
PHENIXrefinement
XDSdata reduction
SCALAdata scaling

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2012-06-20
    Type: Initial release
  • Version 1.1: 2013-02-20
    Type: Non-polymer description
  • Version 1.2: 2013-06-19
    Type: Database references
