4BZO

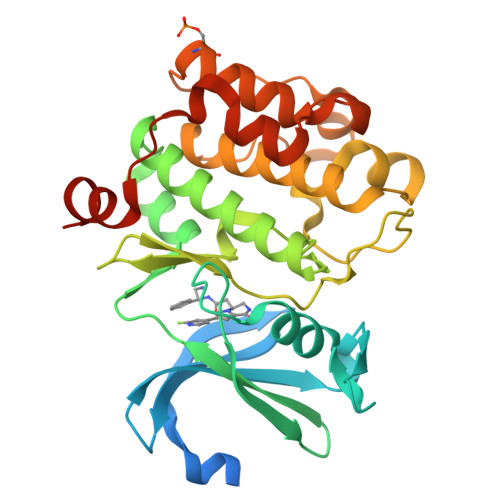

Crystal structure of PIM1 in complex with a Pyrrolo-Pyrazinone inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.216
  • R-Value Work: 0.181
  • R-Value Observed: 0.183

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Discovery and Optimization of Pyrrolo[1,2-A]Pyrazinones Leads to Novel and Selective Inhibitors of Pim Kinases.

Casuscelli, F.Ardini, E.Avanzi, N.Casale, E.Cervi, G.D'Anello, M.Donati, D.Faiardi, D.Ferguson, R.D.Fogliatto, G.Galvani, A.Marsiglio, A.Mirizzi, D.G.Montemartini, M.Orrenius, C.Papeo, G.Piutti, C.Salom, B.Felder, E.R.

(2013) Bioorg Med Chem 21: 7364

  • DOI: 10.1016/j.bmc.2013.09.054
  • Primary Citation of Related Structures:
    4BZN, 4BZO

  • PubMed Abstract:
  • A novel series of PIM inhibitors was derived from a combined effort in natural product-inspired library generation and screening. The novel pyrrolo[1,2-a]pyrazinones initial hits are inhibitors of PIM isoforms with IC50 values in the low micromolar r ...

    A novel series of PIM inhibitors was derived from a combined effort in natural product-inspired library generation and screening. The novel pyrrolo[1,2-a]pyrazinones initial hits are inhibitors of PIM isoforms with IC50 values in the low micromolar range. The application of a rational optimization strategy, guided by the determination of the crystal structure of the complex in the kinase domain of PIM1 with compound 1, led to the discovery of compound 15a, which is a potent PIM kinases inhibitor exhibiting excellent selectivity against a large panel of kinases, representative of each family. The synthesis, structure-activity relationship studies, and pharmacokinetic data of compounds from this inhibitor class are presented herein. Furthermore, the cellular activities including inhibition of cell growth and modulation of downstream targets are also described.


    Organizational Affiliation

    Oncology, Nerviano Medical Sciences, viale Pasteur 10, 20014 Nerviano (MI), Italy. Electronic address: francesco.casuscelli@nervianoms.com.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
SERINE/THREONINE-PROTEIN KINASE PIM-1A314Homo sapiensMutation(s): 0
Gene Names: PIM1
EC: 2.7.11.1
Find proteins for P11309 (Homo sapiens)
Explore P11309
Go to UniProtKB:  P11309
NIH Common Fund Data Resources
PHAROS  P11309
Protein Feature View
Expand
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
676
Query on 676

Download CCD File
A
N-[(1S)-2-AMINO-1-PHENYLETHYL]-2-[(4S)-7-(2-FLUORO-4-PYRIDINYL)-1-OXO-1,2,3,4-TETRAHYDROPYRROLO[1,2-A]PYRAZIN-4-YL]ACETAMIDE
C22 H22 F N5 O2
MCZCAWWHZGEUFE-ZWKOTPCHSA-N
 Ligand Interaction
Modified Residues  1 Unique
IDChainsTypeFormula2D DiagramParent
SEP
Query on SEP
AL-PEPTIDE LINKINGC3 H8 N O6 PSER
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
676IC50 :  13   nM  PDBBind
676IC50:  13   nM  Binding MOAD
676IC50:  13   nM  BindingDB
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.216
  • R-Value Work: 0.181
  • R-Value Observed: 0.183
  • Space Group: P 65
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 97.932α = 90
b = 97.932β = 90
c = 81.431γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
DENZOdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Revision History

  • Version 1.0: 2013-10-30
    Type: Initial release
  • Version 1.1: 2013-11-13
    Changes: Database references
