3U2D

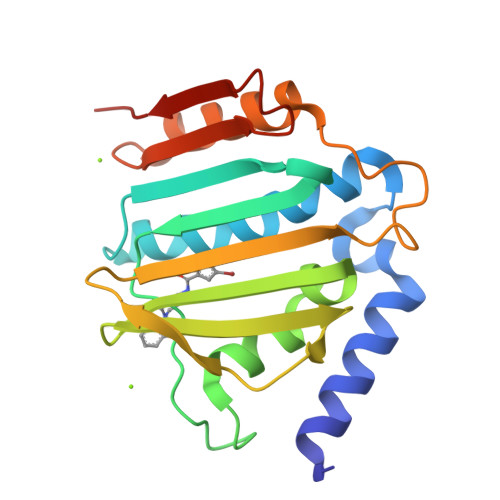

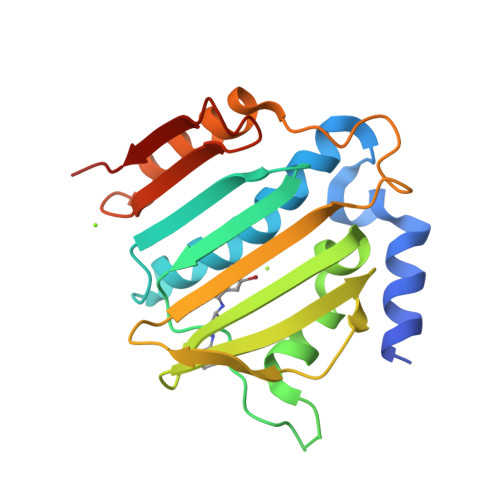

S. aureus GyrB ATPase domain in complex with small molecule inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free: 0.232
  • R-Value Work: 0.201
  • R-Value Observed: 0.202

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Pyrrolamide DNA gyrase inhibitors: fragment-based nuclear magnetic resonance screening to identify antibacterial agents.

Eakin, A.E.Green, O.Hales, N.Walkup, G.K.Bist, S.Singh, A.Mullen, G.Bryant, J.Embrey, K.Gao, N.Breeze, A.Timms, D.Andrews, B.Uria-Nickelsen, M.Demeritt, J.Loch, J.T.Hull, K.Blodgett, A.Illingworth, R.N.Prince, B.Boriack-Sjodin, P.A.Hauck, S.Macpherson, L.J.Ni, H.Sherer, B.

(2012) Antimicrob Agents Chemother 56: 1240-1246

  • DOI: 10.1128/AAC.05485-11
  • Primary Citation of Related Structures:
    3U2D, 3U2K

  • PubMed Abstract:
  • DNA gyrase is an essential enzyme in bacteria, and its inhibition results in the disruption of DNA synthesis and, subsequently, cell death. The pyrrolamides are a novel class of antibacterial agents targeting DNA gyrase. These compounds were identified by a fragment-based lead generation (FBLG) approach using nuclear magnetic resonance (NMR) screening to identify low-molecular-weight compounds that bind to the ATP pocket of DNA gyrase ...

    DNA gyrase is an essential enzyme in bacteria, and its inhibition results in the disruption of DNA synthesis and, subsequently, cell death. The pyrrolamides are a novel class of antibacterial agents targeting DNA gyrase. These compounds were identified by a fragment-based lead generation (FBLG) approach using nuclear magnetic resonance (NMR) screening to identify low-molecular-weight compounds that bind to the ATP pocket of DNA gyrase. A pyrrole hit with a binding constant of 1 mM formed the basis of the design and synthesis of a focused library of compounds that resulted in the rapid identification of a lead compound that inhibited DNA gyrase with a 50% inhibitory concentration (IC(50)) of 3 μM. The potency of the lead compound was further optimized by utilizing iterative X-ray crystallography to yield DNA gyrase inhibitors that also displayed antibacterial activity. Spontaneous mutants were isolated in Staphylococcus aureus by plating on agar plates containing pyrrolamide 4 at the MIC. The resistant variants displayed 4- to 8-fold-increased MIC values relative to the parent strain. DNA sequencing revealed two independent point mutations in the pyrrolamide binding region of the gyrB genes from these variants, supporting the hypothesis that the mode of action of these compounds was inhibition of DNA gyrase. Efficacy of a representative pyrrolamide was demonstrated against Streptococcus pneumoniae in a mouse lung infection model. These data demonstrate that the pyrrolamides are a novel class of DNA gyrase inhibitors with the potential to deliver future antibacterial agents targeting multiple clinical indications.


    Organizational Affiliation

    Infection Innovative Medicines Unit, AstraZeneca R&D Boston, Waltham, Massachusetts, USA. Ann.Eakin@astrazeneca.com



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
DNA gyrase subunit BA, B198Staphylococcus aureusMutation(s): 0
Gene Names: gyrB
EC: 5.99.1.3 (PDB Primary Data), 5.6.2.2 (UniProt)
UniProt
Find proteins for P0A0K8 (Staphylococcus aureus)
Explore P0A0K8
Go to UniProtKB:  P0A0K8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A0K8
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
08B
Query on 08B

Download Ideal Coordinates CCD File
C [auth A],
F [auth B]
4-bromo-5-methyl-N-[1-(3-nitropyridin-2-yl)piperidin-4-yl]-1H-pyrrole-2-carboxamide
C16 H18 Br N5 O3
AUXATGQLTJKTRN-UHFFFAOYSA-N
 Ligand Interaction
MG
Query on MG

Download Ideal Coordinates CCD File
D [auth A],
E [auth A],
G [auth B],
H [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free: 0.232
  • R-Value Work: 0.201
  • R-Value Observed: 0.202
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 143.487α = 90
b = 55.646β = 100.38
c = 51.103γ = 90
Software Package:
Software NamePurpose
d*TREKdata scaling
d*TREKdata reduction
AMoREphasing
REFMACrefinement
PDB_EXTRACTdata extraction
JDirectordata collection

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2012-01-11
    Type: Initial release
  • Version 1.1: 2012-02-29
    Changes: Database references
  • Version 1.2: 2017-08-09
    Changes: Refinement description, Source and taxonomy
