3SZ4

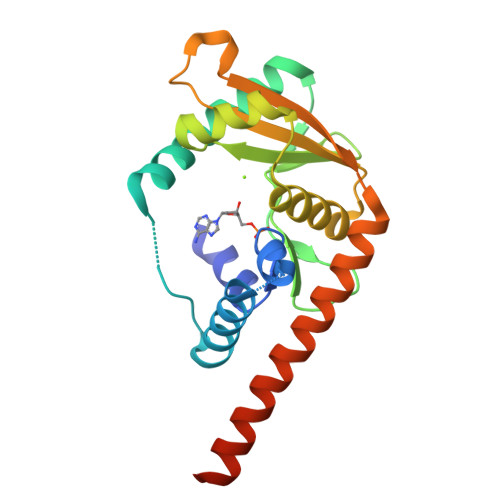

Crystal Structure of LHK-Exo in complex with dAMP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.59 Å
  • R-Value Free: 0.262
  • R-Value Work: 0.208

wwPDB Validation 3D Report Full Report


This is version 1.0 of the entry. See complete history

Literature

Structural and functional insight into the mechanism of an alkaline exonuclease from Laribacter hongkongensis.

Yang, W.Chen, W.Y.Wang, H.Ho, J.W.Huang, J.D.Woo, P.C.Lau, S.K.Yuen, K.Y.Zhang, Q.Zhou, W.Bartlam, M.Watt, R.M.Rao, Z.

(2011) Nucleic Acids Res. 39: 9803-9819

  • DOI: 10.1093/nar/gkr660
  • Primary Citation of Related Structures:

  • PubMed Abstract:
  • Alkaline exonuclease and single-strand DNA (ssDNA) annealing proteins (SSAPs) are key components of DNA recombination and repair systems within many prokaryotes, bacteriophages and virus-like genetic elements. The recently sequenced β-proteobacterium ...

    Alkaline exonuclease and single-strand DNA (ssDNA) annealing proteins (SSAPs) are key components of DNA recombination and repair systems within many prokaryotes, bacteriophages and virus-like genetic elements. The recently sequenced β-proteobacterium Laribacter hongkongensis (strain HLHK9) encodes putative homologs of alkaline exonuclease (LHK-Exo) and SSAP (LHK-Bet) proteins on its 3.17 Mb genome. Here, we report the biophysical, biochemical and structural characterization of recombinant LHK-Exo protein. LHK-Exo digests linear double-stranded DNA molecules from their 5'-termini in a highly processive manner. Exonuclease activities are optimum at pH 8.2 and essentially require Mg(2+) or Mn(2+) ions. 5'-phosphorylated DNA substrates are preferred over dephosphorylated ones. The crystal structure of LHK-Exo was resolved to 1.9 Å, revealing a 'doughnut-shaped' toroidal trimeric arrangement with a central tapered channel, analogous to that of λ-exonuclease (Exo) from bacteriophage-λ. Active sites containing two bound Mg(2+) ions on each of the three monomers were located in clefts exposed to this central channel. Crystal structures of LHK-Exo in complex with dAMP and ssDNA were determined to elucidate the structural basis for substrate recognition and binding. Through structure-guided mutational analysis, we discuss the roles played by various active site residues. A conserved two metal ion catalytic mechanism is proposed for this class of alkaline exonucleases.


    Organizational Affiliation

    State Key Laboratory of Medicinal Chemical Biology, Nankai University, Tianjin 300071, China.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Exonuclease
A
216Laribacter hongkongensis (strain HLHK9)Mutation(s): 0
Find proteins for C1D7P6 (Laribacter hongkongensis (strain HLHK9))
Go to UniProtKB:  C1D7P6
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
MG
Query on MG

Download SDF File
Download CCD File
A
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
 Ligand Interaction
D5M
Query on D5M

Download SDF File
Download CCD File
A
2'-DEOXYADENOSINE-5'-MONOPHOSPHATE
C10 H14 N5 O6 P
KHWCHTKSEGGWEX-RRKCRQDMSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.59 Å
  • R-Value Free: 0.262
  • R-Value Work: 0.208
  • Space Group: P 63
Unit Cell:
Length (Å)Angle (°)
a = 108.327α = 90.00
b = 108.327β = 90.00
c = 47.824γ = 120.00
Software Package:
Software NamePurpose
HKL-2000data reduction
REFMACrefinement
PHASERphasing
HKL-2000data scaling
CrystalCleardata collection

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2012-02-15
    Type: Initial release
