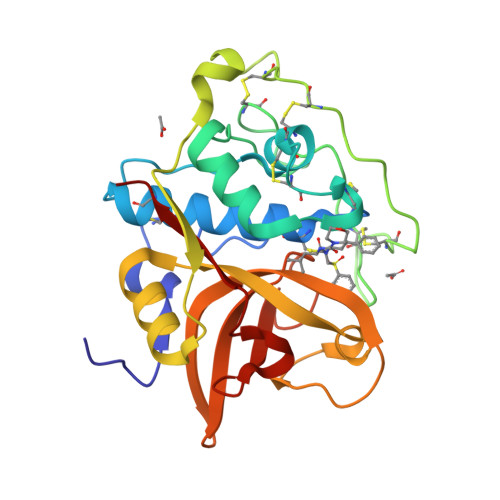

Structure of cathepsin B1 from Schistosoma mansoni in complex with K11017 inhibitor

Experimental Data Snapshot

  • Resolution: 1.80 Å
  • R-Value Free: 0.236
  • R-Value Work: 0.166
  • R-Value Observed: 0.170

wwPDB Validation   3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.2 of the entry. See complete history


Structural Basis for Inhibition of Cathepsin B Drug Target from the Human Blood Fluke, Schistosoma mansoni.

Jilkova, A.Rezacova, P.Lepsik, M.Horn, M.Vachova, J.Fanfrlik, J.Brynda, J.McKerrow, J.H.Caffrey, C.R.Mares, M.

(2011) J Biol Chem 286: 35770-35781

  • DOI: https://doi.org/10.1074/jbc.M111.271304
  • Primary Citation of Related Structures:
    3QSD, 3S3Q, 3S3R

  • PubMed Abstract:

    Schistosomiasis caused by a parasitic blood fluke of the genus Schistosoma afflicts over 200 million people worldwide. Schistosoma mansoni cathepsin B1 (SmCB1) is a gut-associated peptidase that digests host blood proteins as a source of nutrients. It is under investigation as a drug target. To further this goal, we report three crystal structures of SmCB1 complexed with peptidomimetic inhibitors as follows: the epoxide CA074 at 1.3 Å resolution and the vinyl sulfones K11017 and K11777 at 1.8 and 2.5 Å resolutions, respectively. Interactions of the inhibitors with the subsites of the active-site cleft were evaluated by quantum chemical calculations. These data and inhibition profiling with a panel of vinyl sulfone derivatives identify key binding interactions and provide insight into the specificity of SmCB1 inhibition. Furthermore, hydrolysis profiling of SmCB1 using synthetic peptides and the natural substrate hemoglobin revealed that carboxydipeptidase activity predominates over endopeptidolysis, thereby demonstrating the contribution of the occluding loop that restricts access to the active-site cleft. Critically, the severity of phenotypes induced in the parasite by vinyl sulfone inhibitors correlated with enzyme inhibition, providing support that SmCB1 is a valuable drug target. The present structure and inhibitor interaction data provide a footing for the rational design of anti-schistosomal inhibitors.

  • Organizational Affiliation

    Institute of Organic Chemistry and Biochemistry, Academy of Sciences of the Czech Republic, 16610 Prague, Czech Republic; Department of Biochemistry, Faculty of Science, Charles University, 12843 Prague, Czech Republic.

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Cathepsin B-like peptidase (C01 family)254Schistosoma mansoniMutation(s): 2
Gene Names: cb1.1Smp_103610
Find proteins for Q8MNY2 (Schistosoma mansoni)
Explore Q8MNY2
Go to UniProtKB:  Q8MNY2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8MNY2
Sequence Annotations
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
Query on C1P

Download Ideal Coordinates CCD File
B [auth A]N~2~-(morpholin-4-ylcarbonyl)-N-[(3S)-1-phenyl-5-(phenylsulfonyl)pentan-3-yl]-L-leucinamide
C28 H39 N3 O5 S
Query on ACT

Download Ideal Coordinates CCD File
C [auth A],
D [auth A]
C2 H3 O2
Binding Affinity Annotations
IDSourceBinding Affinity
C1P PDBBind:  3S3Q IC50: 1.71 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Resolution: 1.80 Å
  • R-Value Free: 0.236
  • R-Value Work: 0.166
  • R-Value Observed: 0.170
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 33.092α = 90
b = 79.528β = 90
c = 90.269γ = 90
Software Package:
Software NamePurpose
HKL-3000data collection
HKL-3000data reduction
HKL-3000data scaling

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2011-08-10
    Type: Initial release
  • Version 1.1: 2011-10-26
    Changes: Database references
  • Version 1.2: 2023-09-13
    Changes: Data collection, Database references, Derived calculations, Refinement description
