3BC5

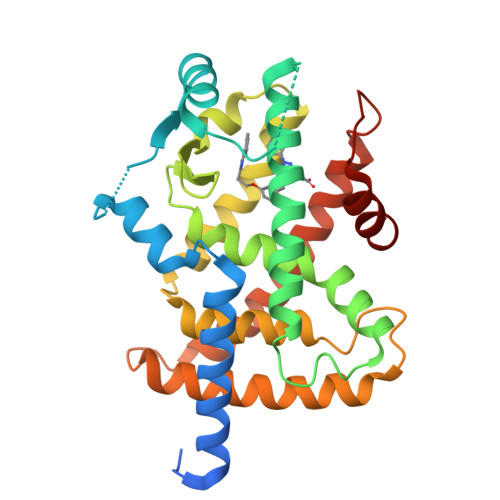

X-ray crystal structure of human ppar gamma with 2-(5-(3-(2-(5-methyl-2-phenyloxazol-4-yl)ethoxy)benzyl)-2-phenyl-2h-1,2,3-triazol-4-yl)acetic acid


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.27 Å
  • R-Value Free: 0.249
  • R-Value Work: 0.210
  • R-Value Observed: 0.212

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Design, synthesis and structure-activity relationships of azole acids as novel, potent dual PPAR alpha/gamma agonists.

Zhang, H.Ryono, D.E.Devasthale, P.Wang, W.O'Malley, K.Farrelly, D.Gu, L.Harrity, T.Cap, M.Chu, C.Locke, K.Zhang, L.Lippy, J.Kunselman, L.Morgan, N.Flynn, N.Moore, L.Hosagrahara, V.Zhang, L.Kadiyala, P.Xu, C.Doweyko, A.M.Bell, A.Chang, C.Muckelbauer, J.Zahler, R.Hariharan, N.Cheng, P.T.

(2009) Bioorg Med Chem Lett 19: 1451-1456

  • DOI: 10.1016/j.bmcl.2009.01.030
  • Primary Citation of Related Structures:
    3BC5

  • PubMed Abstract:
  • The design, synthesis and structure-activity relationships of a novel series of N-phenyl-substituted pyrrole, 1,2-pyrazole and 1,2,3-triazole acid analogs as PPAR ligands are outlined. The triazole acid analogs 3f and 4f were identified as potent dual PPARalpha/gamma agonists both in binding and functional assays in vitro ...

    The design, synthesis and structure-activity relationships of a novel series of N-phenyl-substituted pyrrole, 1,2-pyrazole and 1,2,3-triazole acid analogs as PPAR ligands are outlined. The triazole acid analogs 3f and 4f were identified as potent dual PPARalpha/gamma agonists both in binding and functional assays in vitro. The 3-oxybenzyl triazole acetic acid analog 3f showed excellent glucose and triglyceride lowering in diabetic db/db mice.


    Organizational Affiliation

    Metabolic Diseases Chemistry, Bristol-Myers Squibb Research and Development, Princeton, NJ 08543-5400, USA.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Peroxisome proliferator-activated receptor gammaA296Homo sapiensMutation(s): 0
Gene Names: PPARGNR1C3
UniProt & NIH Common Fund Data Resources
Find proteins for P37231 (Homo sapiens)
Explore P37231
Go to UniProtKB:  P37231
PHAROS:  P37231
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
ZAA (Subject of Investigation/LOI)
Query on ZAA

Download Ideal Coordinates CCD File
B [auth A](5-{3-[2-(5-methyl-2-phenyl-1,3-oxazol-4-yl)ethoxy]benzyl}-2-phenyl-2H-1,2,3-triazol-4-yl)acetic acid
C29 H26 N4 O4
QIGYDDWEDSMCSH-UHFFFAOYSA-N
 Ligand Interaction
Binding Affinity Annotations
IDSourceBinding Affinity
ZAA PDBBind:  3BC5 IC50: 5 (nM) from 1 assay(s)
Binding MOAD:  3BC5 IC50: 5 (nM) from 1 assay(s)
BindingDB:  3BC5 IC50: 5 (nM) from 1 assay(s)
EC50: 4 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.27 Å
  • R-Value Free: 0.249
  • R-Value Work: 0.210
  • R-Value Observed: 0.212
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 66.3α = 90
b = 66.3β = 90
c = 156.3γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment



Entry History

Deposition Data

  • Deposited Date: 2007-11-12
  • Released Date: 2008-11-18
  • Deposition Author(s): Muckelbauer, J.K.

Revision History  (Full details and data files)

  • Version 1.0: 2008-11-18
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2017-08-23
    Changes: Advisory, Data collection
