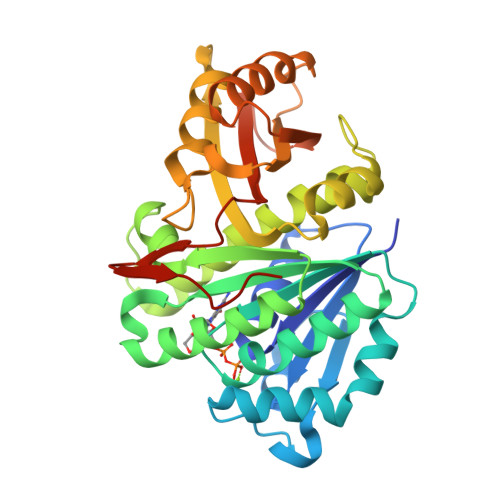

Aquifex aeolicus FtsZ with 8-morpholino-GTP

Experimental Data Snapshot

  • Resolution: 1.40 Å
  • R-Value Free: 0.184
  • R-Value Work: 0.137
  • R-Value Observed: 0.139

wwPDB Validation   3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.2 of the entry. See complete history


Probing FtsZ and tubulin with C8-substituted GTP analogs reveals differences in their nucleotide binding sites

Lappchen, T.Pinas, V.A.Hartog, A.F.Koomen, G.J.Schaffner-Barbero, C.Andreu, J.M.Trambaiolo, D.Lowe, J.Juhem, A.Popov, A.V.den Blaauwen, T.

(2008) Chem Biol 15: 189-199

  • DOI: https://doi.org/10.1016/j.chembiol.2007.12.013
  • Primary Citation of Related Structures:

  • PubMed Abstract:

    The cytoskeletal proteins, FtsZ and tubulin, play a pivotal role in prokaryotic cell division and eukaryotic chromosome segregation, respectively. Selective inhibitors of the GTP-dependent polymerization of FtsZ could constitute a new class of antibiotics, while several inhibitors of tubulin are widely used in antiproliferative therapy. In this work, we set out to identify selective inhibitors of FtsZ based on the structure of its natural ligand, GTP. We found that GTP analogs with small hydrophobic substituents at C8 of the nucleobase efficiently inhibit FtsZ polymerization, whereas they have an opposite effect on the polymerization of tubulin. The inhibitory activity of the GTP analogs on FtsZ polymerization allowed us to crystallize FtsZ in complex with C8-morpholino-GTP, revealing the binding mode of a GTP derivative containing a nonmodified triphosphate chain.

  • Organizational Affiliation

    Van 't Hoff Institute for Molecular Sciences, Bioorganic Chemistry, University of Amsterdam, Nieuwe Achtergracht 129, 1018 WS Amsterdam, The Netherlands.

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Cell division protein ftsZA [auth 1]338Aquifex aeolicusMutation(s): 0
Gene Names: ftsZ
Find proteins for O66809 (Aquifex aeolicus (strain VF5))
Explore O66809
Go to UniProtKB:  O66809
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO66809
Sequence Annotations
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
Query on 01G

Download Ideal Coordinates CCD File
C [auth 1]8-morpholin-4-ylguanosine 5'-(tetrahydrogen triphosphate)
C14 H23 N6 O15 P3
Query on MG

Download Ideal Coordinates CCD File
Binding Affinity Annotations
IDSourceBinding Affinity
01G PDBBind:  2R75 Kd: 714 (nM) from 1 assay(s)
Binding MOAD:  2R75 Kd: 714 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Resolution: 1.40 Å
  • R-Value Free: 0.184
  • R-Value Work: 0.137
  • R-Value Observed: 0.139
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 43.846α = 90
b = 74.177β = 95.08
c = 44.197γ = 90
Software Package:
Software NamePurpose
ADSCdata collection
MOSFLMdata reduction
SCALAdata scaling

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Revision History  (Full details and data files)

  • Version 1.0: 2008-07-22
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2023-08-30
    Changes: Data collection, Database references, Derived calculations, Refinement description
