2CKM

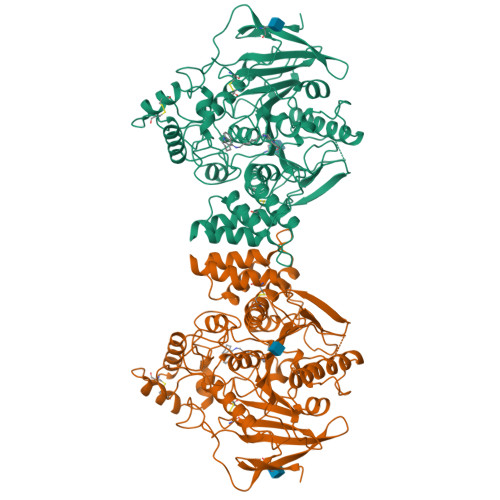

Torpedo californica acetylcholinesterase complexed with alkylene- linked bis-tacrine dimer (7 carbon linker)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.15 Å
  • R-Value Free: 0.249
  • R-Value Work: 0.211
  • R-Value Observed: 0.211

wwPDB Validation   3D Report Full Report


This is version 1.6 of the entry. See complete history


Literature

Complexes of alkylene-linked tacrine dimers with Torpedo californica acetylcholinesterase: Binding of Bis5-tacrine produces a dramatic rearrangement in the active-site gorge.

Rydberg, E.H.Brumshtein, B.Greenblatt, H.M.Wong, D.M.Shaya, D.Williams, L.D.Carlier, P.R.Pang, Y.P.Silman, I.Sussman, J.L.

(2006) J Med Chem 49: 5491-5500

  • DOI: 10.1021/jm060164b
  • Primary Citation of Related Structures:
    1ODC, 2CKM, 2CMF, 1UT6

  • PubMed Abstract:
  • The X-ray crystal structures were solved for complexes with Torpedo californica acetylcholinesterase of two bivalent tacrine derivative compounds in which the two tacrine rings were separated by 5- and 7-carbon spacers. The derivative with the 7-carbon spacer spans the length of the active-site gorge, making sandwich interactions with aromatic residues both in the catalytic anionic site (Trp84 and Phe330) at the bottom of the gorge and at the peripheral anionic site near its mouth (Tyr70 and Trp279) ...

    The X-ray crystal structures were solved for complexes with Torpedo californica acetylcholinesterase of two bivalent tacrine derivative compounds in which the two tacrine rings were separated by 5- and 7-carbon spacers. The derivative with the 7-carbon spacer spans the length of the active-site gorge, making sandwich interactions with aromatic residues both in the catalytic anionic site (Trp84 and Phe330) at the bottom of the gorge and at the peripheral anionic site near its mouth (Tyr70 and Trp279). The derivative with the 5-carbon spacer interacts in a similar manner at the bottom of the gorge, but the shorter tether precludes a sandwich interaction at the peripheral anionic site. Although the upper tacrine group does interact with Trp279, it displaces the phenyl residue of Phe331, thus causing a major rearrangement in the Trp279-Ser291 loop. The ability of this inhibitor to induce large-scale structural changes in the active-site gorge of acetylcholinesterase has significant implications for structure-based drug design because such conformational changes in the target enzyme are difficult to predict and to model.


    Organizational Affiliation

    Department of Structural Biology, Weizmann Institute of Science, Rehovot 76100, Israel.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
ACETYLCHOLINESTERASEA543Tetronarce californicaMutation(s): 0
Gene Names: ache
EC: 3.1.1.7
UniProt
Find proteins for P04058 (Tetronarce californica)
Explore P04058
Go to UniProtKB:  P04058
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
AA7
Query on AA7

Download Ideal Coordinates CCD File
B [auth A]N,N'-DI-1,2,3,4-TETRAHYDROACRIDIN-9-YLHEPTANE-1,7-DIAMINE
C33 H40 N4
ITZOKHKOFJOBFS-UHFFFAOYSA-N
 Ligand Interaction
NAG
Query on NAG

Download Ideal Coordinates CCD File
C [auth A], D [auth A]2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
AA7IC50 :  1.5   nM  PDBBind
AA7Kd:  0.00007699999696342275   nM  Binding MOAD
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.15 Å
  • R-Value Free: 0.249
  • R-Value Work: 0.211
  • R-Value Observed: 0.211
  • Space Group: P 31 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 111.884α = 90
b = 111.884β = 90
c = 137.413γ = 120
Software Package:
Software NamePurpose
CNSrefinement
DENZOdata reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2006-09-04
    Type: Initial release
  • Version 1.1: 2011-05-08
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2017-08-09
    Changes: Database references
  • Version 1.4: 2019-02-13
    Changes: Data collection, Derived calculations, Experimental preparation
  • Version 1.5: 2019-10-09
    Changes: Data collection, Derived calculations, Other
  • Version 1.6: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Derived calculations, Structure summary
