1S3L

Structural and Functional Characterization of a Novel Archaeal Phosphodiesterase


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free: 0.253
  • R-Value Work: 0.226
  • R-Value Observed: 0.226

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structural and functional characterization of a novel phosphodiesterase from Methanococcus jannaschii

Chen, S.Yakunin, A.F.Kuznetsova, E.Busso, D.Pufan, R.Proudfoot, M.Kim, R.Kim, S.-H.

(2004) J Biol Chem 279: 31854-31862

  • DOI: 10.1074/jbc.M401059200
  • Primary Citation of Related Structures:
    1S3N, 1S3M, 1S3L

  • PubMed Abstract:
  • Methanococcus jannaschii MJ0936 is a hypothetical protein of unknown function with over 50 homologs found in many bacteria and Archaea. To help define the molecular (biochemical and biophysical) function of MJ0936, we determined its crystal structure at 2 ...

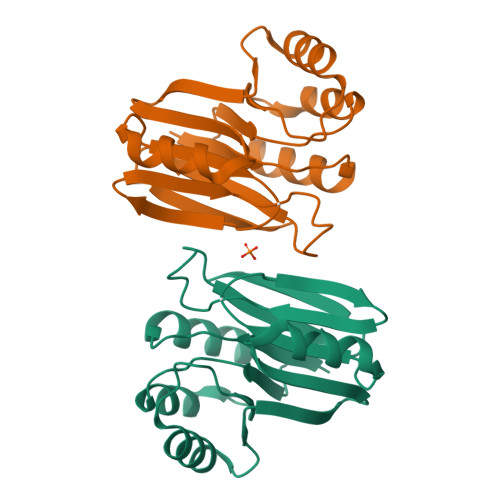

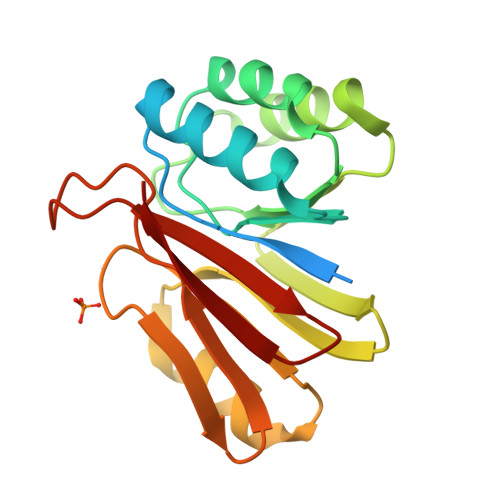

    Methanococcus jannaschii MJ0936 is a hypothetical protein of unknown function with over 50 homologs found in many bacteria and Archaea. To help define the molecular (biochemical and biophysical) function of MJ0936, we determined its crystal structure at 2.4-A resolution and performed a series of biochemical screens for catalytic activity. The overall fold of this single domain protein consists of a four-layered structure formed by two beta-sheets flanked by alpha-helices on both sides. The crystal structure suggested its biochemical function to be a nuclease, phosphatase, or nucleotidase, with a requirement for some metal ions. Crystallization in the presence of Ni(2+) or Mn(2+) produced a protein containing a binuclear metal center in the putative active site formed by a cluster of conserved residues. Analysis of MJ0936 against a panel of general enzymatic assays revealed catalytic activity toward bis-p-nitrophenyl phosphate, an indicator substrate for phosphodiesterases and nucleases. Significant activity was also found with two other phosphodiesterase substrates, thymidine 5'-monophosphate p-nitrophenyl ester and p-nitrophenylphosphorylcholine, but no activity was found for cAMP or cGMP. Phosphodiesterase activity of MJ0936 had an absolute requirement for divalent metal ions with Ni(2+) and Mn(2+) being most effective. Thus, our structural and enzymatic studies have identified the biochemical function of MJ0936 as that of a novel phosphodiesterase.


    Organizational Affiliation

    Department of Chemistry, University of California, Berkeley, California 94720, USA.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Hypothetical protein MJ0936A, B190Methanocaldococcus jannaschiiMutation(s): 0
EC: 3.1.4
UniProt
Find proteins for Q58346 (Methanocaldococcus jannaschii (strain ATCC 43067 / DSM 2661 / JAL-1 / JCM 10045 / NBRC 100440))
Explore Q58346
Go to UniProtKB:  Q58346
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
PO4
Query on PO4

Download Ideal Coordinates CCD File
D [auth B]PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
 Ligand Interaction
UNX
Query on UNX

Download Ideal Coordinates CCD File
C [auth A], E [auth B]UNKNOWN ATOM OR ION
X
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free: 0.253
  • R-Value Work: 0.226
  • R-Value Observed: 0.226
  • Space Group: I 41
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 83.722α = 90
b = 83.722β = 90
c = 149.472γ = 90
Software Package:
Software NamePurpose
CNSrefinement
HKL-2000data reduction
SCALEPACKdata scaling
CNSphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2004-08-10
    Type: Initial release
  • Version 1.1: 2008-04-29
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Derived calculations, Version format compliance
