189D

HYDRATION PATTERNS AND INTERMOLECULAR INTERACTIONS IN A-DNA CRYSTAL STRUCTURES. IMPLICATIONS FOR DNA RECOGNITION


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Observed: 0.152

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Hydration patterns and intermolecular interactions in A-DNA crystal structures. Implications for DNA recognition.

Eisenstein, M.Shakked, Z.

(1995) J Mol Biol 248: 662-678

  • DOI: https://doi.org/10.1006/jmbi.1995.0250
  • Primary Citation of Related Structures:
    187D, 188D, 189D

  • PubMed Abstract:

    Crystallographic studies of DNA fragments of the A and B conformations have shown that the structure and hydration of the DNA double helix depend both on the base sequence and the environment. Detailed analyses of solvent organization in DNA crystals and its role in intermolecular interactions have been reported mainly for B-DNA structures. We have determined the crystal structures of several isomorphous A-DNA octamers at resolutions from 1.8 to 2.5 A and refined them by the same procedure. Comparative analysis of five independently refined structures in terms of hydration and intermolecular interactions has been performed leading to the following findings. The A-DNA major groove is extensively hydrated and together with the hydration shells of the sugar-phosphate backbone can form an ordered network of fused polygons. The water structure of the phosphate backbone is less conserved than that of the grooves. Characteristic hydration patterns are associated with specific base sequences. The A-DNA minor groove provides sites for intermolecular contacts through hydrophobic and polar interactions. Well-ordered water molecules mediate interduplex interactions that involve either the grooves or the backbone, or both. The direct and water-mediated intermolecular interactions observed in the A-DNA crystal structures are relevant to various recognition motifs between DNA and other molecules. In particular, intermolecular interactions at the DNA minor groove are analogous to those observed in the recently reported crystal structures of complexes between the TATA-binding protein and the TATA-box.


  • Organizational Affiliation

    Department of Structural Biology, Weizmann Institute of Science, Rehovot, Israel.


Macromolecules

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains LengthOrganismImage
DNA (5'-D(*GP*GP*CP*CP*GP*GP*CP*C)-3')8N/A
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Observed: 0.152
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 42.04α = 90
b = 42.04β = 90
c = 25.09γ = 90
Software Package:
Software NamePurpose
NUCLSQrefinement

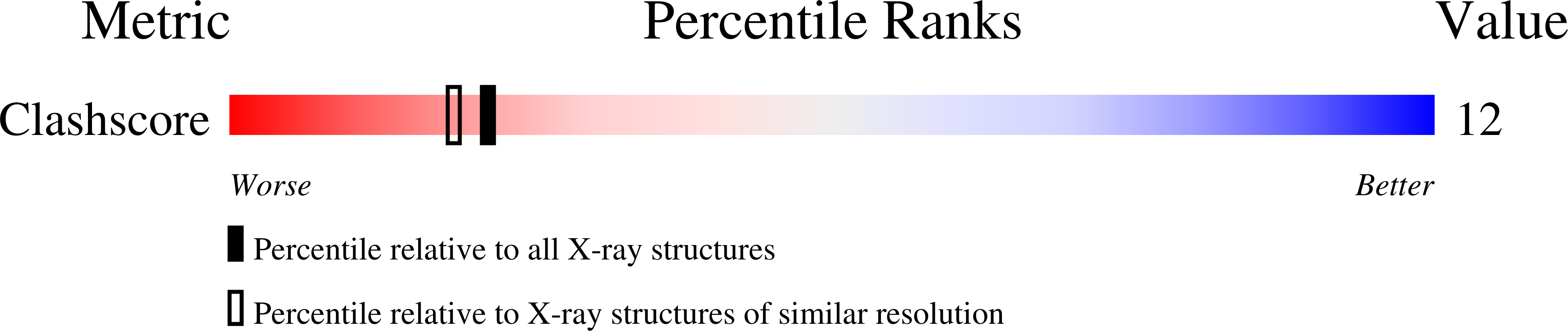

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 1995-02-07
    Type: Initial release
  • Version 1.1: 2008-05-22
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2024-02-07
    Changes: Data collection, Database references
