 9VR3 | pdb_00009vr3

Trapped reaction intermediate of the DNA Repair Enzyme Endonuclease VIII with DNA containing G opposite the crosslink


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:
    0.237 (Depositor), 0.246 (DCC)
  • R-Value Work:
    0.194 (Depositor), 0.210 (DCC)
  • R-Value Observed:
    0.196 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9VR3

This is version 1.1 of the entry. See complete history.

Literature

Unique structural mode for opposite-base tolerance in endonuclease VIII.

Bulgakov, N.A., Endutkin, A.V., MacCarthy, C., Shevtsov, M.B., Kapranov, I.A., Yudkina, A.V., Borshchevskiy, V.I., Zharkov, D.O.

(2026) DNA Repair (Amst) 167: 103962-103962

  • DOI: https://doi.org/10.1016/j.dnarep.2026.103962
  • Primary Citation Related Structures:
    9VR3, 9VR4, 9VRM

  • PubMed Abstract:

    Endonuclease VIII (Nei) is a DNA repair enzyme with broad substrate specificity for oxidative lesions, excising damaged bases paired with any normal base. The structural basis for this opposite-base tolerance is unknown, since only the structure of the Nei-DNA complex with A opposite the lesion had been determined. Here we address this question by solving crystal structures of Escherichia coli Nei conjugates with DNA duplexes containing C, G, or T opposite the lesion. While estranged purine bases are recognized by Nei via a non-specific hydrogen bond to N3, pyrimidine bases undergo a 180° rotation into the syn conformation. In this unique orientation, their Watson-Crick edge faces the major groove, forming no specific contacts with Nei. Substrates with 5-hydroxyuracil opposite T analogs carrying bulky C5-substitutions are cleaved by Nei less efficiently, consistent with the intrahelical location of the C5-C6 edge of the estranged pyrimidine bases. We have also identified several hydrogen bond networks within the Nei molecule that may facilitate accommodation of different DNA structures and stabilize the catalytic conformation of the enzyme. The mechanism of opposite-base tolerance through pyrimidine flipping is unprecedented among DNA glycosylases and may allow Nei to recognize a wide spectrum of oxidative lesions.


  • Organizational Affiliation:
    • SB RAS Institute of Chemical Biology and Fundamental Medicine, 8 Lavrentieva Ave., Novosibirsk, 630090, Russia; Novosibirsk State University, 2 Pirogova St, Novosibirsk, 630090, Russia.

Macromolecule Content

  • Total Structure Weight: 38.1 kDa
  • Atom Count: 2,806
  • Modeled Residue Count: 277
  • Deposited Residue Count: 288
  • Unique protein chains: 1
  • Unique nucleic acid chains: 2

Macromolecules


Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

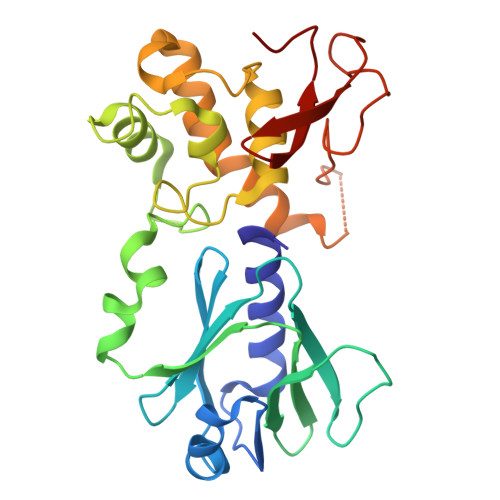

Endonuclease 8C [auth A]262Escherichia coli BL21Mutation(s): 0
Gene Names: nei
EC: 3.2.2 (PDB Primary Data), 4.2.99.18 (PDB Primary Data)
UniProt
Find proteins for A0A024L4H5 (Escherichia coli)
Explore A0A024L4H5
Go to UniProtKB:  A0A024L4H5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A024L4H5
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  Sequence
Entity ID: 1
MoleculeChains LengthOrganismImage

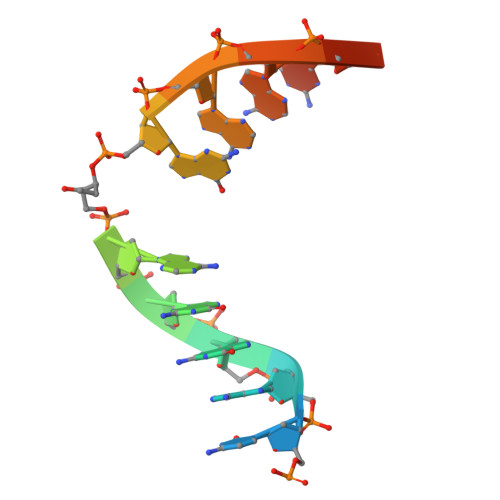

DNA (5'-D(P*CP*AP*GP*GP*AP*(PED)P*GP*AP*AP*G)-3')A [auth C]13synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  Sequence
Entity ID: 2
MoleculeChains LengthOrganismImage

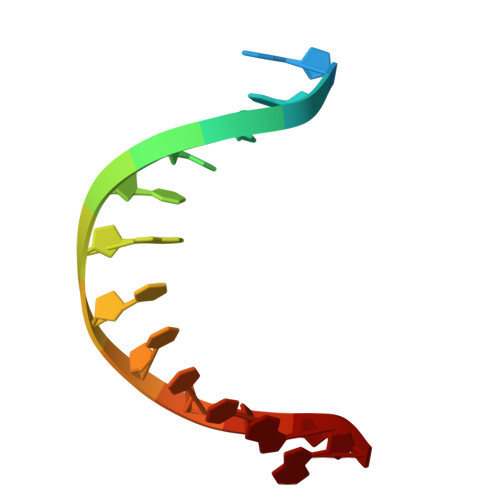

DNA (5'-D(P*GP*CP*TP*TP*CP*GP*TP*CP*CP*TP*GP*G)-3')13synthetic construct
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:  0.237 (Depositor), 0.246 (DCC)
  • R-Value Work:  0.194 (Depositor), 0.210 (DCC)
  • R-Value Observed: 0.196 (Depositor)
Space Group: P 43 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 77.027α = 90
b = 77.027β = 90
c = 164.11γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Russian Science FoundationRussian Federation21-64-00017p

Revision History  (Full details and data files)

  • Version 1.0: 2026-10-07
    Type: Initial release
  • Version 1.1: 2026-10-14
    Changes: Database references
