9QKA | pdb_00009qka

NCS-1 bound to XChem ligand 4

PDB DOI: https://doi.org/10.2210/pdb9QKA/pdb

Classification: METAL BINDING PROTEIN
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21
Mutation(s): No

Deposited: 2025-03-19 Released: 2026-09-16
Deposition Author(s): Munoz-Reyes, D., Sanchez-Barrena, M.J.
Funding Organization(s): Ministerio de Ciencia e Innovacion (MCIN)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.82 Å
R-Value Free:
0.278 (Depositor), 0.275 (DCC)
R-Value Work:
0.241 (Depositor), 0.241 (DCC)
R-Value Observed:
0.243 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9QKA

This is version 1.0 of the entry. See complete history.

Literature

A resource-efficient structure-based workflow for fragment progression enables parallel hit discovery and validation of functionally diverse modulators of NCS-1 protein-protein interactions

Munoz-Reyes, D., Fieseler, K.K., Winokan, M., Golding, M.N., Capkin, E., Ferla, M., Perez-Suarez, S., Tomlinson, C.W., Marples, P.G., Miro-Rodriguez, C., Aguado, L., Mansilla, A., Fearon, D., Thompson, W.A., von Delft, F., Sanchez-Barrena, M.J.

(2026) Chem Sci

DOI: https://doi.org/10.1039/D6SC02031C

Macromolecule Content

Total Structure Weight: 46.05 kDa
Atom Count: 3,222
Modeled Residue Count: 370
Deposited Residue Count: 380
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

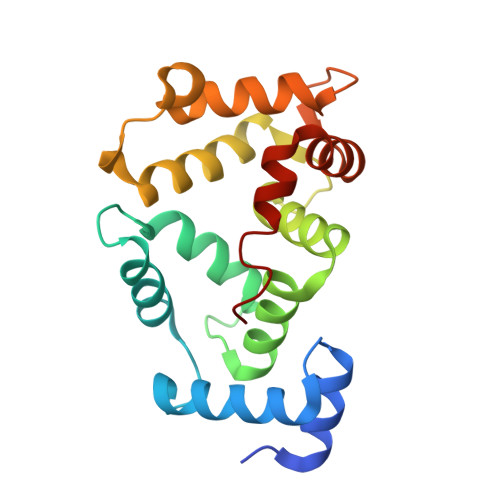

Neuronal calcium sensor 1	A [auth B], B [auth A]	190	Homo sapiens	Mutation(s): 0 Gene Names: NCS1, FLUP, FREQ
UniProt & NIH Common Fund Data Resources
Find proteins for P62166 (Homo sapiens) Explore P62166 Go to UniProtKB: P62166
PHAROS: P62166 GTEx: ENSG00000107130
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P62166
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1I7N( Subject of Investigation/LOI) Query on A1I7N Download:Ideal Coordinates CCD File SDF format, chain P [auth A] SDF format, chain G [auth B] MOL2 format, chain P [auth A] MOL2 format, chain G [auth B] mmCIF format, chain P [auth A] mmCIF format, chain G [auth B]	G [auth B], P [auth A]	~{N}-[2,4-bis(fluoranyl)-3-methyl-phenyl]-2-methyl-5-piperidin-1-ylsulfonyl-furan-3-carboxamide C₁₈ H₂₀ F₂ N₂ O₄ S GPLFJUVOKHJOGM-UHFFFAOYSA-N		Interactions Focus chain G [auth B] Focus chain P [auth A] Interactions & Density Focus chain G [auth B] Focus chain P [auth A]
P6G Query on P6G Download:Ideal Coordinates CCD File SDF format, chain R [auth A] SDF format, chain H [auth B] MOL2 format, chain R [auth A] MOL2 format, chain H [auth B] mmCIF format, chain R [auth A] mmCIF format, chain H [auth B]	H [auth B], R [auth A]	HEXAETHYLENE GLYCOL C₁₂ H₂₆ O₇ IIRDTKBZINWQAW-UHFFFAOYSA-N		Interactions Focus chain H [auth B] Focus chain R [auth A] Interactions & Density Focus chain H [auth B] Focus chain R [auth A]
1PE Query on 1PE Download:Ideal Coordinates CCD File SDF format, chain Q [auth A] SDF format, chain O [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain O [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain O [auth A]	O [auth A], Q [auth A]	PENTAETHYLENE GLYCOL C₁₀ H₂₂ O₆ JLFNLZLINWHATN-UHFFFAOYSA-N		Interactions Focus chain O [auth A] Focus chain Q [auth A] Interactions & Density Focus chain O [auth A] Focus chain Q [auth A]
ACT Query on ACT Download:Ideal Coordinates CCD File SDF format, chain N [auth A] SDF format, chain F [auth B] MOL2 format, chain N [auth A] MOL2 format, chain F [auth B] mmCIF format, chain N [auth A] mmCIF format, chain F [auth B]	F [auth B], N [auth A]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain F [auth B] Focus chain N [auth A] Interactions & Density Focus chain F [auth B] Focus chain N [auth A]
CA Query on CA Download:Ideal Coordinates CCD File SDF format, chain L [auth A] SDF format, chain K [auth A] SDF format, chain J [auth A] SDF format, chain E [auth B] SDF format, chain D [auth B] SDF format, chain C [auth B] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] MOL2 format, chain J [auth A] MOL2 format, chain E [auth B] MOL2 format, chain D [auth B] MOL2 format, chain C [auth B] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A] mmCIF format, chain J [auth A] mmCIF format, chain E [auth B] mmCIF format, chain D [auth B] mmCIF format, chain C [auth B]	C [auth B] D [auth B] E [auth B] J [auth A] K [auth A] C [auth B], D [auth B], E [auth B], J [auth A], K [auth A], L [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain C [auth B] Focus chain D [auth B] Focus chain E [auth B] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Interactions & Density Focus chain C [auth B] Focus chain D [auth B] Focus chain E [auth B] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A]
NA Query on NA Download:Ideal Coordinates CCD File SDF format, chain M [auth A] SDF format, chain I [auth B] MOL2 format, chain M [auth A] MOL2 format, chain I [auth B] mmCIF format, chain M [auth A] mmCIF format, chain I [auth B]	I [auth B], M [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain I [auth B] Focus chain M [auth A] Interactions & Density Focus chain I [auth B] Focus chain M [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.82 Å
R-Value Free: 0.278 (Depositor), 0.275 (DCC)
R-Value Work: 0.241 (Depositor), 0.241 (DCC)
R-Value Observed: 0.243 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 51.209	α = 90
b = 55.939	β = 99.795
c = 80.401	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
PHASER	phasing
Coot	model building

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-16

Deposition Author(s):

Munoz-Reyes, D.

Sanchez-Barrena, M.J.

Funding Organization	Location	Grant Number
Ministerio de Ciencia e Innovacion (MCIN)	Spain	PID2022-137331OB-C31

Revision History (Full details and data files)

Version 1.0: 2026-09-16
Type: Initial release
