3O3Q

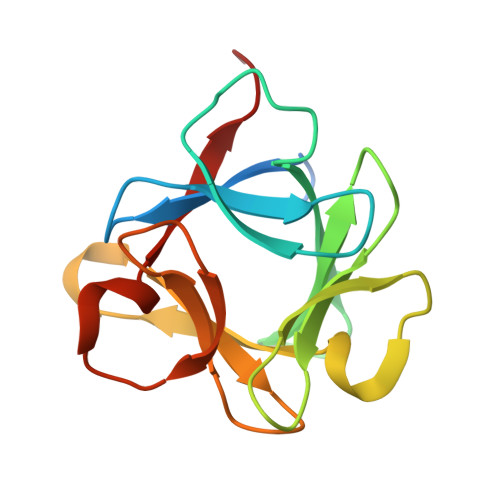

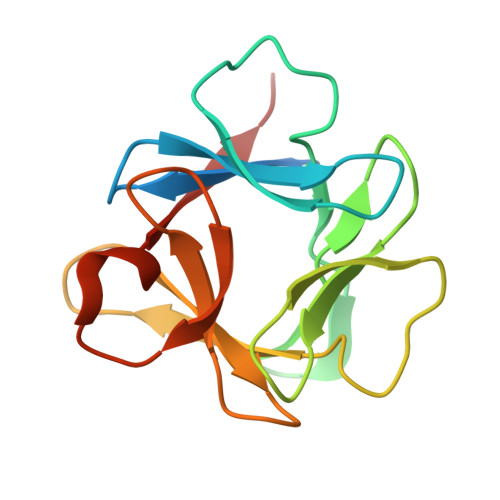

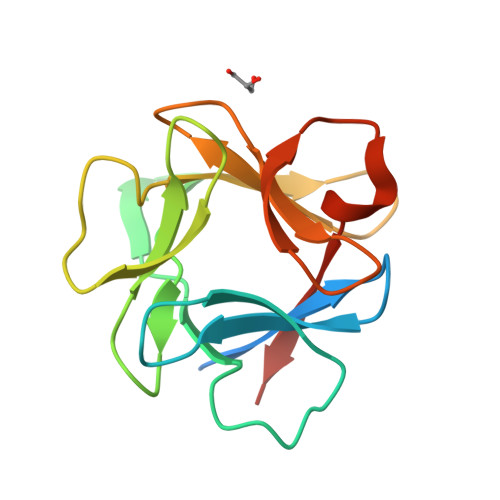

Crystal structure of "L44F/M67I/L73V/A103G/deletion 104-106/F108Y/V109L/L111I/C117V/R119G/deletion 120-122" mutant form of Human acidic fibroblast growth factor

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free: 0.203
  • R-Value Work: 0.170
  • R-Value Observed: 0.172

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history.


Literature

A polypeptide "building block"top-down symmetric deconstruction".

Lee, J., Blaber, S.I., Dubey, V.K., Blaber, M.

(2011) J Mol Biol 407: 744-763

  • DOI: 10.1016/j.jmb.2011.02.002
  • Primary Citation of Related Structures:
    3O3Q

  • PubMed Abstract:

    • Fibroblast growth factor-1, a member of the 3-fold symmetric β-trefoil fold, was subjected to a series of symmetric constraint mutations in a process termed "top-down symmetric deconstruction." The mutations enforced a cumulative exact 3-fold symmetr ...

    Fibroblast growth factor-1, a member of the 3-fold symmetric β-trefoil fold, was subjected to a series of symmetric constraint mutations in a process termed "top-down symmetric deconstruction." The mutations enforced a cumulative exact 3-fold symmetry upon symmetrically equivalent positions within the protein and were combined with a stability screen. This process culminated in a β-trefoil protein with exact 3-fold primary-structure symmetry that exhibited excellent folding and stability properties. Subsequent fragmentation of the repeating primary-structure motif yielded a 42-residue polypeptide capable of spontaneous assembly as a homotrimer, producing a thermostable β-trefoil architecture. The results show that despite pronounced reduction in sequence complexity, pure symmetry in the design of a foldable, thermostable β-trefoil fold is possible. The top-down symmetric deconstruction approach provides a novel alternative means to successfully identify a useful polypeptide "building block" for subsequent "bottom-up" de novo design of target protein architecture.

    Organizational Affiliation:

    Department of Biomedical Sciences, College of Medicine, Florida State University, Tallahassee, FL 32306-4300, USA.



Macromolecules
Find similar proteins by:
(by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Heparin-binding growth factor 1A, B, C, D140Homo sapiensMutation(s): 9
Gene Names: FGF1, FGFA
Find proteins for P05230 (Homo sapiens)
Explore P05230
Go to UniProtKB:  P05230
NIH Common Fund Data Resources
PHAROS  P05230
GTEx  ENSG00000113578
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL
Download Ideal Coordinates CCD File
B, D
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N		 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free: 0.203
  • R-Value Work: 0.170
  • R-Value Observed: 0.172
  • Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 46.92α = 64.94
b = 56.89β = 89.76
c = 61.92γ = 71.27
Software Package:
Software NamePurpose
PHENIXrefinement
CNSrefinement
HKL-2000data collection
HKL-2000data reduction
HKL-2000data scaling
CNSphasing

Structure Validation

View Full Validation Report


View more in-depth experimental data

Entry History

Deposition Data

  • Deposited Date: 2010-07-25
  • Released Date: 2011-02-23
    • Deposition Author(s): Lee, J., Blaber, M.

Revision History

  • Version 1.0: 2011-02-23
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2012-06-20
    Changes: Database references
  • Version 1.3: 2019-07-17
    Changes: Data collection, Refinement description
