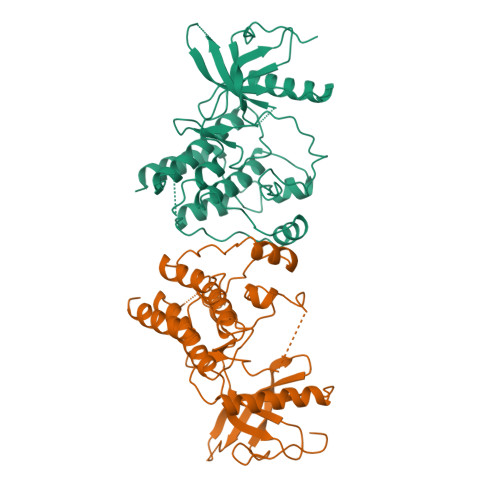

Biological Assembly 1

 3D View: Structure | Electron Density

Global Symmetry: Cyclic - C2  (3D View)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 70.62 kDa
• Atom Count: 4586
• Residue Count: 550
• Unique protein chains: 1

1FGK

CRYSTAL STRUCTURE OF THE TYROSINE KINASE DOMAIN OF FIBROBLAST GROWTH FACTOR RECEPTOR 1

• DOI: 10.2210/pdb1FGK/pdb

• Classification: PHOSPHOTRANSFERASE
• Organism(s): Homo sapiens
• Expression System: unidentified baculovirus
• Mutation(s): Yes


• Deposited: 1997-02-08 Released: 1997-07-23
• Deposition Author(s): Mohammadi, M., Schlessinger, J., Hubbard, S.R.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free: 0.261
• R-Value Work: 0.213
• R-Value Observed: 0.213

Literature

Structure of the FGF receptor tyrosine kinase domain reveals a novel autoinhibitory mechanism.

Mohammadi, M., Schlessinger, J., Hubbard, S.R.

(1996) Cell 86: 577-587

• PubMed: 8752212
• DOI: 10.1016/s0092-8674(00)80131-2
• Primary Citation of Related Structures:
  1FGK


• PubMed Abstract:


The crystal structure of the tyrosine kinase domain of fibroblast growth factor receptor 1 (FGFR1K) has been determined in its unliganded form to 2.0 angstroms resolution and in complex with with an ATP analog to 2.3 angstrosms A resolution. Several features distinguish the structure of FGFR1K from that of the tyrosine kinase domain of the insulin receptor. Residues in the activation loop of FGFR1K appear to interfere with substrate peptide binding but not with ATP binding, revealing a second and perhaps more general autoinhibitory mechanism for receptor tyrosine kinases. In addition, a dimeric form of FGFR1K observed in the crystal structure may provide insights into the molecular mechanisms by which FGF receptors are activated. Finally, the structure provides a basis for rationalizing the effects of kinase mutations in FGF receptors that lead to developmental disorders in nematodes and humans.

---

Organizational Affiliation:

Department of Pharmacology, New York University Medical Center, New York 10016, USA.

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
FGF RECEPTOR 1	A, B	310	Homo sapiens	Mutation(s): 1  Gene Names: FGFR1, BFGFR, CEK, FGFBR, FLG, FLT2, HBGFR EC: 2.7.1.112 (PDB Primary Data), 2.7.10.1 (UniProt)
Find proteins for P11362 (Homo sapiens) Explore P11362  Go to UniProtKB:  P11362
NIH Common Fund Data Resources
PHAROS  P11362 GTEx  ENSG00000077782

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free: 0.261
• R-Value Work: 0.213
• R-Value Observed: 0.213
• Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 208.35	α = 90
b = 57.78	β = 107.23
c = 65.57	γ = 90

Software Package:

Software Name	Purpose
MLPHARE	phasing
X-PLOR	refinement
DENZO	data reduction
SCALEPACK	data scaling

Structure Validation

Entry History

Deposition Data

• Deposited Date: 1997-02-08
• Released Date: 1997-07-23
Deposition Author(s): Mohammadi, M., Schlessinger, J., Hubbard, S.R.

Revision History

• Version 1.0: 1997-07-23
  Type: Initial release

• Version 1.1: 2008-03-24
  Changes: Version format compliance
• Version 1.2: 2011-07-13
  Changes: Version format compliance
